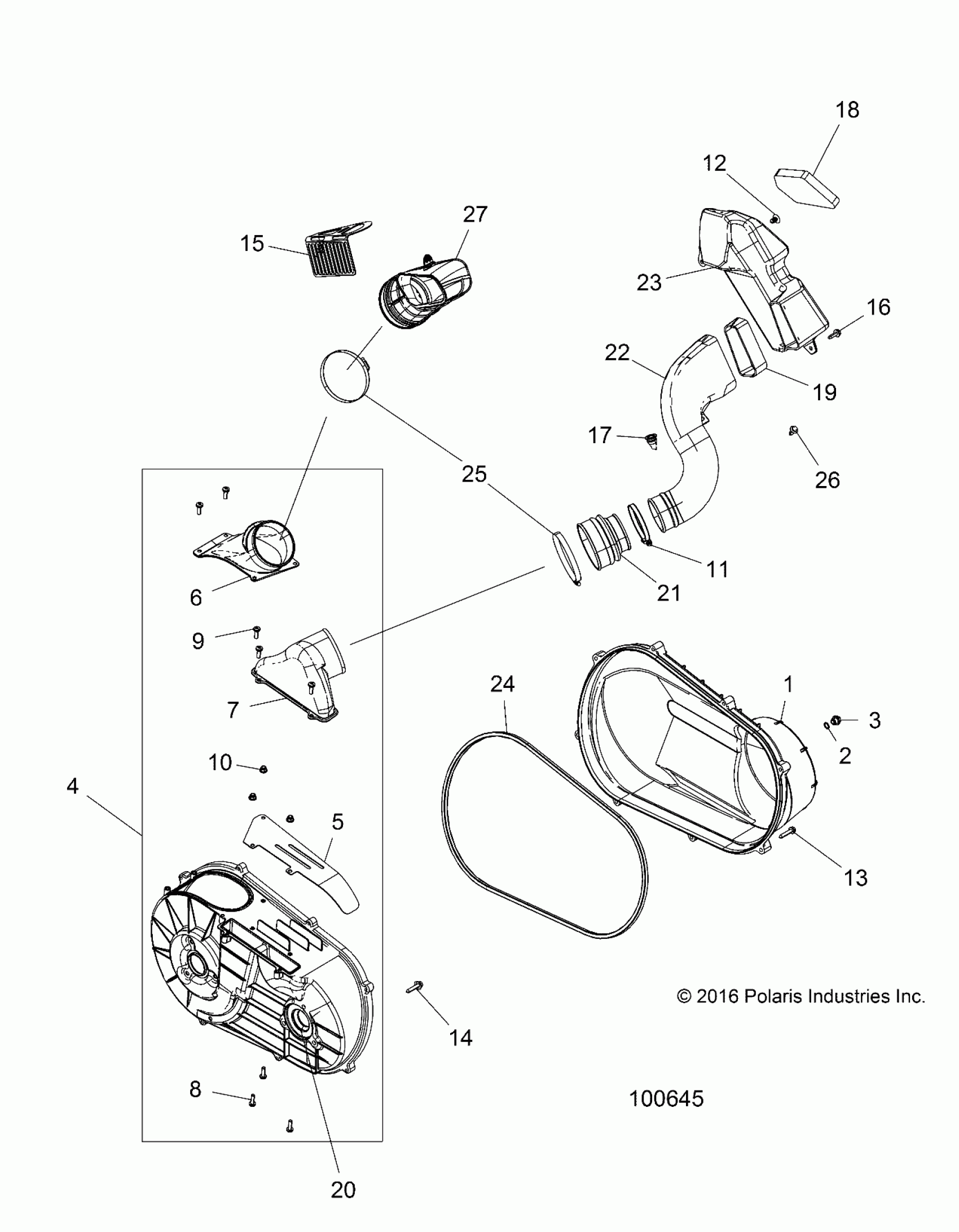

Polaris ACE 900 EPS XC (R05) - A19DCE87AK DRIVE TRAIN, CLUTCH COVER AND DUCTING - A19DCE87AK (100645) Diagram

#

Description
Price

1

ASM., COVER, CLUTCH, OUTER [INCL. COVER, 2,3]

2634179

$175.99

2

O RING-.364X.504X.07

5410542

Unavailable

3

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

4

ASM-COVER,CLUTCH,INNER [INCL. 4-10]

2634863

$159.99

5

BRKT-GUARD,CLUTCH COVER

5256223

$35.99

6

DUCT-CLUTCH,AIR OUTLET

5450846

$39.99

7

DUCT-CLUTCH,AIR IN

5450051

$43.99

8

SCR-M6X1.0X20MM,TX,PH,8.8-B

7518546

$3.19

9

SCR-#14X3/4 HI/LO-PH-PN TRX-M

7519205

$1.59

10

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

11

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

12

CLIP-PLASTIC DART, NYLON

7670088

$1.59

13

SCREW

7519849

$3.19

14

ASM., BOLT/WASHER

7519278

$4.79

15

BRACKET, SCREEN, BELT

5261811

$27.99

16

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

17

PLUG-DRAIN

5414472

$5.59

18

FILTER, INTAKE, FOAM

5814026

$12.79

19

SEAL, FOAM

5814033

$11.99

20

SEAL-COVER,PTO

5813708

$23.99

21

BOOT-CLUTCH,INLET

5415544

$14.39

22

DUCT-CLUTCH,AIR IN

5452289

$51.99

23

BOX, INTAKE, CLUTCH,LH

5450727

$71.99

24

SEAL, OUTER

5521831

Unavailable

25

CLAMP-WORM DRIVE,3.69 DIA

7081626

$7.99

26

Rivet

7661855

$1.49

27

HOSE-CLUTCH,AIR OUTLET

5452444

$39.99
