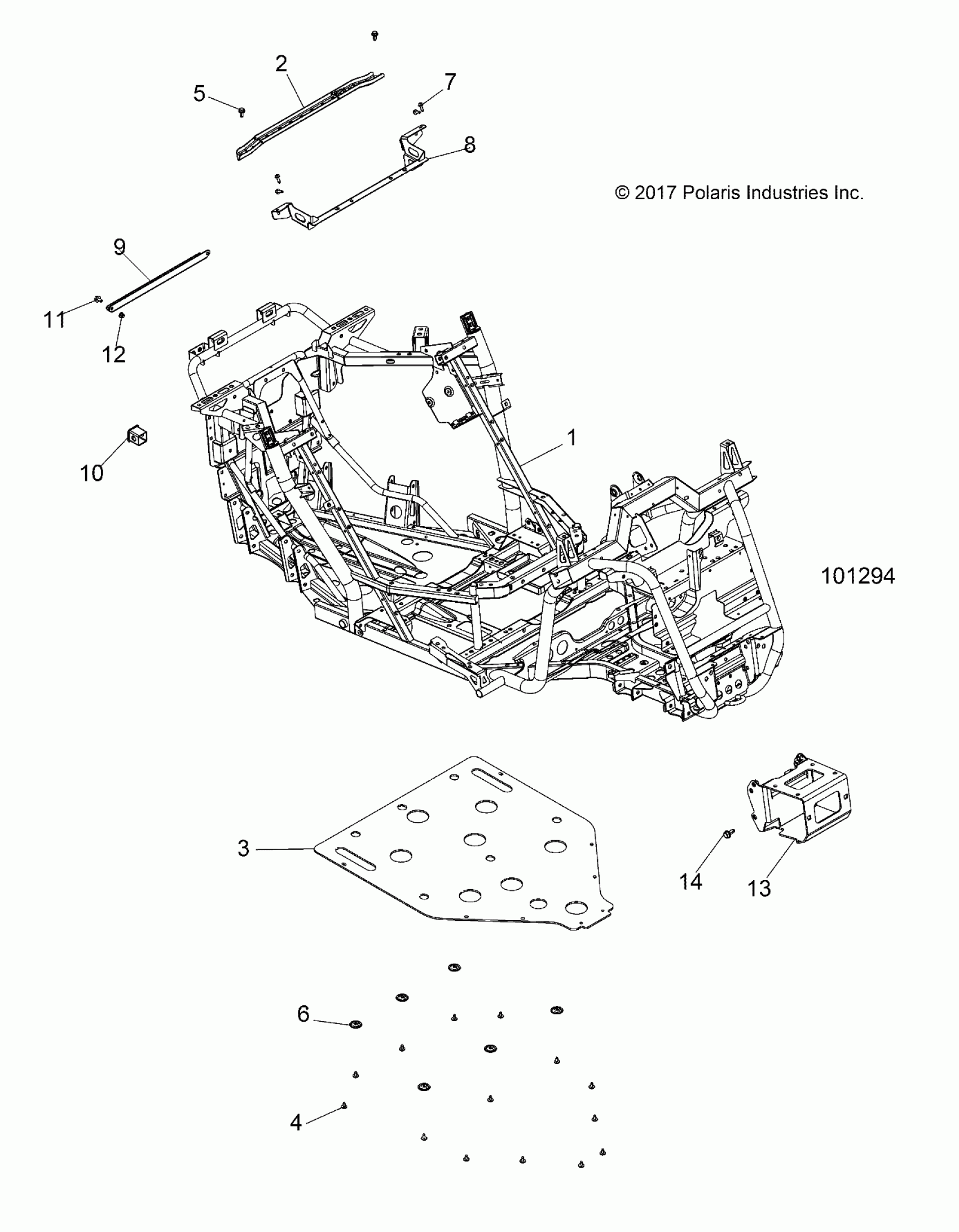

Polaris ACE 900 EPS XC (R05) - A19DCE87AK CHASSIS, MAIN FRAME AND SKID PLATE - A19DCE87AK (101294) Diagram

#

Description

Price

1

WELD-MAIN FRAME,ACE 900,M.BLK

1023344-458

Unavailable

2

BRKT-REAR,BRACE,E-COAT

5263745-329

$39.99

3

PLATE, SKID

5813900

$103.99

4

SCREW

7518936

$3.99

5

BOLT

7518555

$2.39

6

WASHER-SKID PLATE

7556065

$4.79

7

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

8

WELD-SUPPORT,AIRBOX,E-COAT

1021540-329

$83.99

9

BRKT-REAR,ACE,ECOAT

5263283-329

$47.99

10

PLUG-HITCH,BLK

5453632-070

$8.79

11

SCR-HXFL-M8X1.25X25 8.8 ZODP30

7519243

$3.99

12

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

13

ASM-WINCH MT,ABW

1022610

$149.59

14

SCR-HXFL-M8X1.25X25 8.8 ZODP30

7519243

$3.99
