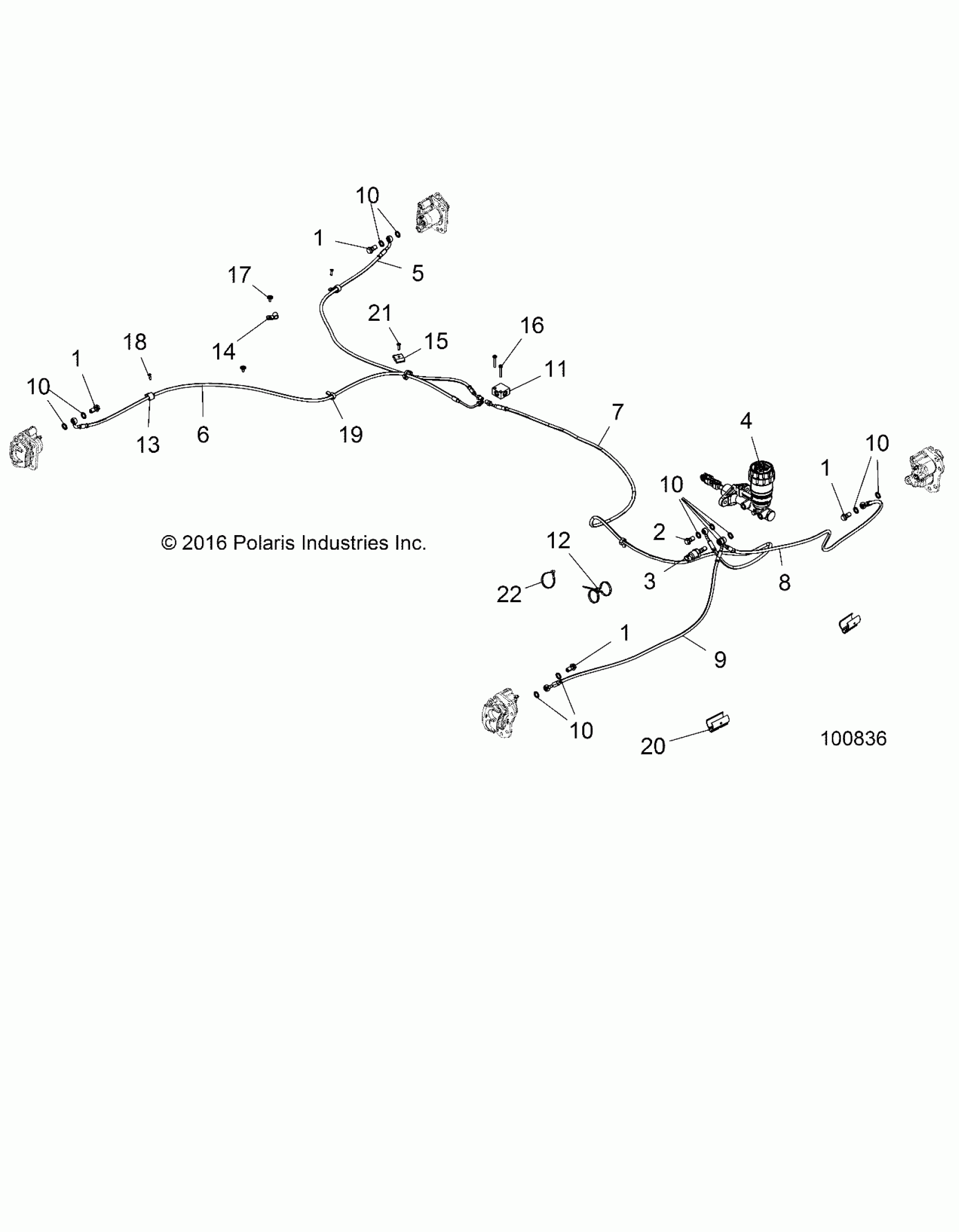

Polaris ACE 900 EPS XC (R05) - A19DCE87AK BRAKES, BRAKE LINES AND MASTER CYLINDER - A19DCE87AK (100836) Diagram

#

Description
Price

1

BOLT, BANJO

1910499

$5.59

1

BOLT, BANJO

1910499

$5.59

1

BOLT, BANJO

1910499

$5.59

1

BOLT, BANJO

1910499

$5.59

2

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.99

3

SWITCH-BRK,M10X1.25,DBL,SEALED

4014225

$87.99

4

ASM-M/CYL,TANDEM,11/16,FLG

1912714

$151.99

5

LINE-BRK,RL,45,20F,70B,180,JF

1912717

$71.99

6

LINE-BRK,RR,52,90F,70B,135,JF

1912718

$75.99

7

LINE-BRK,MCT,64,45B,20F,270,JF

1912681

$75.99

8

LINE-BRK,FL,40,45B,20B,75,JF

1912719

$63.99

9

LINE-BRK,FR,30,20B,20B,220,JF

1912720

$67.99

10

SEAL

5413212

$4.79

10

SEAL

5413212

$4.79

10

SEAL

5413212

$4.79

10

SEAL

5413212

$4.79

10

SEAL

5413212

$4.79

11

FITTING-TEE,BRAKE

7052293

$59.99

12

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

13

CLAMP, CABLE

7080499

$5.59

14

CLAMP-HOSE,.312DIA,VINYL COAT

7080683

$2.39

15

CLIP, RETAINING, DUEL

7670126

$4.79

16

SCREW

7512025

$4.79

17

Screw

7512084

$1.49

18

Rivet

7621323

$1.49

19

Clip

7670102

$2.39

20

RETAINER-BRAKE LINE,1"

5439192

$1.59

21

Screw

7517756

$1.49

22

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39
