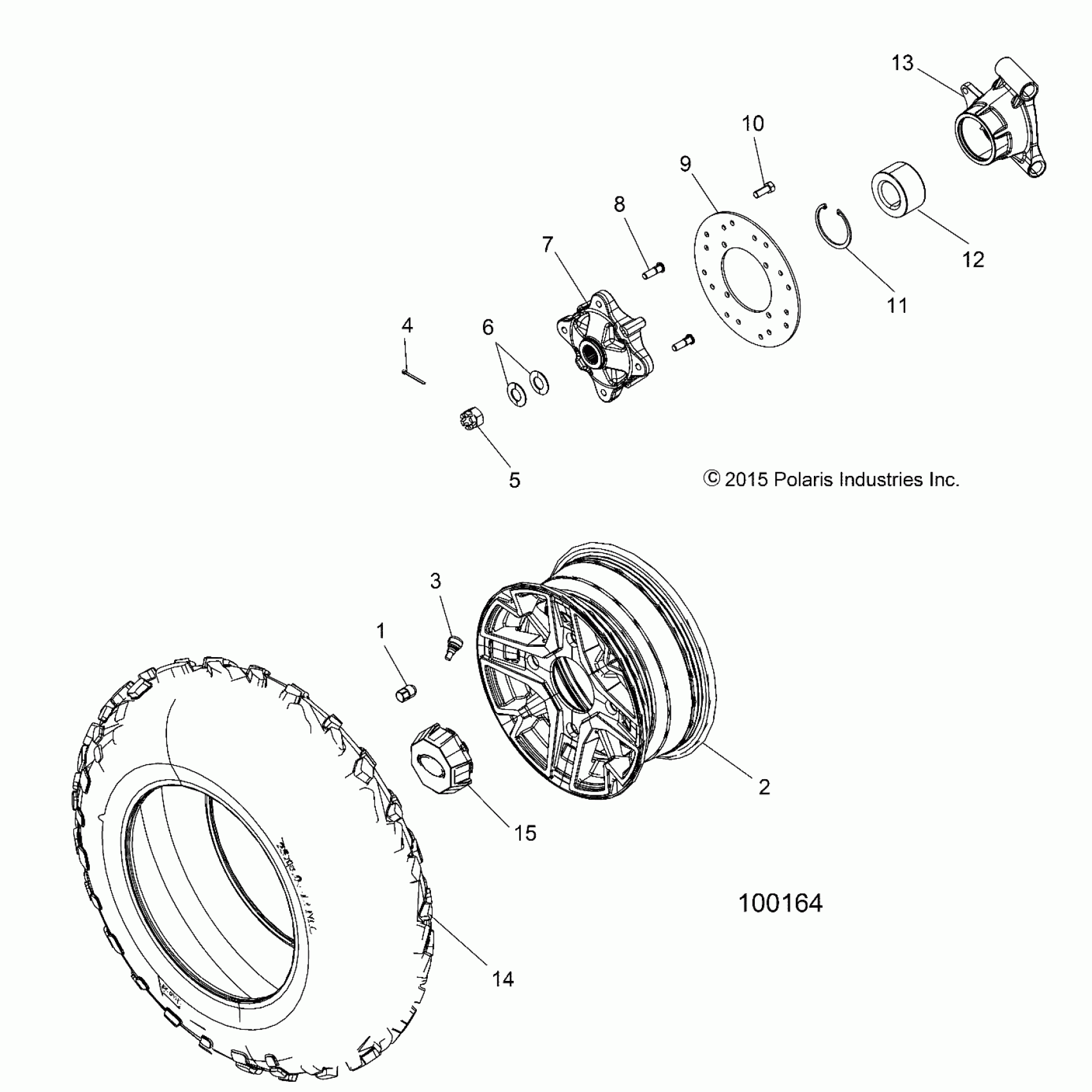

Polaris ACE 900 EFI EPS (R10) - A16DAE87AL WHEELS, REAR - A16DAE87AL (100164) Diagram

#

Description
Price

1

NUT, WHEEL

7547309

$3.59

2

RIM-REAR,CAST,12X5.5,SOLID.BLK

1522483-458

$125.99

3

VALVE-RIM

1525017

$5.59

4

PIN, COTTER

7661404

$4.79

5

NUT, CASTLE

7547337

$1.99

6

WASHER, CONE

7555796

$7.99

7

HUB, WHEEL, REAR

5139163

Unavailable

8

STUD

7518378

$1.59

9

DISC, BRAKE, REAR

5248250

$75.99

10

BOLT

7519343

$4.79

11

RING, RETAINING

7710440

$10.39

12

BEARING, BALL

3514635

$39.99

12

BEARING-WHEEL,HD,40X74X40MM [OPTIONAL]

3515087

$63.99

13

CARRIER, BEARING, LH

5138501

$251.73

13

CARRIER, BEARING, RH

5138502

$251.73

14

TIRE-25X10-12,POLARIS NS388

5415516

Unavailable

15

CAP, RIM

1521954

$31.99
