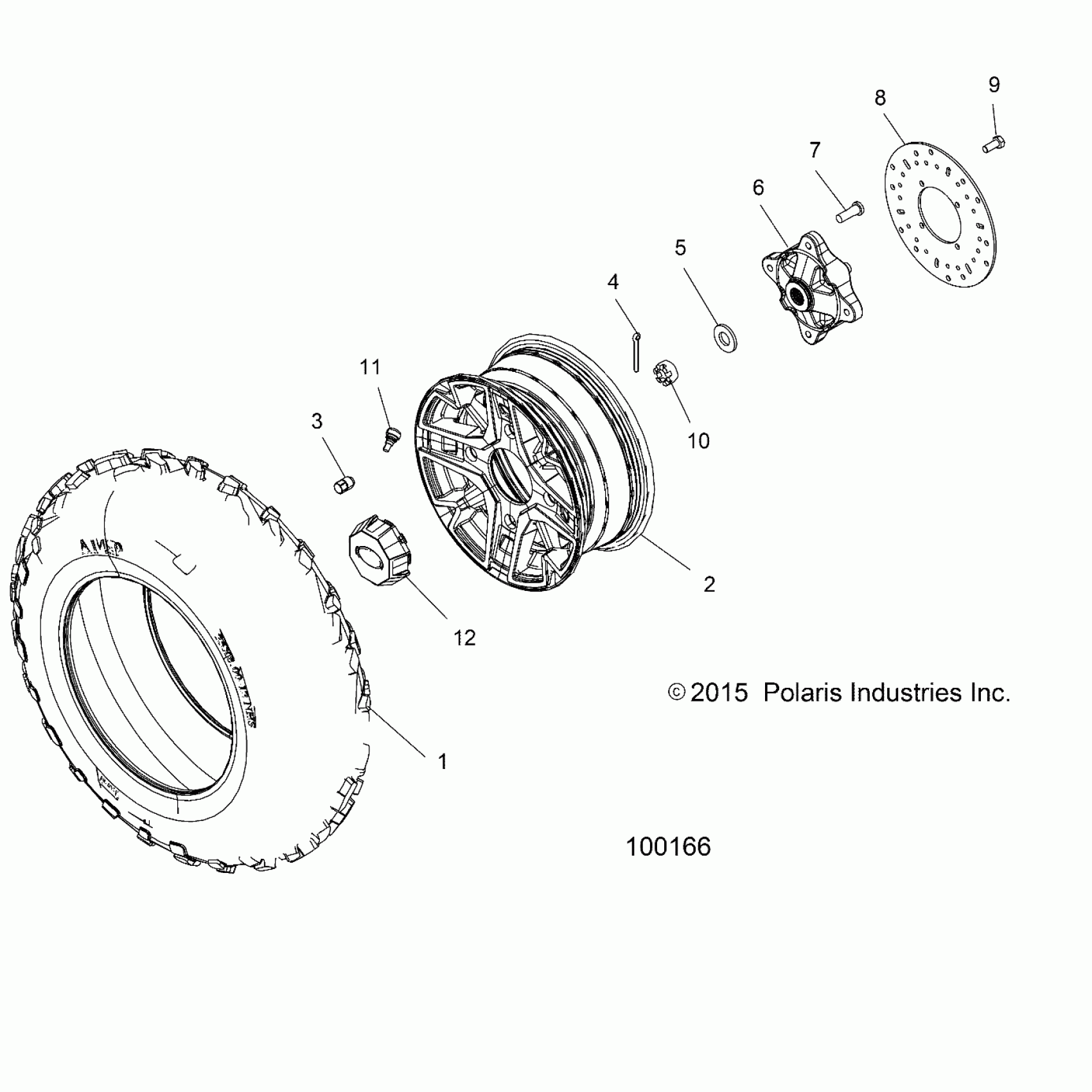

Polaris ACE 900 EFI EPS (R10) - A16DAE87AL WHEELS, FRONT TIRE and BRAKE DISC - A16DAE87AL (100166) Diagram

#

Description
Price

1

TIRE-25X8-12,POLARIS NS388

5415517

Unavailable

2

RIM-FRONT,CAST,12X5,SOLID,BLK

1522484-458

Unavailable

3

NUT, WHEEL

7547309

$3.59

4

PIN, COTTER

7661404

$4.79

5

WASHER

7556004

$7.19

6

HUB, WHEEL

5134310

Unavailable

7

STUD

7518378

$1.59

8

DISC-BRAKE,8.95 OD,.158

5244314

$75.99

9

BOLT

7512325

$2.39

10

NUT, SLOTTED

7542810

$3.19

11

VALVE-RIM

1525017

$5.59

12

CAP, RIM

1521954

$31.99
