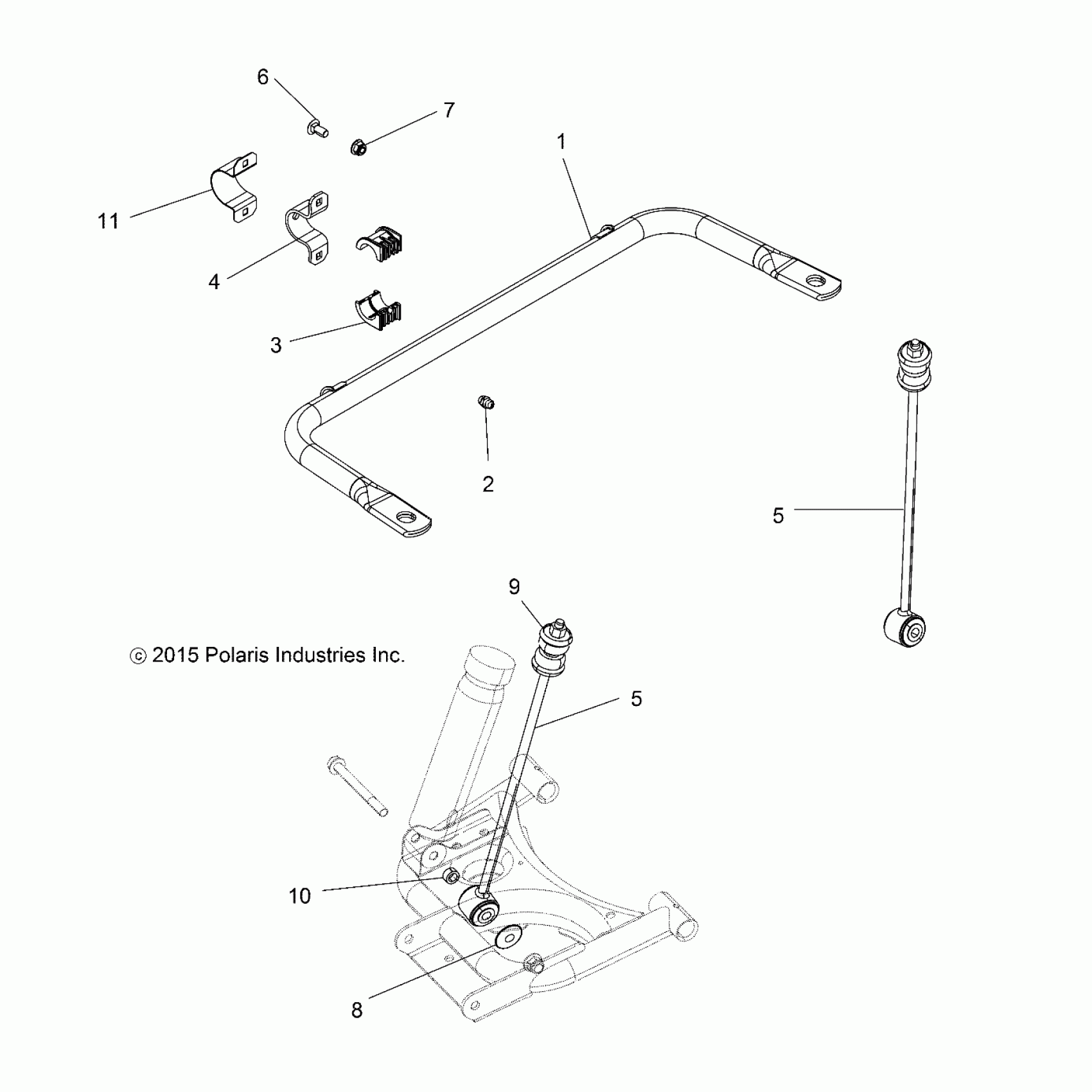

Polaris ACE 900 EFI EPS (R10) - A16DAE87AL SUSPENSION, STABILIZER BAR, REAR - A16DAE87AL (100223) Diagram

#

Description

Price

1

BAR, STABILIZER, REAR, BLACK

5339373

$134.99

2

Fitting, Lubrication

7080433

$1.19

3

BUSHING, STABILIZER

5452764

$4.76

4

BRACKET, UPPER STEERING BUSHING

5257028

$32.37

5

ASM., LINKAGE, STABILIZER BAR [INCL. 9]

1542942

Unavailable

5

ASM., LINKAGE, STABILIZER BAR [INCL. 9]

1542942

Unavailable

6

BOLT-CARR M8X1.25X25-8.8-ZOD

7518920

$4.84

7

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

8

WASHER

7555852

$2.38

9

BUSHING, TORSION BAR LINKAGE

5413295

$4.76

10

SPACER

5334945

$3.97

11

SHIELD-BUSHING

5256741

$32.37
