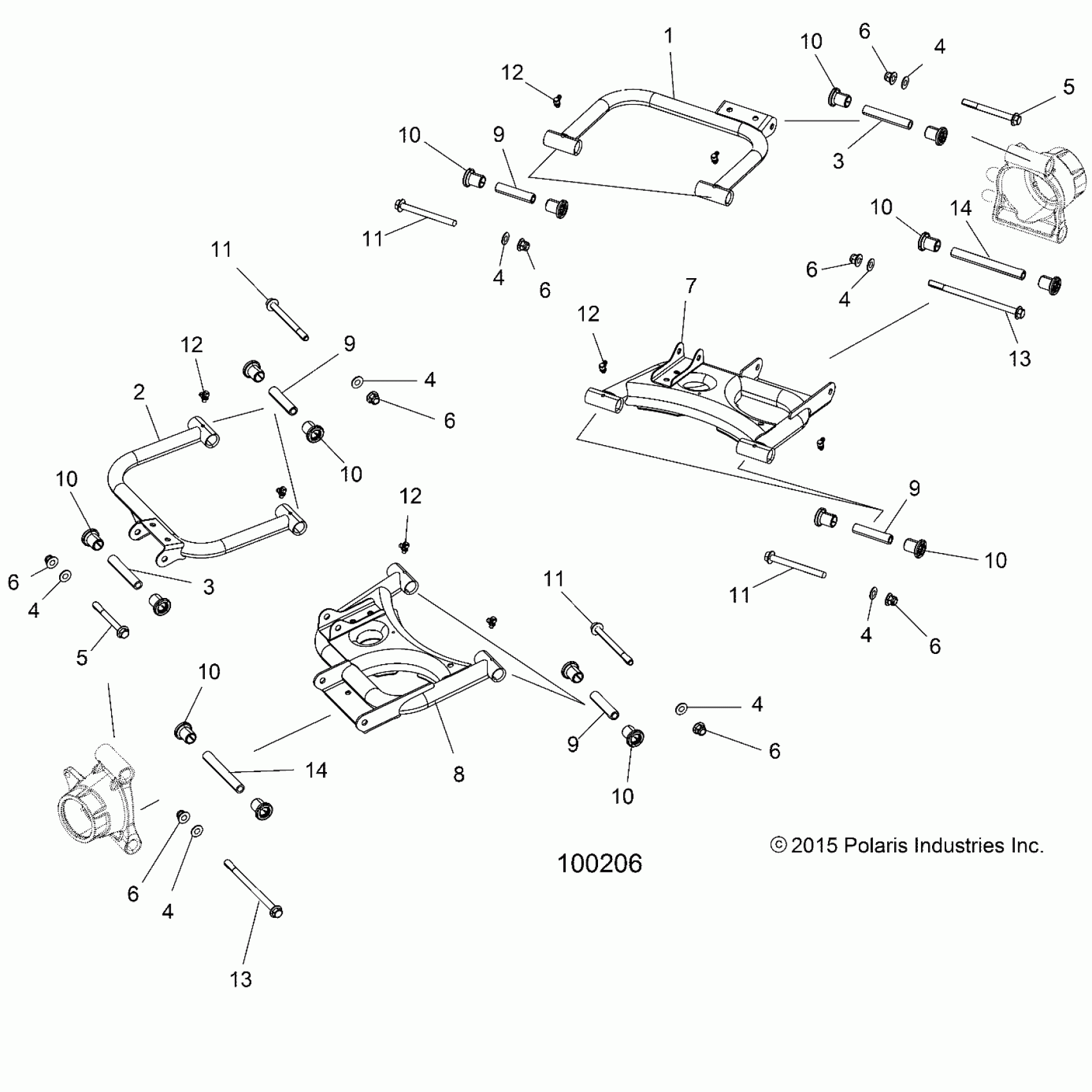

Polaris ACE 900 EFI EPS (R10) - A16DAE87AL SUSPENSION, REAR CONTROL ARMS - A16DAE87AL (100206) Diagram

#

Description
Price

1

ARM, CONTROL, UPPER, REAR, MATTE BLACK, LH

1018121-458

$116.17

2

ARM, CONTROL, UPPER, REAR, MATTE BLACK, RH

1018123-458

$116.17

3

SHAFT, PIVOT [TO 11/9/15]

5137592

$6.46

3

SHAFT-PIVOT,89.71MM,15.88OD [FROM 11/10/15]

5138794

$5.65

3

SHAFT, PIVOT [TO 11/9/15]

5137592

$6.46

3

SHAFT-PIVOT,89.71MM,15.88OD [FROM 11/10/15]

5138794

$5.65

4

WASHER

7556153

$1.98

4

WASHER

7556153

$1.98

4

WASHER

7556153

$1.98

4

WASHER

7556153

$1.98

4

WASHER

7556153

$1.98

4

WASHER

7556153

$1.98

4

WASHER

7556153

$1.98

4

WASHER

7556153

$1.98

5

SCR-HXFL-M10X1.25X115 8.8 ZOD

7518566

$7.14

5

SCR-HXFL-M10X1.25X115 8.8 ZOD

7518566

$7.14

5

SCR-HXFL-M10X1.25X115 8.8 ZOD

7518566

$7.14

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

7

ARM, CONTROL LOWER, REAR, MATTE BLACK, LH

1018115-458

$194.99

8

ARM, CONTROL LOWER, REAR, MATTE BLACK, RH

1018116-458

$194.99

9

SHAFT-PIVOT,70.99MM,15.88OD

5138797

$10.44

9

SHAFT-PIVOT,70.99MM,15.88OD

5138797

$10.44

9

SHAFT-PIVOT,70.99MM,15.88OD

5138797

$10.44

9

SHAFT-PIVOT,70.99MM,15.88OD

5138797

$10.44

10

BUSHING-STANDARD,ORV

5439874

$2.38

10

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

10

BUSHING-STANDARD,ORV

5439874

$2.38

10

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

10

BUSHING-STANDARD,ORV

5439874

$2.38

10

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

10

BUSHING-STANDARD,ORV

5439874

$2.38

10

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

10

BUSHING-STANDARD,ORV

5439874

$2.38

10

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

10

BUSHING-STANDARD,ORV

5439874

$2.38

10

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

10

BUSHING-STANDARD,ORV

5439874

$2.38

10

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

10

BUSHING-STANDARD,ORV

5439874

$2.38

10

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

11

SCREW

7519043

$9.52

11

SCREW

7519043

$9.52

11

SCREW

7519043

$9.52

11

SCREW

7519043

$9.52

12

FITTING, ZERK

7080510

$5.56

12

FITTING, ZERK

7080510

$5.56

12

FITTING, ZERK

7080510

$5.56

12

FITTING, ZERK

7080510

$5.56

13

SCREW

7519042

$9.52

13

SCREW

7519042

$9.52

14

TUBE, PIVOT [TO 11/9/15]

5336724

$28.32

14

SHAFT-PIVOT,139.1MM,15.88OD [FROM 11/10/15]

5138796

$12.13

14

TUBE, PIVOT [TO 11/9/15]

5336724

$28.32

14

SHAFT-PIVOT,139.1MM,15.88OD [FROM 11/10/15]

5138796

$12.13
