- ACE 900 EFI EPS (R10) - A16DAE87AL
STEERING, STEERING ASM. - A16DAE87AL (100165)

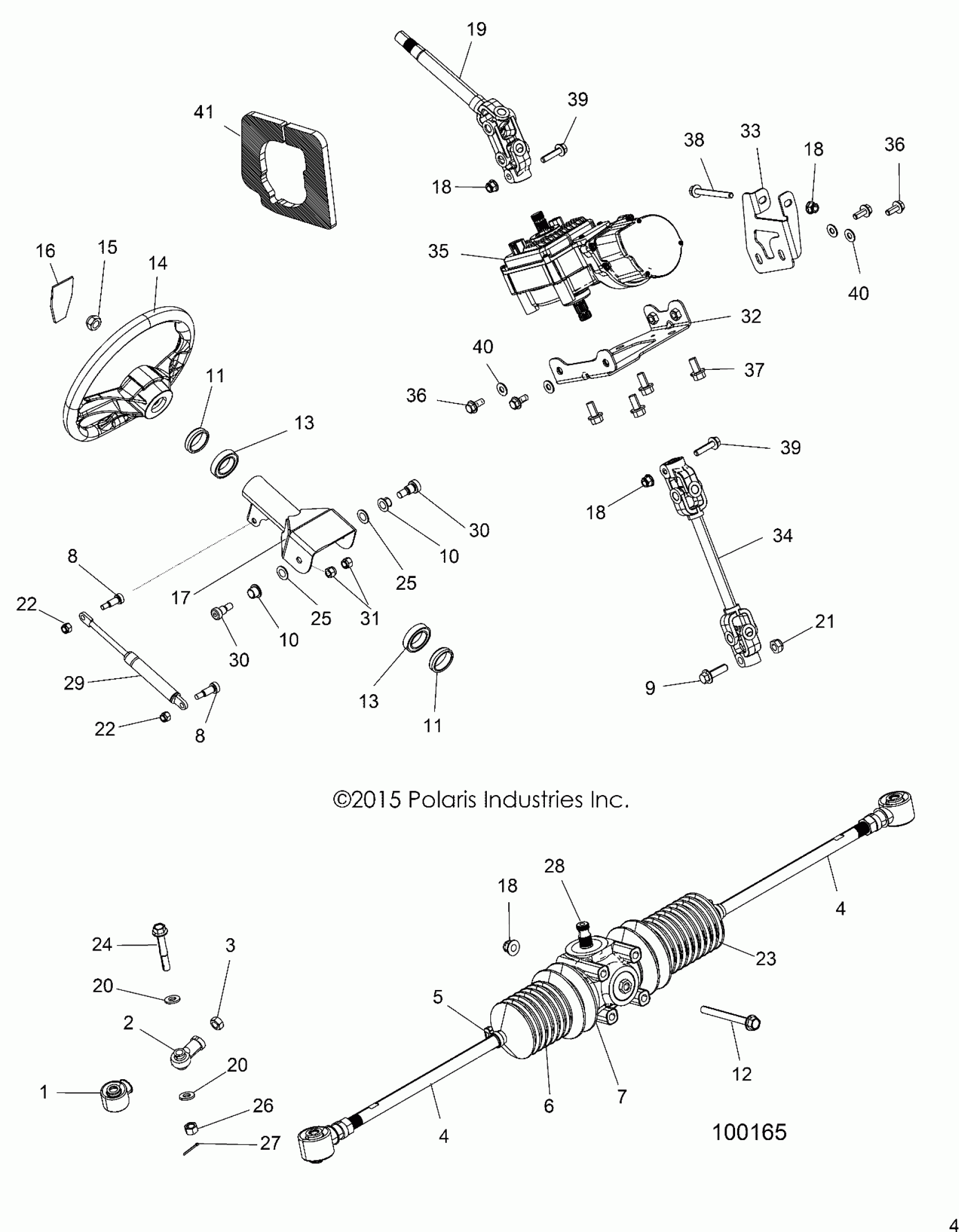

Polaris ACE 900 EFI EPS (R10) - A16DAE87AL STEERING, STEERING ASM. - A16DAE87AL (100165) Diagram
#
1
BOOT, SEAL, ROD END
-------
Unavailable
2
Rod End
7061054
Unavailable
3
Nut, Jam, LH
7547028
$2.39
4
TIE ROD, INNER
-------
Unavailable
4
TIE ROD, INNER
-------
Unavailable
5
CLAMP, BOOT, SMALL
7080978
$2.39
6
BOOT, STEERING RACK
5415572
$47.99
7
CLAMP, BOOT, LARGE
7080979
$5.59
8
BOLT, SHOULDER
7518786
$2.39
8
BOLT, SHOULDER
7518786
$2.39
9
SCREW
7518644
$4.79
10
BUSHING, TILT STEERING
5439154
$3.19
10
BUSHING, TILT STEERING
5439154
$3.19
11
BUSHING-STEERING
7556675
$14.95
11
BUSHING-STEERING
7556675
$14.95
12
SCREW
7519217
$1.59
13
BEARING-STEERING
3514686
$9.59
13
BEARING-STEERING
3514686
$9.59
14
WHEEL, STEERING
1824014
Unavailable
15
NUT
7547506
$4.39
16
CAP-STEERING WHEEL,BLK
5450255-070
$19.99
17
ASM., TUBE, PIVOT, BLACK [INCL. 13]
1017621
$127.99
18
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
18
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
18
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
18
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
19
SHAFT, STEERING, EPS, UPPER
1824286
$155.99
20
Washer, Flat
7556099
$1.59
20
Washer, Flat
7556099
$1.59
21
NUT, NYLOK
7547385
$1.49
22
NUT-6MM X 1 NYLOK-Z
7546703
$1.49
22
NUT-6MM X 1 NYLOK-Z
7546703
$1.49
23
BOOT, STEERING RACK
5415572
$47.99
24
Bolt
7517909
$5.59
25
WASHER
7555919
$4.99
25
WASHER
7555919
$4.99
26
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
27
Pin, Cotter
7661203
$1.49
28
ASM., GEAR BOX, STEERING [INCL. 2-7,23]
1824019
$576.39
29
ASM., SHOCK, OIL LOCKING
7044420
$71.05
30
SCREW
7519355
$10.39
30
SCREW
7519355
$10.39
31
NUT, NYLOK
7547442
$3.99
32
BRACKET, BASE, EPS
1020912-329
$100.31
33
BRACKET, EPS, LH
5260034-329
$39.99
34
SHAFT, STEERING, EPS, LOWER
1824287
$131.99
35
ASM., POWER STEERING
2413339
Unavailable
36
BOLT
7518450
$1.59
36
BOLT
7518450
$1.59
37
BOLT
7518558
$3.99
38
SCREW
7518955
$3.19
39
SCREW
7519052
$1.59
39
SCREW
7519052
$1.59
40
WASHER
7555960
$3.99
40
WASHER
7555960
$3.99
41
FOAM, SHIELD
5814248
$27.99
