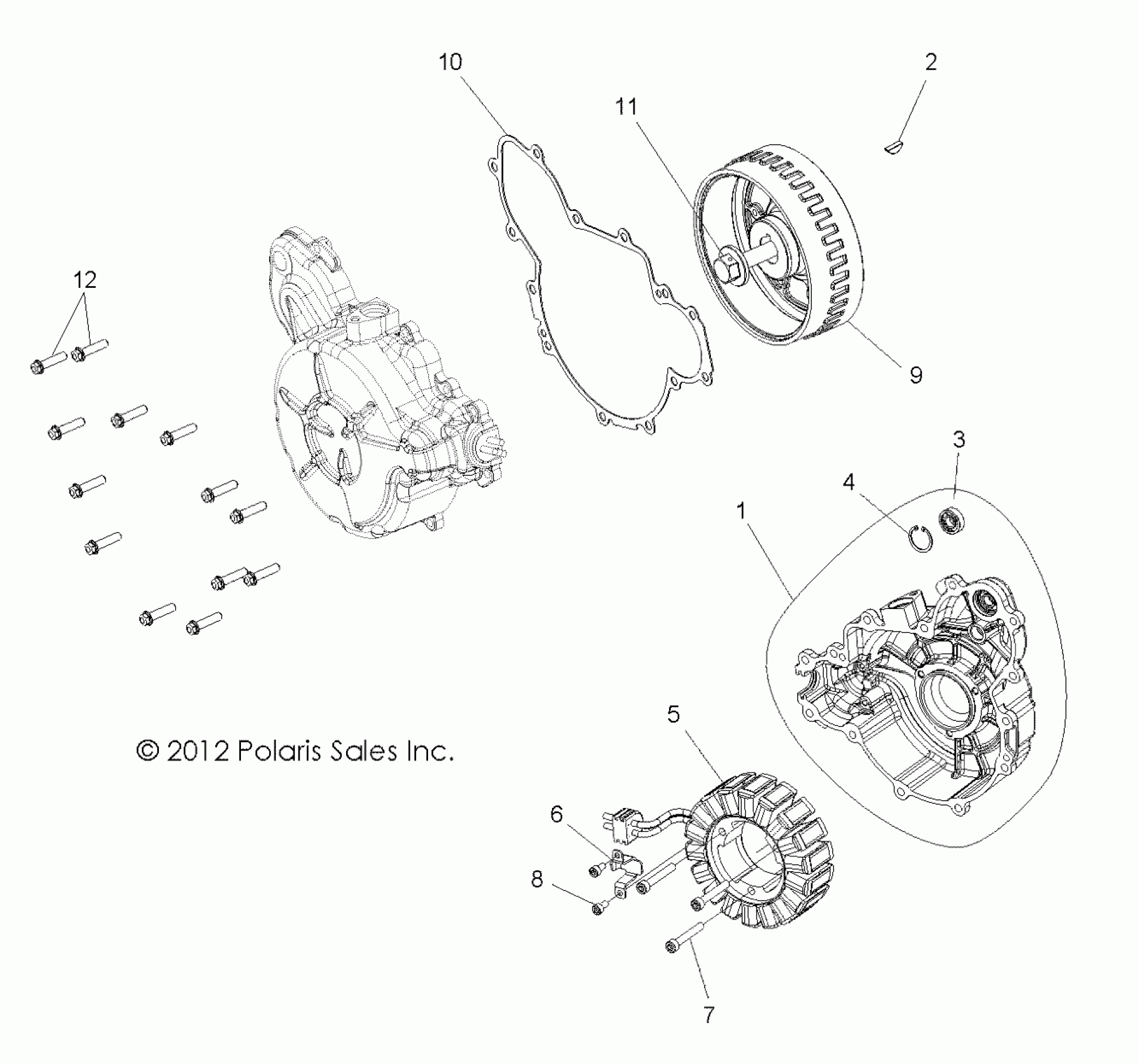

Polaris ACE 900 EFI EPS (R10) - A16DAE87AL ENGINE, STATOR and COVER - A16DAE87AL (49RGRMAGNETOCVR13900XP) Diagram

#

Description
Price

1

ASM., IGNITION COVER, STARTER BEARING [INCL. 3,4]

1204518

$169.43

2

KEY-WOODRUFF,4X5

7721122

$7.84

3

BEARING, BALL

3514717

$8.73

4

RING, SNAP

7710654

$23.81

5

STATOR

4014839

$612.74

6

BRACKET, RETAINER, WIRE

5255473

$7.27

7

SCREW

7510005

$5.70

8

SCREW

7517847

$3.17

9

FLYWHEEL

4014688

$219.99

10

GASKET, COVER, MAG

5814160

$40.46

11

SCREW

7519170

$23.81

12

SCREW

7519297

$3.97
