- ACE 900 EFI EPS (R10) - A16DAE87AL
ENGINE, CRANKSHAFT and PISTON - A16DAE87AL (49RGRPISTON11RZR875)

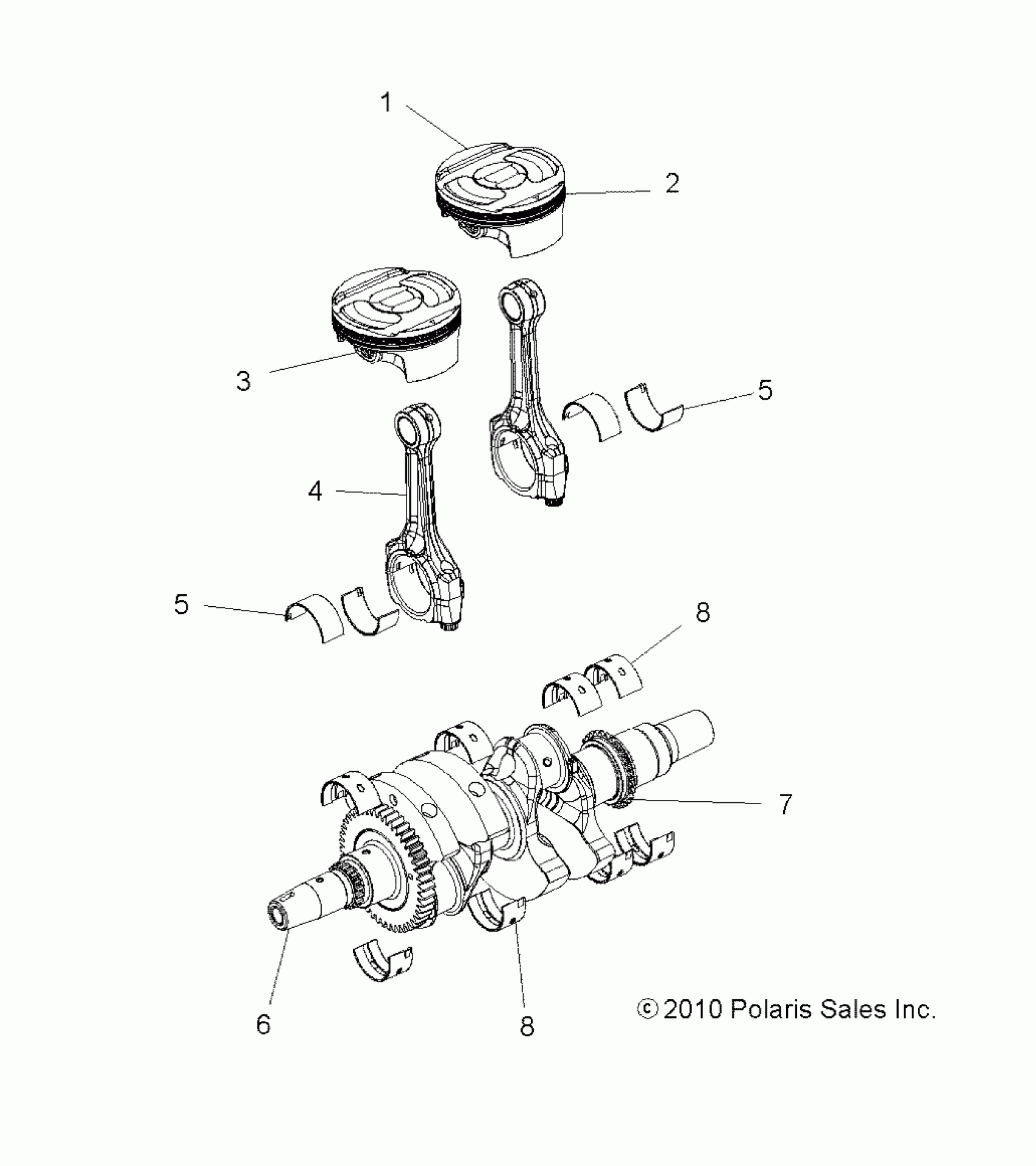

Polaris ACE 900 EFI EPS (R10) - A16DAE87AL ENGINE, CRANKSHAFT and PISTON - A16DAE87AL (49RGRPISTON11RZR875) Diagram
#
Description
Price
1
KIT-PISTON 3022567 [INCL. 1 PISTON, 1 PIN, 1 RING SET, 2 CLIPS]
2205244
$189.99
2
KIT-PISTON RINGS [INCL. 1 TOP, 1 MIDDLE AND 1 BOTTOM RING]
2205245
Unavailable
3
PIN-PISTON
3022358
$23.99
3
RING, RETAINING
3022413
$3.99
4
SCREW, CONNECTING ROD
7519310
Unavailable
4
ASM., CONNECTING ROD, FORGED [INCL. ROD, CAP, 2 BOLTS]
1204473
Unavailable
5
BEARING, CONNECTING ROD, WHITE
3514663-001
$8.79
5
BEARING, CONNECTING ROD, BLUE
3514663-002
$8.79
5
BEARING, CONNECTING ROD, GREEN
3514663-003
$8.79
5
BEARING, CONNECTING ROD, YELLOW
3514663-004
$8.79
5
BEARING, CONNECTING ROD, WHITE
3514663-001
$8.79
5
BEARING, CONNECTING ROD, BLUE
3514663-002
$8.79
5
BEARING, CONNECTING ROD, GREEN
3514663-003
$8.79
5
BEARING, CONNECTING ROD, YELLOW
3514663-004
$8.79
6
ASM., CRANKSHAFT [INCL. CRANK, 7]
1204553
Unavailable
7
SPROCKET, AUXILLARY DRIVE
-------
Unavailable
8
BEARING, MAIN, WHITE
3514662-001
$9.59
8
BEARING-MAIN,G-90,41MM,BLU
3514662-002
$9.59
8
BEARING-MAIN,G-90,41MM,GRN
3514662-003
$9.59
8
BEARING-MAIN,G-90,41MM,YLW
3514662-004
$9.59
8
BEARING-MAIN,G-90,41MM,RED
3514662-005
$9.59
8
BEARING, MAIN, WHITE
3514662-001
$9.59
8
BEARING-MAIN,G-90,41MM,BLU
3514662-002
$9.59
8
BEARING-MAIN,G-90,41MM,GRN
3514662-003
$9.59
8
BEARING-MAIN,G-90,41MM,YLW
3514662-004
$9.59
8
BEARING-MAIN,G-90,41MM,RED
3514662-005
$9.59
