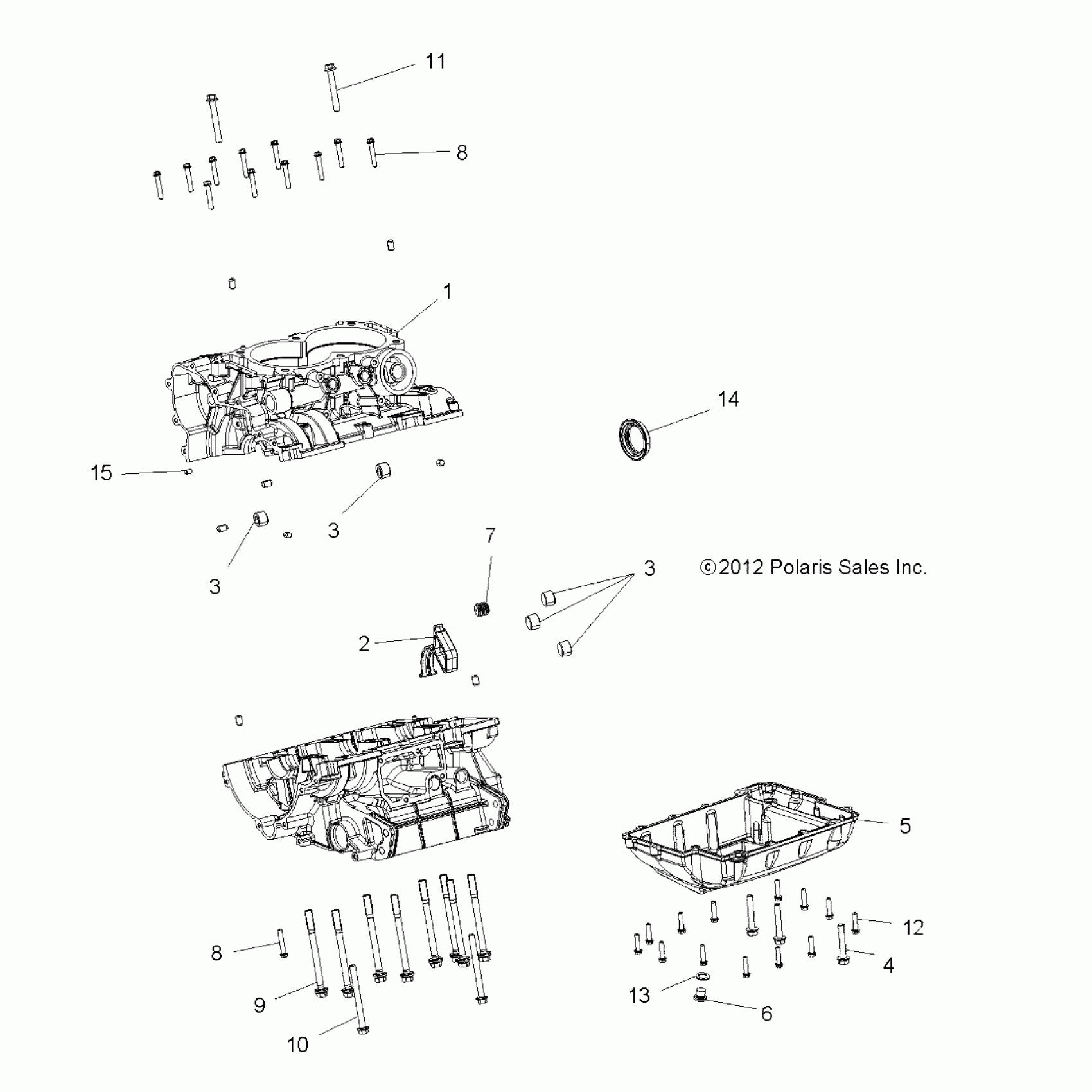

Polaris ACE 900 EFI EPS (R10) - A16DAE87AL ENGINE, CRANKCASE - A16DAE87AL (49RGRCRANKCASE13900XP) Diagram

#

Description
Price

1

KIT, CRANKCASE [INCL. 2-4,8-10,15]

2206113

Unavailable

2

DIVERTER, OIL DRAIN

5452616

$20.22

3

PLUG

7052413

$3.99

3

PLUG

7052413

$3.99

3

PLUG

7052413

$3.99

4

SCREW

7517793

$5.59

5

COVER, SUMP

5137873

Unavailable

6

PLUG, SOCKET

7052306

$15.37

7

PLUG, HEX SOCKET

7518835

$5.59

8

SCREW

7518578

$3.99

8

SCREW

7518578

$3.99

9

SCREW

7519141

Unavailable

10

SCREW

7519154

$7.19

11

SCREW

7519186

$6.53

12

SCREW

7519297

$3.99

13

WASHER, COPPER

5812232

$1.59

14

SEAL, FLANGE

3610176

$31.99

15

PIN-DOWEL,M6X10

5136879

Unavailable
