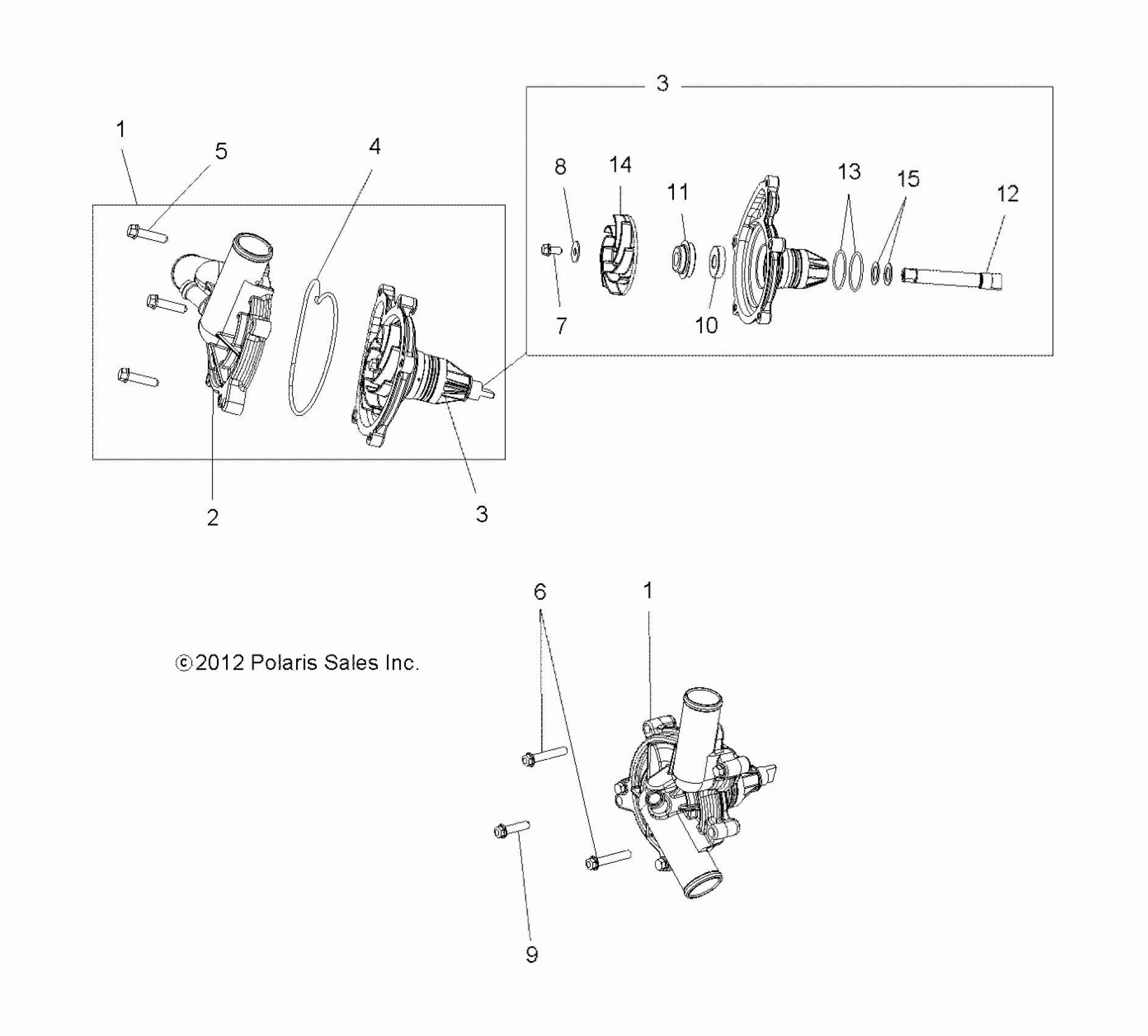

Polaris ACE 900 EFI EPS (R10) - A16DAE87AL ENGINE, COOLING, WATERPUMP - A16DAE87AL (49RGRWATERPUMP13900XP) Diagram

#

Description

Price

1

ASM-WATERPUMP [INCL. 1-5]

1205015

$215.59

1

ASM-WATERPUMP [INCL. 1-5]

1205015

$215.59

2

ASM., WATERPUMP COVER

-------

Unavailable

3

ASM., WATERPUMP HOUSING [INCL. 7,8,10-15]

-------

Unavailable

3

ASM., WATERPUMP HOUSING [INCL. 7,8,10-15]

-------

Unavailable

4

GASKET, WATERPUMP COVER

-------

Unavailable

5

SCREW

-------

Unavailable

6

SCREW

7519280

$4.79

7

SCREW

-------

Unavailable

8

WASHER, IMPELLER

-------

Unavailable

9

SCREW

7519297

$3.99

10

SEAL, WATERPUMP SHAFT, OIL

-------

Unavailable

11

SEAL, WATERPUMP SHAFT, WATER

-------

Unavailable

12

SHAFT, WATERPUMP

-------

Unavailable

13

O-RING

-------

Unavailable

14

IMPELLER, WATERPUMP

-------

Unavailable

15

WASHER, WATERPUMP, RETAINER

-------

Unavailable
