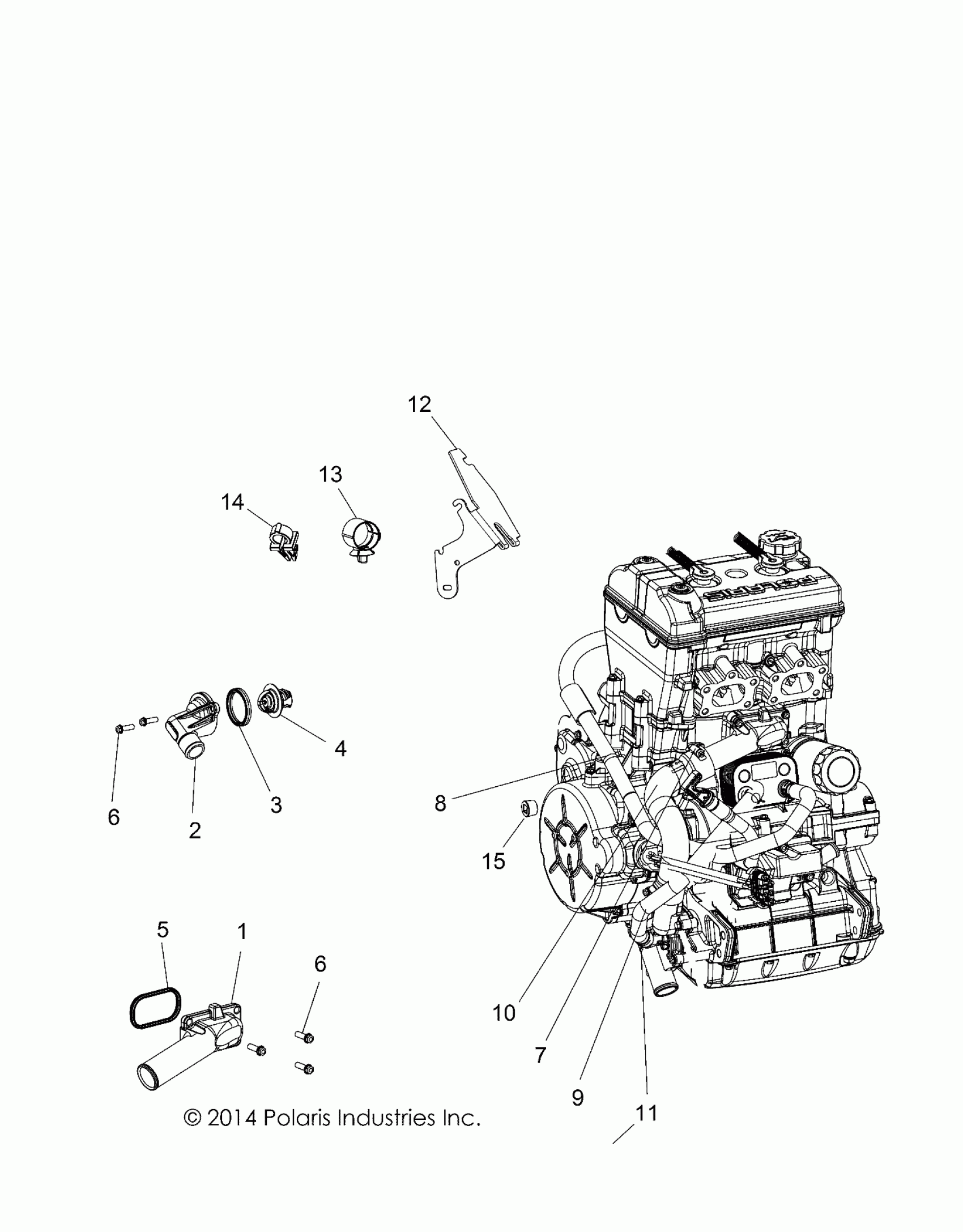

Polaris ACE 900 EFI EPS (R10) - A16DAE87AL ENGINE, COOLING, THERMOSTAT and BYPASS - A16DAE87AL (49RGRTHERMO15RZR900) Diagram

Description

Price

COVER-WATER INLET,CAST

5632557

$14.39

COVER-THERMOSTAT

5632606

$39.99

SEAL-THERMOSTAT

5413948

$7.99

THERMOSTAT-44M FLANGE,180F

7052496

$39.99

GASKET-WATER,INLET

5813736

$24.27

SCREW

7518576

$3.19

SCREW

7518576

$3.19

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

HOSE, BYPASS LINE

5414209

$43.99

HOSE, OIL COOLER OUTLET

5414282

$27.99

HOSE, WATER PUMP, OUT, FORMED

5414208

$63.99

CLAMP, HOSE, SPRING

7081026

$7.99

BRACKET, BYPASS SHIFTER

5259742

$31.99

CLIP-HOSE

5415088

$4.79

CLIP, WIRE

7081477

$3.19

PLUG

7051520

$8.79
