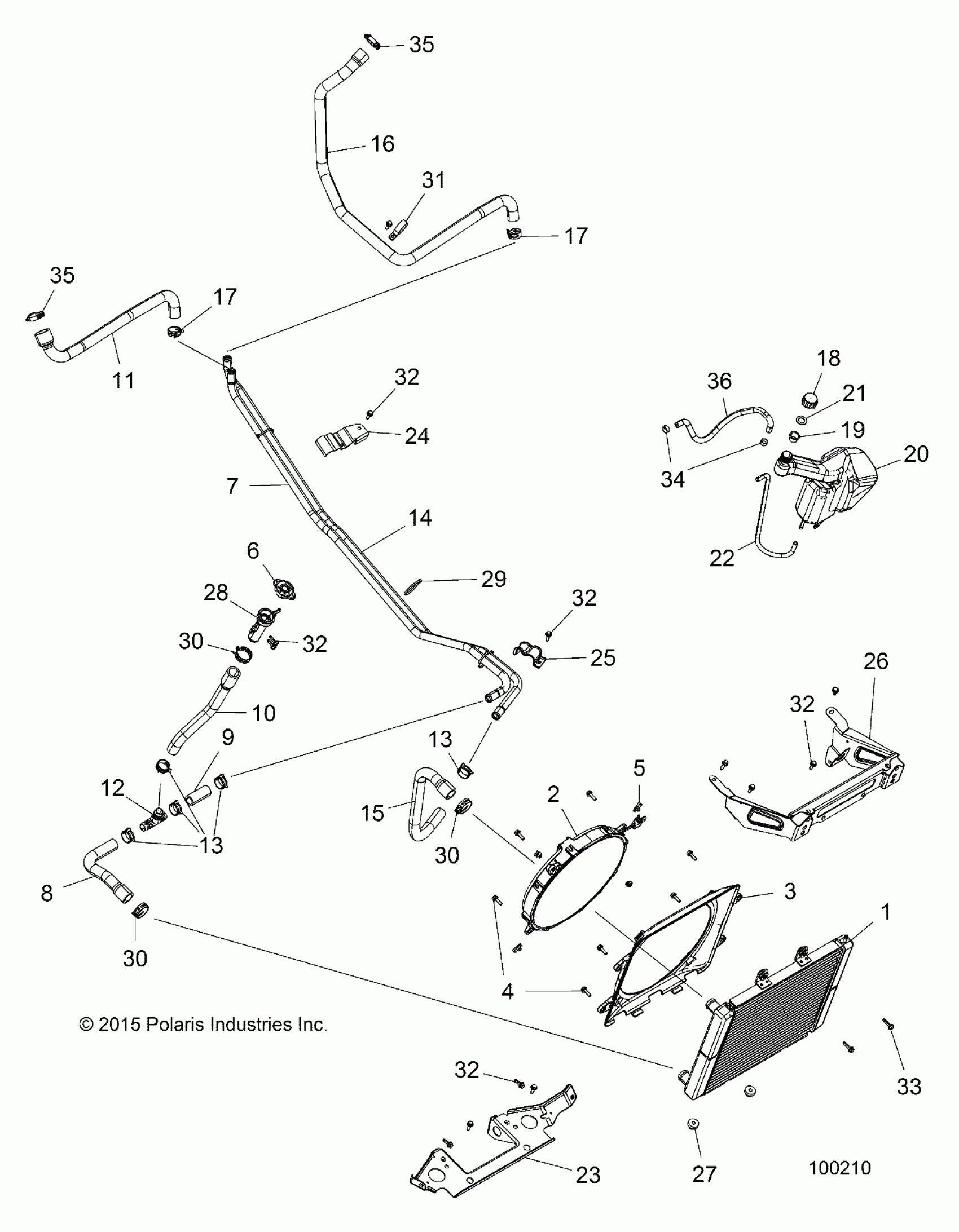

Polaris ACE 900 EFI EPS (R10) - A16DAE87AL ENGINE, COOLING SYSTEM - A16DAE87AL (100210) Diagram

#

Description
Price

1

ASM-RADIATOR,CORE

1240444

Unavailable

2

FAN-11" ASSEMBLY,ATV,PKRD

2410413

$251.99

3

SHROUD-FAN

5437845

$47.99

4

SCR-M6X1.0X20-HX/FL-Y/D

7516822

$2.39

5

CLIP-"U",M6.0X1.0

7547366

$5.99

6

CAP-PRESSURE

1240300

$40.46

7

TUBE-COOLANT,3/4,ENG IN

5140018

$47.99

8

HOSE-COOLANT,FLARED

5414633

$39.99

9

HOSE-COOLANT,FRONT

5414634

$14.39

10

HOSE-COOLANT,FRONT

5414637

$35.99

11

HOSE-COOLANT,REAR,ENG IN

5415528

$31.99

12

CONNECTOR-TEE, 3/4", BARB

7052093

$8.79

13

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

13

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

14

TUBE-COOLANT,3/4,ENG OUT

5140017

$47.99

15

HOSE-COOLANT,FLARED

5414632

$51.99

16

HOSE-COOLANT,REAR,ENG OUT

5415527

$51.99

17

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

17

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

18

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

19

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

20

TANK-COOLANT

5452401

$71.99

21

GASKET-OVERFLOW CAP

5810279

$2.41

22

HOSE-POLY,CLEAR,3/8 OD,1/4 ID

8450003-47

$4.79

23

MNT-RADIATOR,MATTE BLK

5256171-458

$91.99

24

CLAMP-COOLANT LINES

5258169

$11.19

25

CLAMP-COOLANT LINES

5258642

Unavailable

26

MNT-RADIATOR,UPPER,E-COAT

5261278-329

Unavailable

27

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

28

FILLER-REMOTE,COOLANT,SMALL

5439079

$27.99

29

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

30

SPRINGBAND-CLAMP 32/12,BROWN

7080843

$3.99

30

SPRINGBAND-CLAMP 32/12,BROWN

7080843

$3.99

30

SPRINGBAND-CLAMP 32/12,BROWN

7080843

$3.99

31

CLAMP-HOSE,1.312 VINYL COATED

7080851

Unavailable

32

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

32

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

32

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

32

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

32

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

33

SCR-TFHFL-M6X1.0X25,ZOD

7519342

$1.86

34

HOSE CLAMP, RED

7080003

$1.49

35

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

35

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

36

LINE

8450120-40

Unavailable
