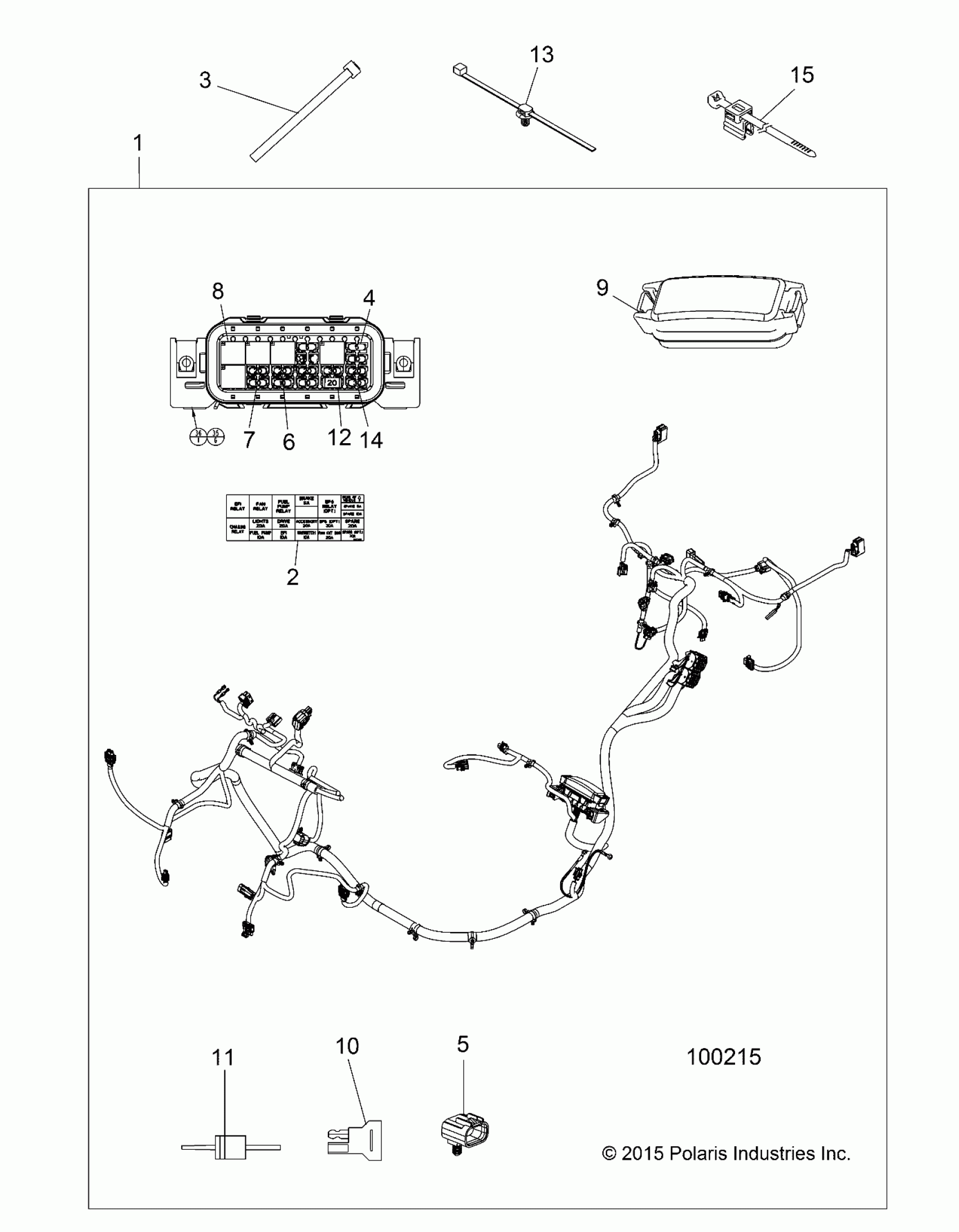

Polaris ACE 900 EFI EPS (R10) - A16DAE87AL ELECTRICAL, WIRE HARNESS - A16DAE87AL (100215) Diagram

#

Description
Price

1

HARNESS-CHASSIS,ACE 900 ETC PS

2413094

$923.99

2

LABEL, FUSE BOX

7183182

Unavailable

3

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

4

FUSE-5A,MINI BLADE

4011652

Unavailable

5

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

6

FUSE-PARK,20 AMP

2434017

Unavailable

7

FUSE-IGNITION,10 AMP

2434016

$4.79

8

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

9

COVER, FUSEBOX

4015011

$55.99

9

SEAL, FUSE CENTER

5415598

$8.79

10

DIODE, 6 AMP

2410000

$35.99

11

DIODE, 6 AMP W/TERMINALS

2411035

$51.99

12

BREAKER-CIRCUIT,20 AMP

4011372

$40.46

13

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

14

FUSE-MAIN,30 AMP

2434015

$7.19

15

CLIP-EDGE,SIDE W/STRAP

7081876

$7.99
