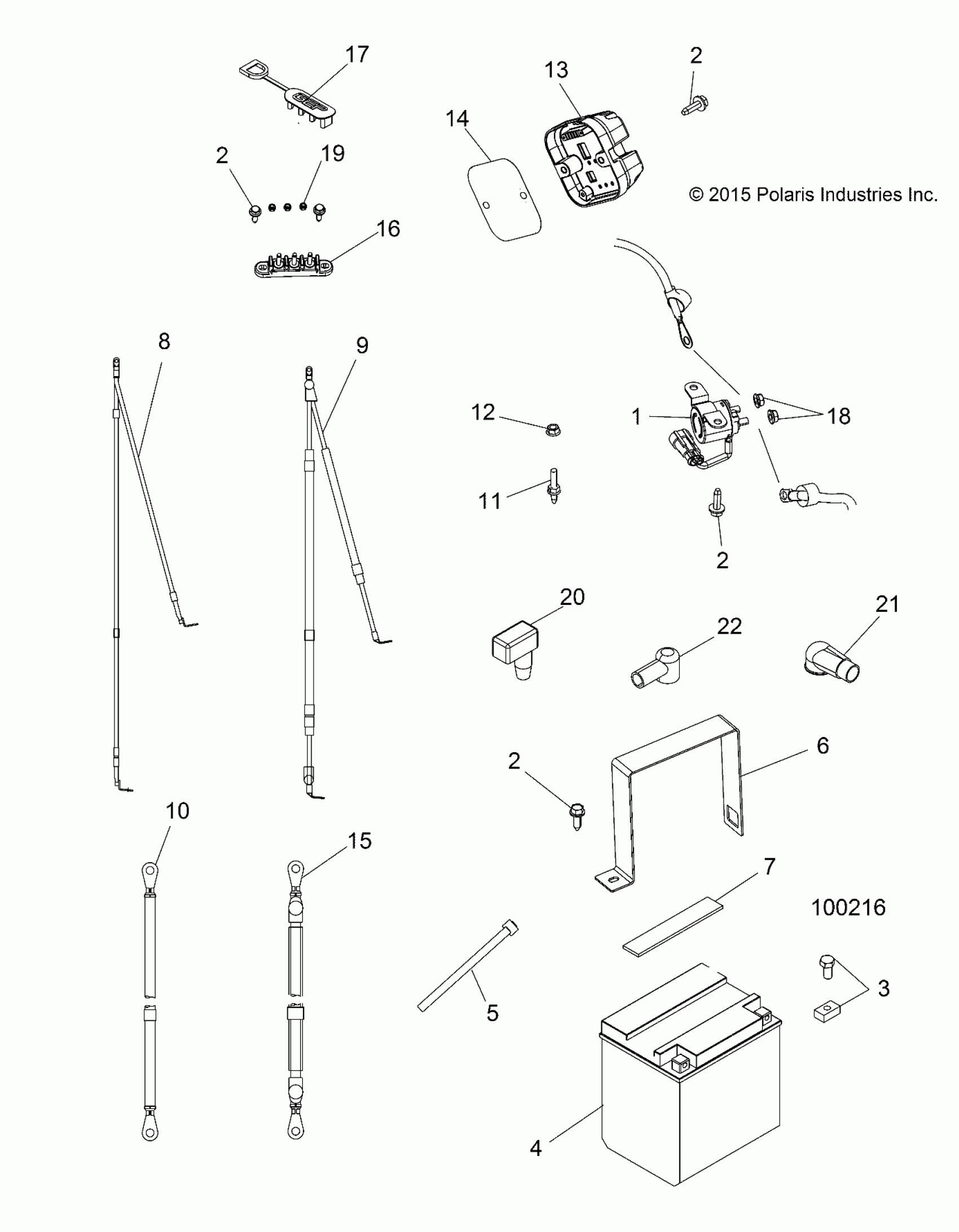

Polaris ACE 900 EFI EPS (R10) - A16DAE87AL ELECTRICAL, BATTERY - A16DAE87AL (100216) Diagram

#

Description
Price

1

SOLENOID, STARTER

4012001

Unavailable

2

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

2

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

2

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

2

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

3

KIT, BATTERY BOLT

2202213

$3.79

4

BATTERY-30AH,12 VOLT,AGM

4014609

$199.98

4

BATTERY-SEALED,32 AH,500 CCA [OPT]

4015955

$214.49

5

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

6

BRKT-BATTERY STRAP

5258191

Unavailable

7

PAD, RACK MOUNT

5810455

$3.19

8

CABLE-BATT,6GA,BK,BAT/CHASS/TB

4015545

$51.99

9

CABLE-BATT,6GA,RD,BATT/SOL/TB

4015546

$59.99

10

CABLE, BATTERY, FLAT

4014423-940

$27.99

11

STUD

7519333

$7.99

12

NUT-M6 FLANGE,NYLOC

7547274

$1.49

13

REGULATOR, 3 PHASE, 50 AMP

4015229

$271.99

14

COVER, VOLTAGE REGULATOR

5253294

$10.39

15

CABLE, BATTERY, FLAT [INCL. 22]

4014424-990

$35.99

16

BLOCK, TERMINAL, 3 POST

4011892

$27.99

17

COVER, TERMINAL BLOCK, 3 POST

4014659

$10.39

18

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

19

NUT

7547341

$1.49

20

BOOT, BATTERY, RED

4014836

$7.99

21

BOOT, BATTERY, RED

4014994

$7.19

22

INSULATOR-CABLE

5410346

$6.39
