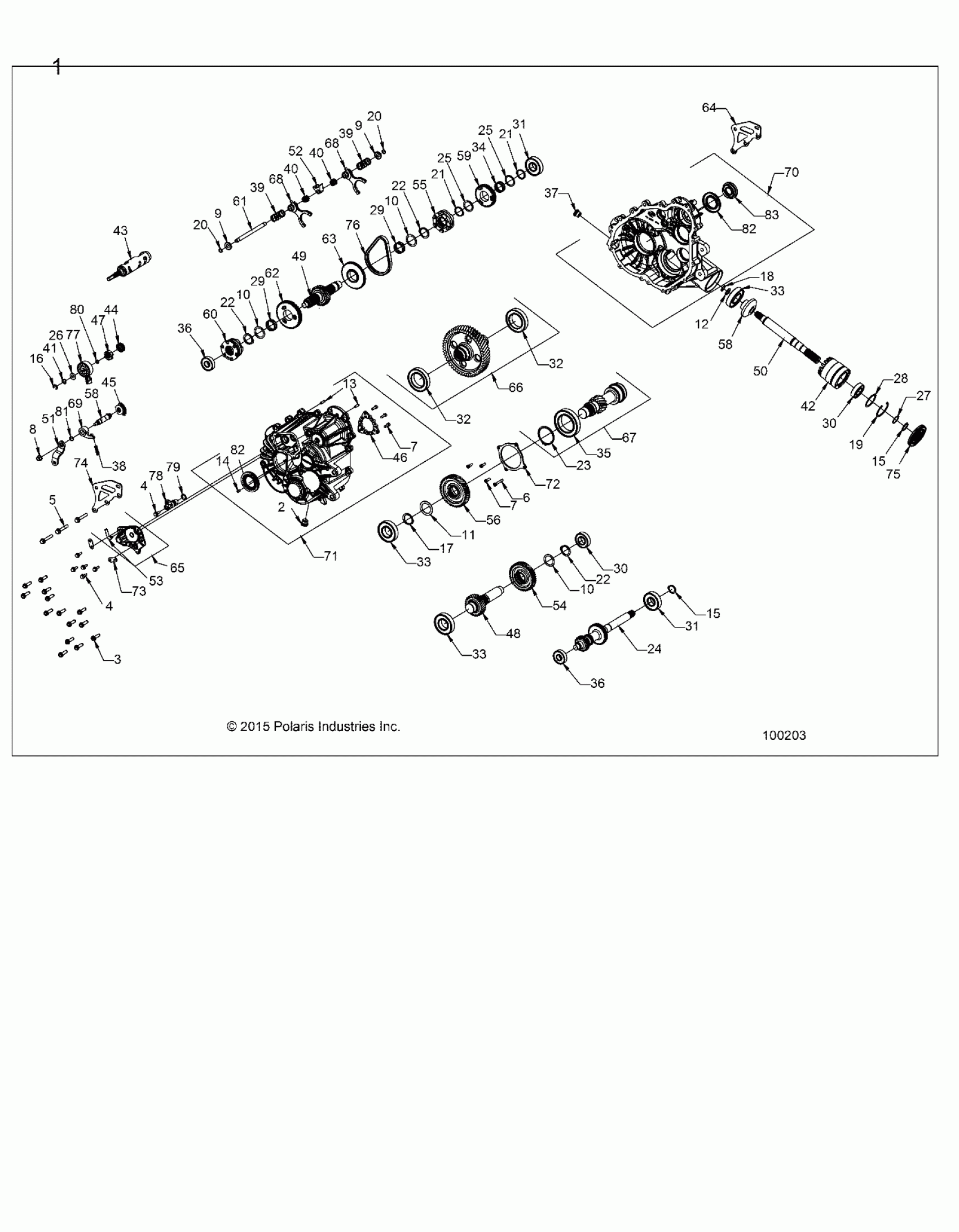

Polaris ACE 900 EFI EPS (R10) - A16DAE87AL DRIVE TRAIN, MAIN GEARCASE - A16DAE87AL (100203) Diagram

#

Description
Price

1

ASM-GEARCASE,9.26,16.3,BTD

1333478

$2,719.19

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.99

3

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.59

4

SCREW, HEX FLANGE HEAD M6 X 1 X 20

3235206

$7.19

4

SCREW, HEX FLANGE HEAD M6 X 1 X 20

3235206

$7.19

5

SCREW HEX FLANGE M8 X 50

3235207

$10.39

6

SCREW, SOCKET HEAD CAP, M6 X 1.0 X 40

3235208

$11.19

7

SCREW, SOCKET HEAD CAP, M6 X 1.0 X 18

3235332

$3.99

7

SCREW, SOCKET HEAD CAP, M6 X 1.0 X 18

3235332

$3.99

8

NUT, LOCK HEX FLANGE NYLON M8 X 1.25

3235210

$7.99

9

WASHER-CUP

3234091

$9.59

9

WASHER-CUP

3234091

$9.59

10

WASHER, 32.3 X 42 X 1.5

3235211

$10.39

10

WASHER, 32.3 X 42 X 1.5

3235211

$10.39

10

WASHER, 32.3 X 42 X 1.5

3235211

$10.39

11

WASHER, 35.6 X 57 X 1.5

3235212

$13.59

12

WASHER, 17.3 X 25 X 1.5

3235213

$15.99

13

PIN, DOWEL 6 X 20

3234330

$7.19

14

PIN, SPRING SLOTTED 6 X 12

7043746

$7.19

15

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

15

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

16

RING, SNAP

3233834

$10.39

17

RING, RETAINING SHAFT, DIA. 1.375

3233364

$6.39

18

RING, RETAINING EXTERNAL SHR-66

3234318

$3.19

19

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.59

20

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

20

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

21

RING, RETAINING

3234205

$11.19

21

RING, RETAINING

3234205

$11.19

22

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

22

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

22

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

23

RING, RETAINING VSH-237

3235216

$10.39

24

SHAFT, BOSS LW UTILITY, INPUT, AVALANCHE

3235560

$219.99

25

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

25

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

26

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.39

27

SHIM, 1.180 OD X .995 ID

3234272

$31.99

28

SHIM, 2.040 OD X 1.63 ID

3234273

$12.79

29

BEARING, NEEDLE

3233014

$43.99

29

BEARING, NEEDLE

3233014

$43.99

30

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

30

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

31

BEARING

3233020

$47.99

31

BEARING

3233020

$47.99

32

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

32

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

33

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

33

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

33

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

34

BEARING, NEEDLE CAGE ASSY

3233384

$31.99

35

BEARING, BALL 6012 C3 60 X 95 X 18

3235218

$59.99

36

BEARING, BALL 6303 17 X 47 X 14

3234652

$15.99

36

BEARING, BALL 6303 17 X 47 X 14

3234652

$15.99

37

PLUG, M18 X 1.5

3234755

$27.99

38

SPRING, COMPRESSION .360 OD X 1.125

3233830

$10.39

39

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

39

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

40

SPRING, COMPRESSION .46 I.D. X .73

3234089

$23.99

40

SPRING, COMPRESSION .46 I.D. X .73

3234089

$23.99

41

SPRING, WASHER

3235327

$9.59

42

TUBE, SNORKEL MACH

3234278

$95.99

43

DRUM-SHIFT,MACH.(255289)

3235463

$263.99

44

GEAR, SECTOR 16T

3233839

$31.99

45

GEAR-SECTOR,31T

3233832

$31.99

46

PLATE, PARK 12-FACE

3235456

$35.99

47

DETENT STAR

3235603

$35.99

48

SHAFT, IDLER 29T

3235223

$107.99

49

SHAFT, REVERSE 29T

3235224

$143.99

50

SHAFT, FRONT OUTPUT

3235394

$131.99

51

BELLCRANK TXC

3235386

$27.99

52

COLLAR-SHIFT

3234073

$31.99

53

TUBE, VENT 90 -1/4" HOSE

3234230

$9.59

54

GEAR-44T,STAGE2

3235229

$87.99

55

ENGAGEMENT DOG, 6-FACE

3235233

$119.99

56

GEAR, 46T STAGE 3

3235236

$103.99

58

SHAFT-SHIFT(352973)

3235238

$37.61

58

SHAFT-SHIFT(352973)

3235238

$37.61

59

GEAR, 49T

3235396

$123.99

60

SHIFT DOG, PARK

3235457

$135.99

61

RAIL, SHIFT SHAFT

3235542

$27.99

62

GEAR, LOW 61T

3235561

$79.99

63

SPROCKET, 48T 6-FACE

3235755

$79.99

64

WELDMENT, REAR MOUNT BRACKET

3235869

$35.51

65

SUBASSEMBLY, SECTOR COVER (INCLUDES ALL HARDWARE)

3235713

$107.99

66

SUBASSEMBLY, OUTPUT (INCLUDES ALL HARDWARE)

3235335

$342.75

67

SUBASM.,SHAFT (INCLUDES ALL HARDWARE)

3235336

$355.99

68

SUBASSEMBLY, SHIFT FORK

3235454

$83.99

68

SUBASSEMBLY, SHIFT FORK

3235454

$83.99

69

SUBASSEMBLY, PAWL DETENT, ROLLER

3235452

$31.99

70

SUBASSEMBLY, LH CASE (INCLUDES ALL HARDWARE)

3235382

$421.73

71

SUBASSEMBLY, RH COVER (INCLUDES ALL HARDWARE)

3235756

$405.59

72

COVER-BEARING,CNTR DR.

3235241

$43.99

73

BRACKET, WIRE HARNESS

3235350

$8.79

74

BRACKET, REAR MOUNT

3235868

Unavailable

75

SEAL, TRIPLE LIP, VITON 25 X 80 X 10

3235658

$55.99

75

PLUG, CAP VENT 5/16

3233578

$7.03

76

CHAIN,SIL 101,.25P X .40W X58L

3234737

$159.99

77

SWITCH, ROTARY 2 PIN RESISTIVE

7661999

$111.99

78

SENSOR-SPEED,TRANS

4013908

Unavailable

79

O-RING

3234302

$7.19

80

O-RING, -012 VITON

3233836

$6.87

81

O-RING, -014 VITON

3233828

$6.79

82

SEAL, TRIPLE LIP, VITON 40 X 70 X 7

3235052

$31.99

82

SEAL, TRIPLE LIP, VITON 40 X 70 X 7

3235052

$31.99

83

SEAL, TRIPLE LIP 25 X 47 VITON

3234851

$35.99
