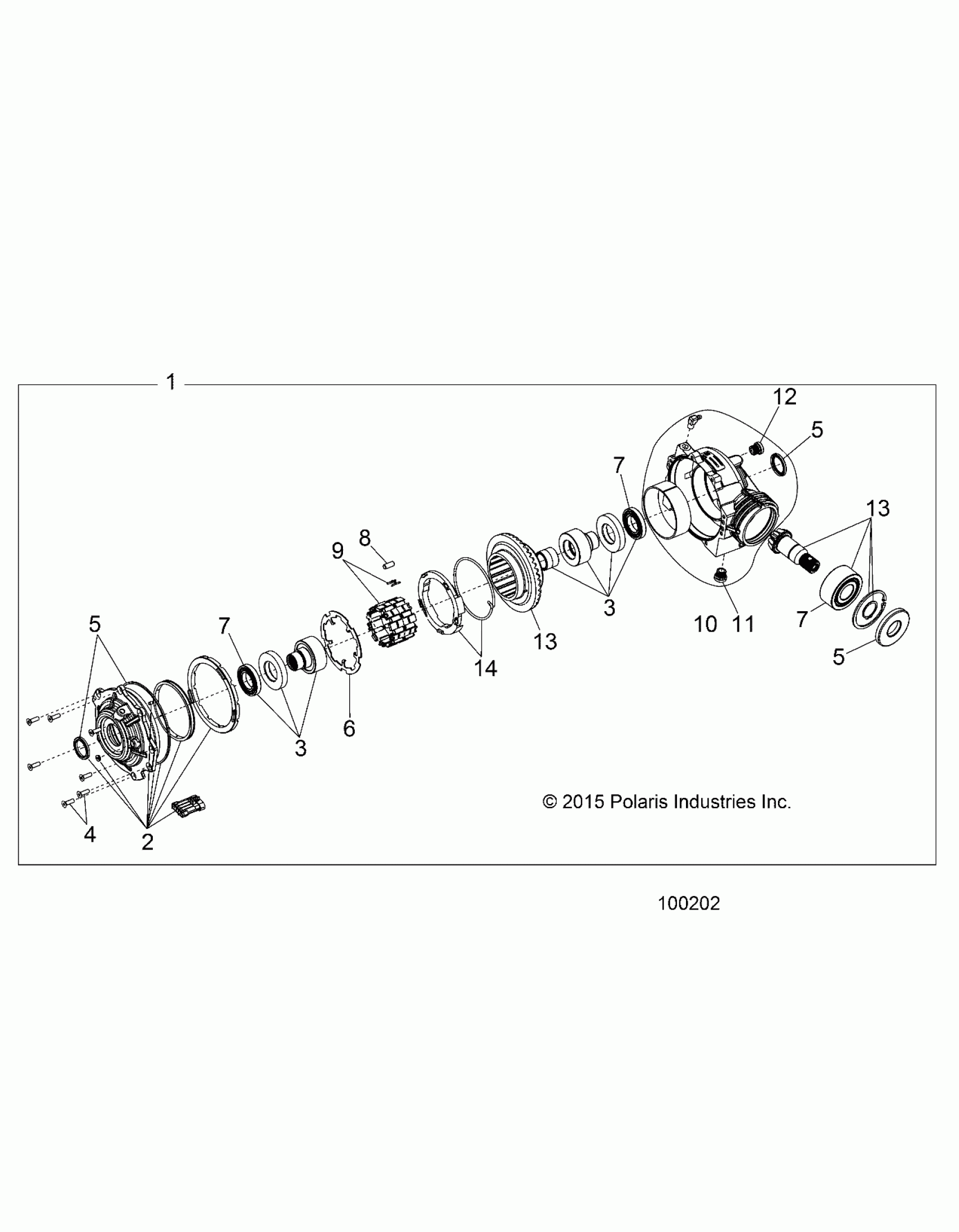

Polaris ACE 900 EFI EPS (R10) - A16DAE87AL DRIVE TRAIN, FRONT GEARCASE INTERNALS (TO 7/1/16) - A16DAE87AL (100202) Diagram

#

Description
Price

1

ASM-GEARCASE,FRONT-12 POCKET

1333375

Unavailable

2

ASM., COVER OUTPUT W/O-RING, DOWEL PIN, OIL SEAL, COVER, CONNECTOR ASSY, BACKLASH SPACER, 4WD COIL, GROMMET & HEAT SHRINK TUBING

3235168

Unavailable

3

KIT, HUB ASSY W/BUSHING, HUB SUB. ASSY & NYLON SPACER

3235169

$382.23

3

KIT, HUB ASSY W/BUSHING, HUB SUB. ASSY & NYLON SPACER

3235169

$382.23

4

KIT, FASTENER W/ALL FASTENERS

3235170

$19.99

5

KIT, SEAL REPAIR W/ALL SEALS

3235171

Unavailable

5

KIT, SEAL REPAIR W/ALL SEALS

3235171

Unavailable

5

KIT, SEAL REPAIR W/ALL SEALS

3235171

Unavailable

6

PLATE, ARMATURE

3235485

Unavailable

7

BEARING, PINION W/ALL BEARINGS

3235174

$79.99

7

BEARING, PINION W/ALL BEARINGS

3235174

$79.99

7

BEARING, PINION W/ALL BEARINGS

3235174

$79.99

8

K-CLUTCH ROLLS W/COMPLETE SET OF ROLLER

3235624

$153.41

9

ASM-ROLL CAGE CAGE AND CLIPS

3235625

$163.99

10

KIT, GEARCASE ASSY W/HOSE FITTING, BUSHING, SEAL, GEARCASE, FILL PLUG & DRAIN PLUG

3235440

$655.59

11

KIT-PLUG,DRAIN

2203738

$35.99

12

KIT-PLUG,FILL

2203739

$39.99

13

KIT, RING & PINION W/RING GEAR ASSY, PINION, BEARING, INTERNAL RING & SHAFT RING

3235628

$1,070.99

13

KIT, RING & PINION W/RING GEAR ASSY, PINION, BEARING, INTERNAL RING & SHAFT RING

3235628

$1,070.99

14

KIT-TORSION,SPRING AND RETAINER W/TORSION SPRING & SPRINT RETAINER ASSY

3235712

$35.99
