- ACE 900 EFI EPS (R10) - A16DAE87AL
DRIVE TRAIN, CLUTCH COVER AND DUCTING - A16DAE87AL (100205)

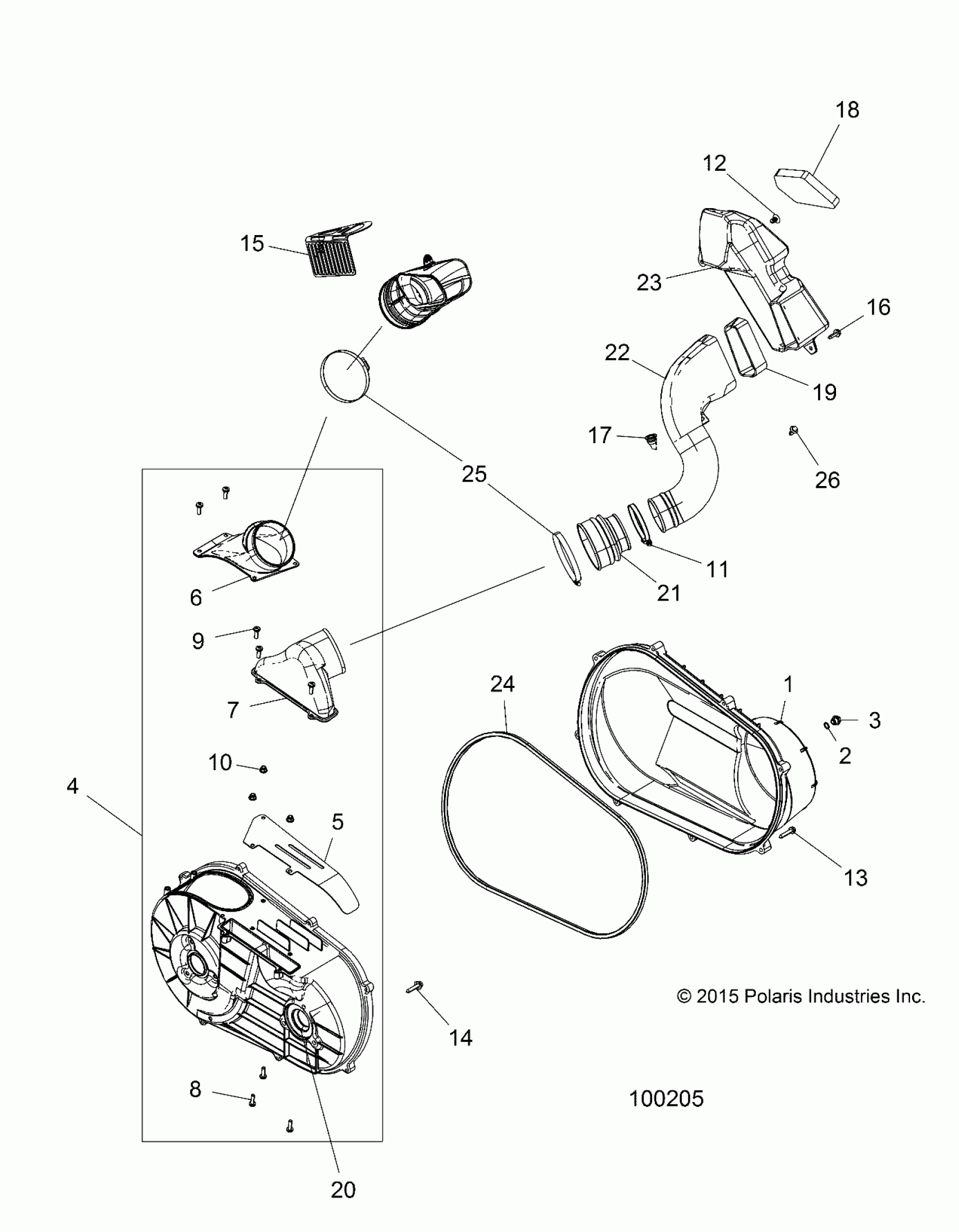

Polaris ACE 900 EFI EPS (R10) - A16DAE87AL DRIVE TRAIN, CLUTCH COVER AND DUCTING - A16DAE87AL (100205) Diagram
#
Description
Price
1
ASM., COVER, CLUTCH, OUTER [INCL. COVER, 2,3]
2634179
$175.99
2
O RING-.364X.504X.07
5410542
Unavailable
3
PLUG-DRAIN,CLUTCH COVER
5434264
$5.59
4
ASM-COVER,CLUTCH,INNER [INCL. 4-10]
2634863
$159.99
5
BRKT-GUARD,CLUTCH COVER
5256223
$35.99
6
DUCT-CLUTCH,AIR OUTLET
5450846
$39.99
7
DUCT-CLUTCH,AIR IN
5450051
$43.99
8
SCR-M6X1.0X20MM,TX,PH,8.8-B
7518546
$3.19
9
SCR-#14X3/4 HI/LO-PH-PN TRX-M
7519205
$1.59
10
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
$3.99
11
CLAMP-BAND,NARROW 60-80MM
7080707
$3.19
12
CLIP-PLASTIC DART, NYLON
7670088
$1.59
13
SCREW
7519849
$3.19
14
ASM., BOLT/WASHER
7519278
$4.79
15
BRACKET, SCREEN, BELT
5261811
$27.99
16
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
$1.49
17
PLUG-DRAIN
5414472
$5.59
18
FILTER, INTAKE, FOAM
5814026
$12.79
19
SEAL, FOAM
5814033
$11.99
20
SEAL-COVER,PTO
5813708
$23.99
21
BOOT-CLUTCH,INLET
5415544
$14.39
22
DUCT-CLUTCH,AIR IN
5452289
$51.99
23
BOX, INTAKE, CLUTCH,LH
5450727
$71.99
24
SEAL, OUTER
5521831
Unavailable
25
CLAMP-WORM DRIVE,3.69 DIA
7081626
$7.99
26
Rivet
7661855
$1.49
