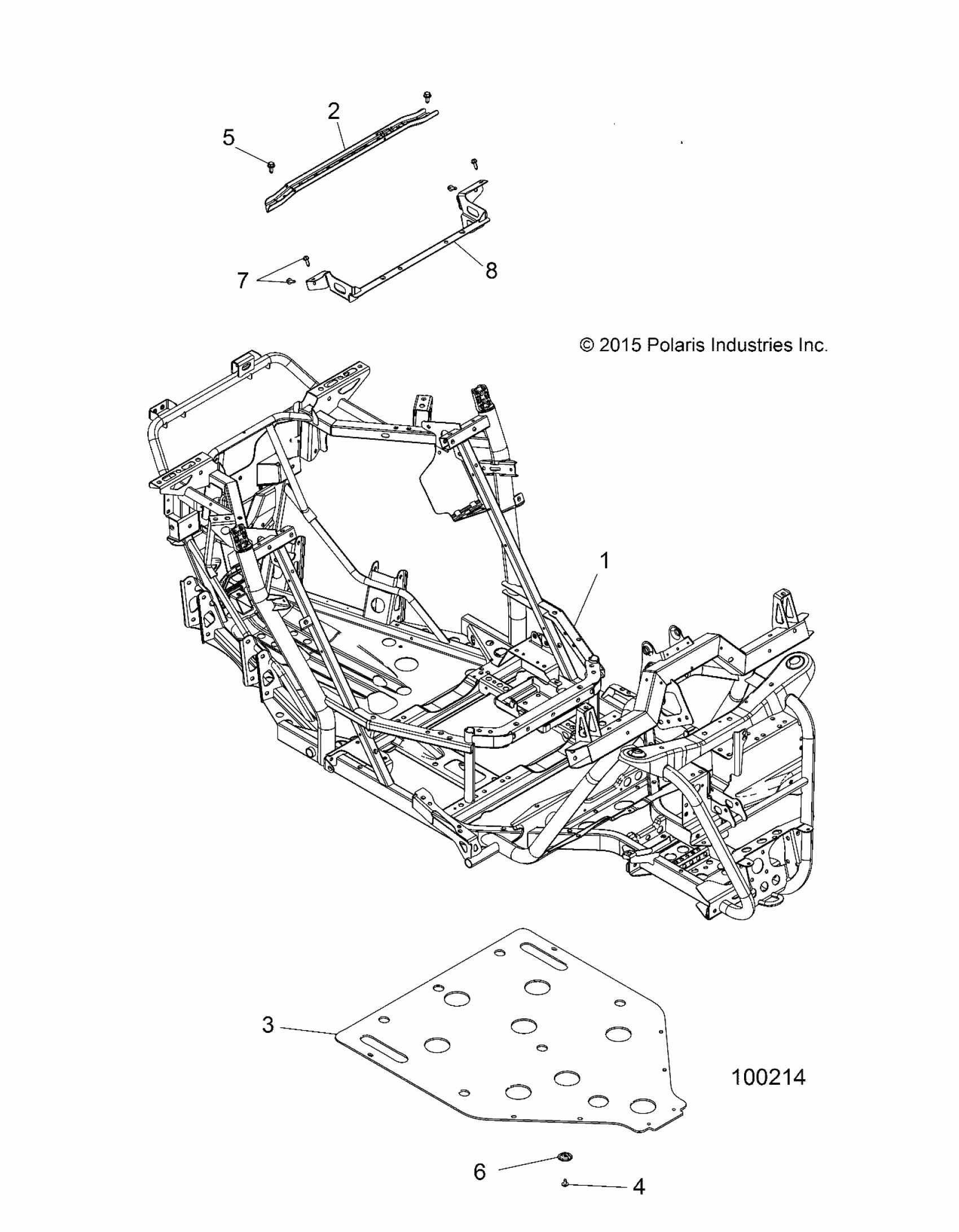

Polaris ACE 900 EFI EPS (R10) - A16DAE87AL CHASSIS, MAIN FRAME AND SKID PLATE - A16DAE87AL (100214) Diagram

#

Description

Price

1

FRAME, MAIN, MATTE BLACK

1021628-458

$2,662.49

2

BRACKET, BRACE, REAR, BLACK

5261168-329

$69.99

3

PLATE, SKID

5813900

$107.14

4

SCREW

7518936

$3.97

5

BOLT

7518555

$2.38

6

WASHER-SKID PLATE

7556065

$4.76

7

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

8

WELD-SUPPORT,AIRBOX,E-COAT

1021540-329

$93.32
