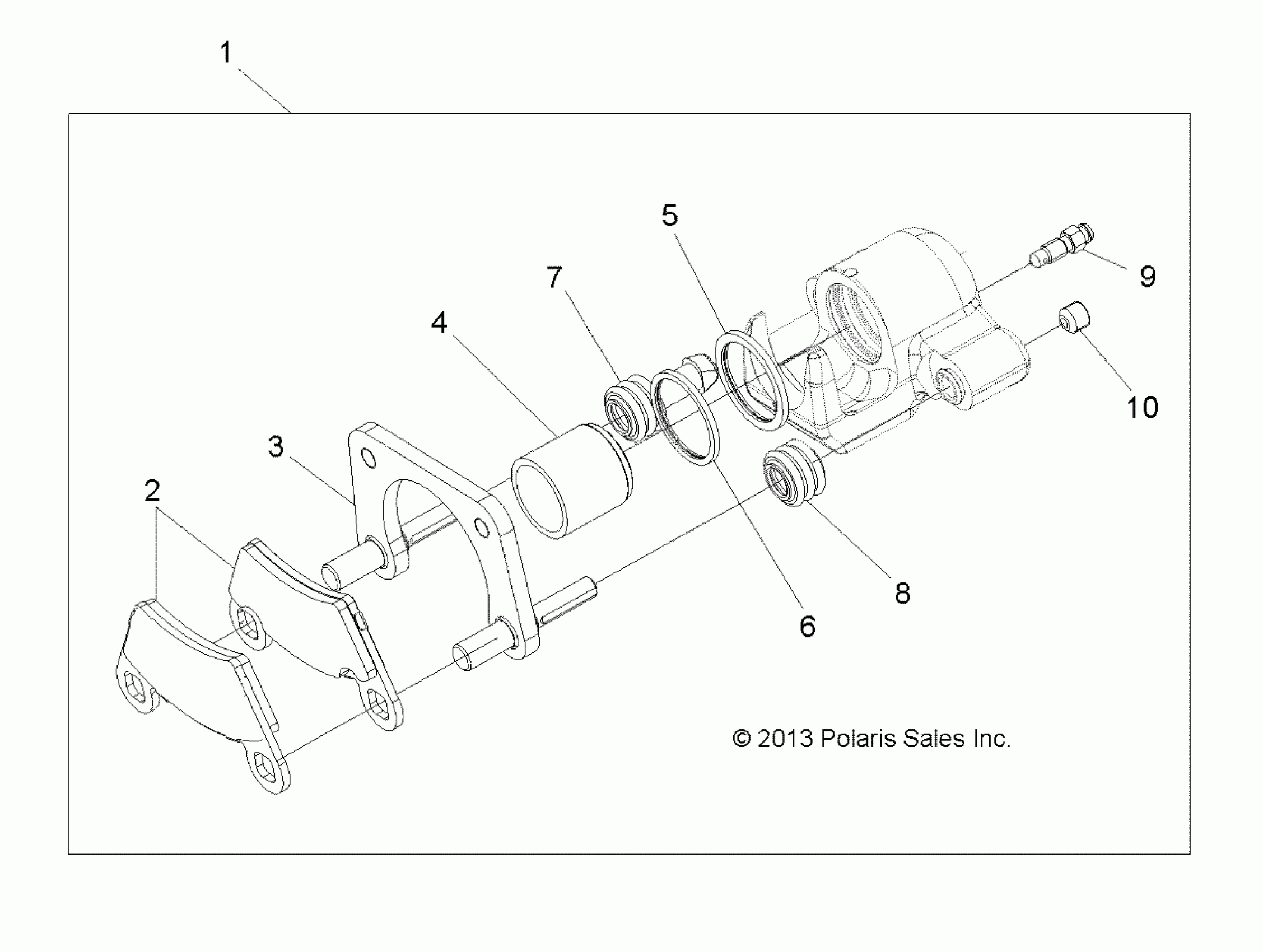

Polaris ACE 900 EFI EPS (R10) - A16DAE87AL BRAKES, CALIPER, REAR - A16DAE87AL (49ATVCALIPERRR14SP325) Diagram

#

Description

Price

1

ASM., CALIPER, LH, REAR

1912028

$179.99

1

ASM., CALIPER, RH, REAR

1912029

$179.99

2

KIT-BRAKE PAD,ASM,1.5 [INCL. 2 SETS, 4 PADS]

2202413

$55.99

2

K-ASM,HD,PAD, BRK,1.5 (HEAVY DUTY) �OPTION][2 PADS PER KIT]

2208934

$63.99

3

ASM-CALIPER MOUNT,REAR,METRIC

1911375

$35.99

4

PISTON-CALIPER,1.25

5132405

$31.99

5

SEAL-CALIPER,INNER,1.25"

5411596

$3.99

6

SEAL, CALIPER, OUTER

5411597

$6.39

7

BOOT-PIN BUSHING

5412505

$3.19

8

BOOT-PIN SEAL

5412506

$3.19

9

SCREW

7081343

$5.59

10

SCREW

7518863

$9.59
