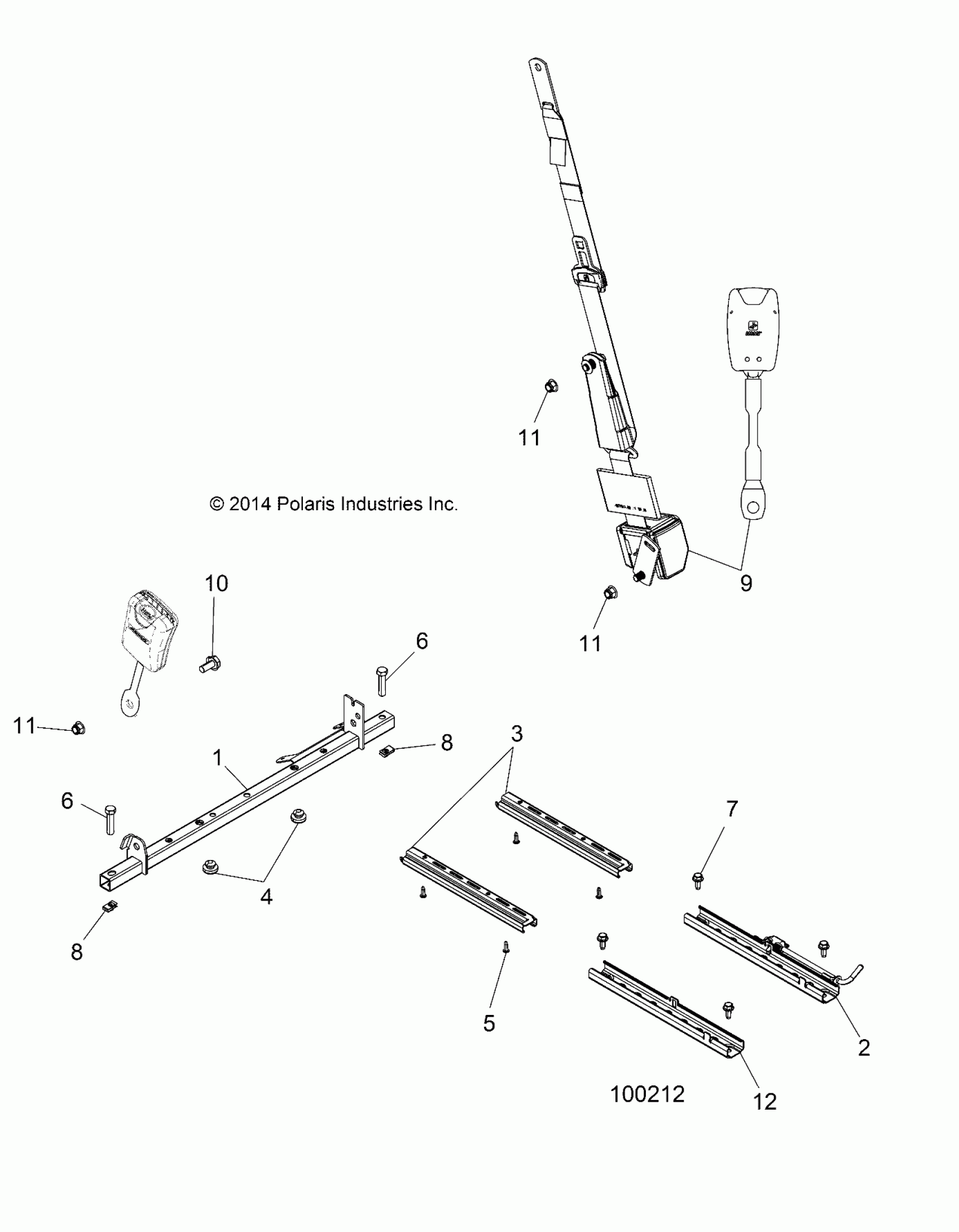

Polaris ACE 900 EFI EPS (R10) - A16DAE87AL BODY, SEAT MOUNTING AND BELT - A16DAE87AL (100212) Diagram

#

Description
Price

1

WELD-SEAT BASE,REAR,BACK,M.BLK

1021745-458

$101.19

2

SLIDER, SEAT

1021378

$84.99

3

GUIDE, SEAT

5260810

Unavailable

4

BUMPER-RUBBER

5412067

$3.99

5

SCREW

7515177

$3.19

6

SCREW, HXFL

7519906

$4.79

6

SCREW, HXFL

7519906

$4.79

7

BOLT, FLANGE

7518555

$2.39

8

NUT, U

7547748

$4.79

8

NUT, U

7547748

$4.79

9

KIT, SEAT BELT, 3 POINT

2880129

$175.99

9

BUCKLE-SEATBELT,SWITCH

2635937

$35.19

10

SCREW

7519072

$5.59

11

NUT

7547441

$4.79

11

NUT

7547441

$4.79

11

NUT

7547441

$4.79

12

CHANNEL, SEAT SLIDER

5260809

$43.99
