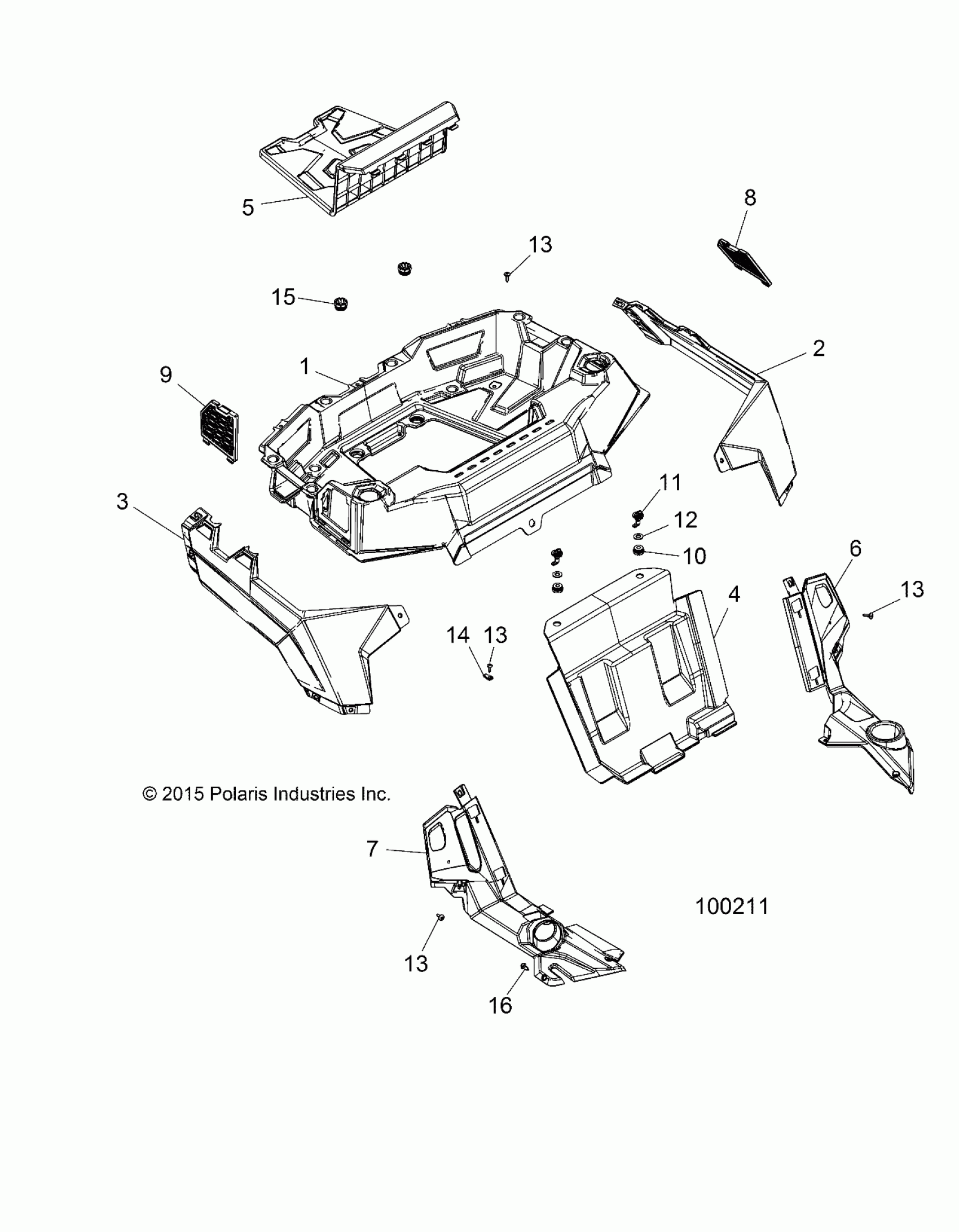

Polaris ACE 900 EFI EPS (R10) - A16DAE87AL BODY, REAR RACK AND FENDERS - A16DAE87AL (100211) Diagram

#

Description
Price

1

BOX, CARGO, REAR, BLACK

5452246-070

$264.99

2

FENDER-REAR,LH,PNTD,S.BLK

5451416-464

$294.99

3

FENDER-REAR,RH,PNTD,S.BLK

5451417-464

$294.99

4

PANEL, CLOSE OFF, BLACK

5452245-070

$113.48

5

BOX, MAINT PANEL, REMOVABLE, BLACK

5452377-070

$65.46

6

PANEL, UNDERSEAT COVER, LH, BLACK

5450299-070

$59.52

7

PANEL, UNDERSEAT COVER, RH, BLACK

5450589-070

$60.70

8

GRILL, INTAKE COVER, LH, BLACK

5450392-070

$54.99

9

GRILL, INTAKE COVER, RH, BLACK

5450393-070

$54.99

10

GROMMET-LATCH

5413428

$3.17

11

LATCH, 1/4 TURN

5451143

$13.32

12

WASHER

7555919

$4.99

13

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

13

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

13

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

13

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

14

NUT, U-TYPE

7547674

$1.19

15

GROMMET

5412507

$6.35

16

Rivet

7661855

$1.19
