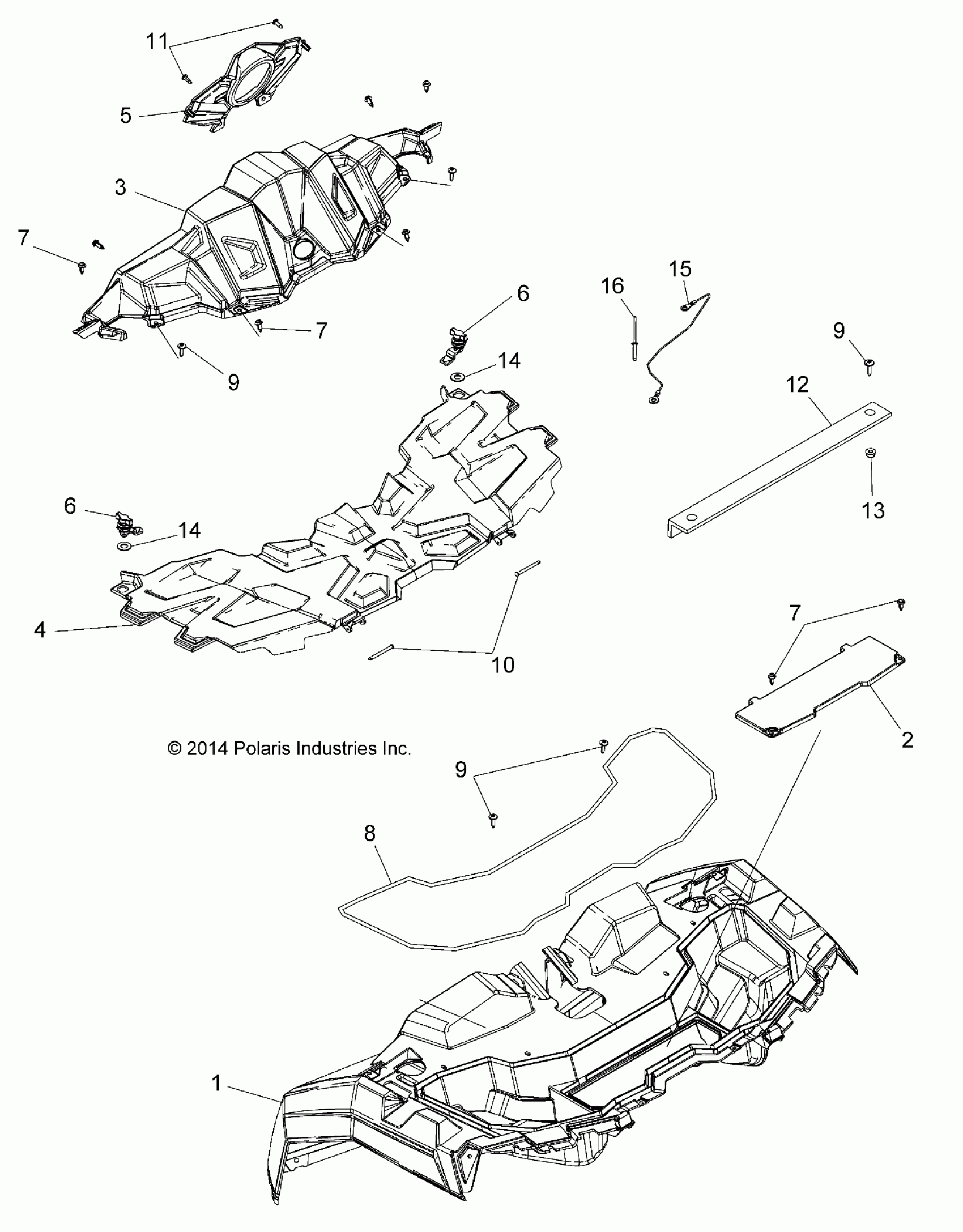

Polaris ACE 900 EFI EPS (R10) - A16DAE87AL BODY, HOOD AND FRONT BODY WORK - A16DAE87AL (49ATVCAB15ACE570) Diagram

#

Description
Price

1

ASM-CAB,FR,SVC,PNTD,S.BLK [INCL. WARNING DECAL]

2635431-464

$2,799.99

2

PANEL, ACCESS, BLACK

5450063-070

$36.41

3

PANEL, CAB, UPPER, BLACK

5450064-070

$145.70

4

COVER, BOX, FRONT, BLACK

5450073-070

$164.43

5

PANEL, INSTRUMENT, UPPER, BLACK

5450092-070

$40.46

6

LATCH-1/4 TURN,CAM

7081425

$7.60

6

LATCH-1/4 TURN,CAM

7081425

$7.60

7

Rivet

7661855

$1.19

7

Rivet

7661855

$1.19

7

Rivet

7661855

$1.19

8

SEAL, BOX, FRONT

5522023

$74.99

9

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

9

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

9

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

10

Pin, Hinge, Front

5134576

$6.35

11

SCREW

7519045

$3.17

12

BRACE, ANGLE

5259456-329

Unavailable

13

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

14

WASHER

7556042

$0.79

14

WASHER

7556042

$0.79

15

CABLE, LID, FRONT

7082043

$36.41

16

RIVET

7621334

$1.49
