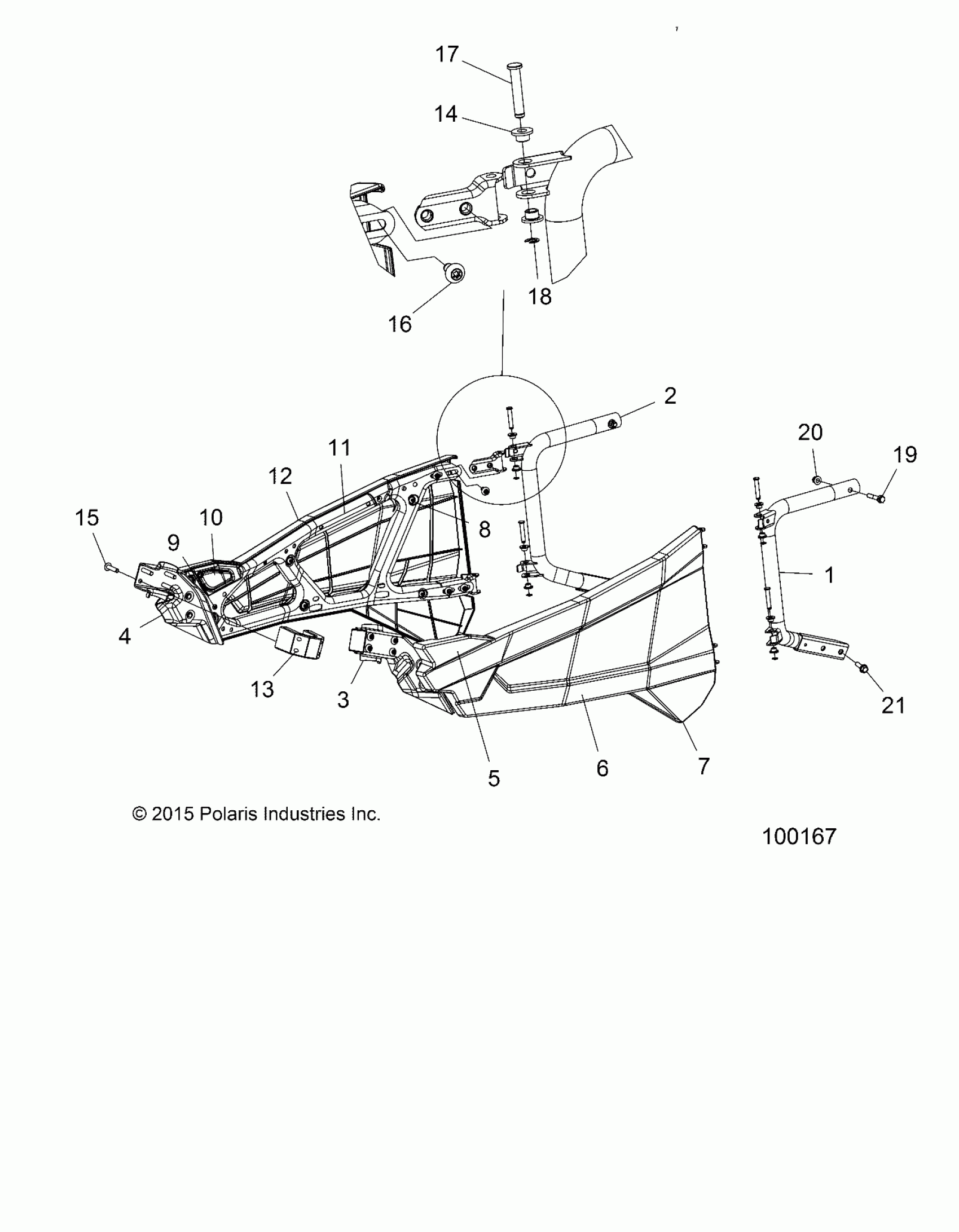

Polaris ACE 900 EFI EPS (R10) - A16DAE87AL BODY, DOORS (FROM 10/2/15) - A16DAE87AL (100167) Diagram

#

Description
Price

1

WELD-BOLSTER,LH,ACE,BLK

1021748-458

Unavailable

2

WELD-BOLSTER,RH,ACE,BLK

1021749-458

Unavailable

3

WELD-BRKT,MT,DR LTCH,LH,BLK

1021750-458

Unavailable

4

WELD-BRKT,MT,DR LTCH,RH,BLK

1021751-458

Unavailable

5

ASM-LATCH,DOOR,LH

2635305

Unavailable

6

STAMPING DOOR FRAME,LH,BLK

5257929-458

$147.99

7

DOOR SKIN, LH

5450636

$119.99

8

SCR-TX TRUSS-#14X3/4,HI/LO ZBK

7519045

$3.19

9

SCR-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

10

ASM-LATCH,DOOR,RH

2635306

Unavailable

11

STAMPING DOOR FRAME,RH,BLK

5257930-458

$147.99

12

DOOR SKIN,RH

5450638

$119.99

13

MACH-CLAMP,DOOR,ACE

5140136

$51.99

13

MACH-CLAMP,DOOR,ACE

5140310

$51.99

14

BUSHING-DOOR PIVOT

5450592

$2.39

15

SCR-TXTH-M8X1.25X60,ZB

7520367

$4.79

16

SCR-TXTH-M8X1.25X20 8.8 ZB3 P3

7519997

$3.99

17

PIN-DOOR HINGE

7662138

$4.79

18

E-CLIP,M6, DIN 6799

7710466

$3.19

19

SCREW

7520367

$4.79

20

Nut, Flange

7547317

Unavailable

21

SCREW

7519243

$3.99
