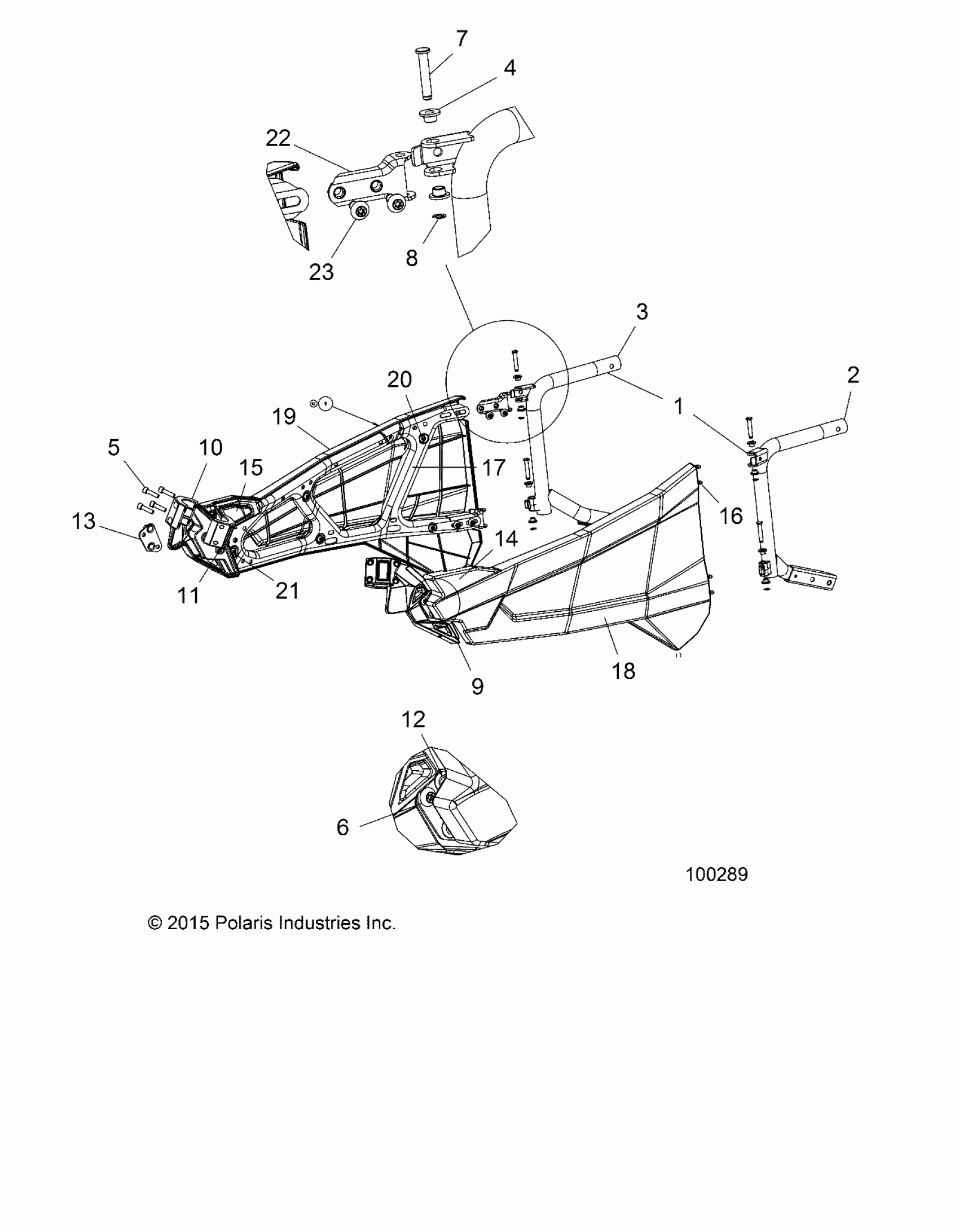

Polaris ACE 900 EFI EPS (R10) - A16DAE87AL BODY, DOORS (BUILT 10/1/15 AND BEFORE) - A16DAE87AL (100289) Diagram

#

Description
Price

1

KIT,SVC,BOLSTERS,LH/RH,ACE

2205778

Unavailable

2

WELD-BOLSTER,LH

1020141

$143.99

3

WELD-BOLSTER,RH

1020142

$143.99

4

BUSHING-DOOR PIVOT

5450592

$2.39

5

SCR-SH-M8X1.25X30 8.8 ZPC

7517361

$23.99

6

SCR-TXTH-M8X1.25X20 8.8 ZB3 P3

7519997

$3.99

7

PIN-DOOR HINGE

7662138

$4.79

8

E-CLIP,M6, DIN 6799

7710466

$3.19

9

CASTING-LATCH MOUNT,LH

5633089

Unavailable

10

CASTING-LATCH MOUNT,RH

5633090

Unavailable

11

CASTING-LATCH MOUNT,INNER

5633091

$71.99

12

ASM-STRIKER,LH

2634931

$19.99

13

ASM-STRIKER,RH

2634968

$19.99

14

ASM-LATCH,DOOR,LH

2635305

Unavailable

15

ASM-LATCH,DOOR,RH

2635306

Unavailable

16

STAMPING DOOR FRAME,LH,BLK

5257929-458

$147.99

17

STAMPING DOOR FRAME,RH,BLK

5257930-458

$147.99

18

DOOR SKIN, LH

5450636

$119.99

19

DOOR SKIN,RH

5450638

$119.99

20

SCR-TX TRUSS-#14X3/4,HI/LO ZBK

7519045

$3.19

21

SCR-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

22

BRKT-DOOR HINGE

5258008

Unavailable

23

SCREW

7519997

$3.99
