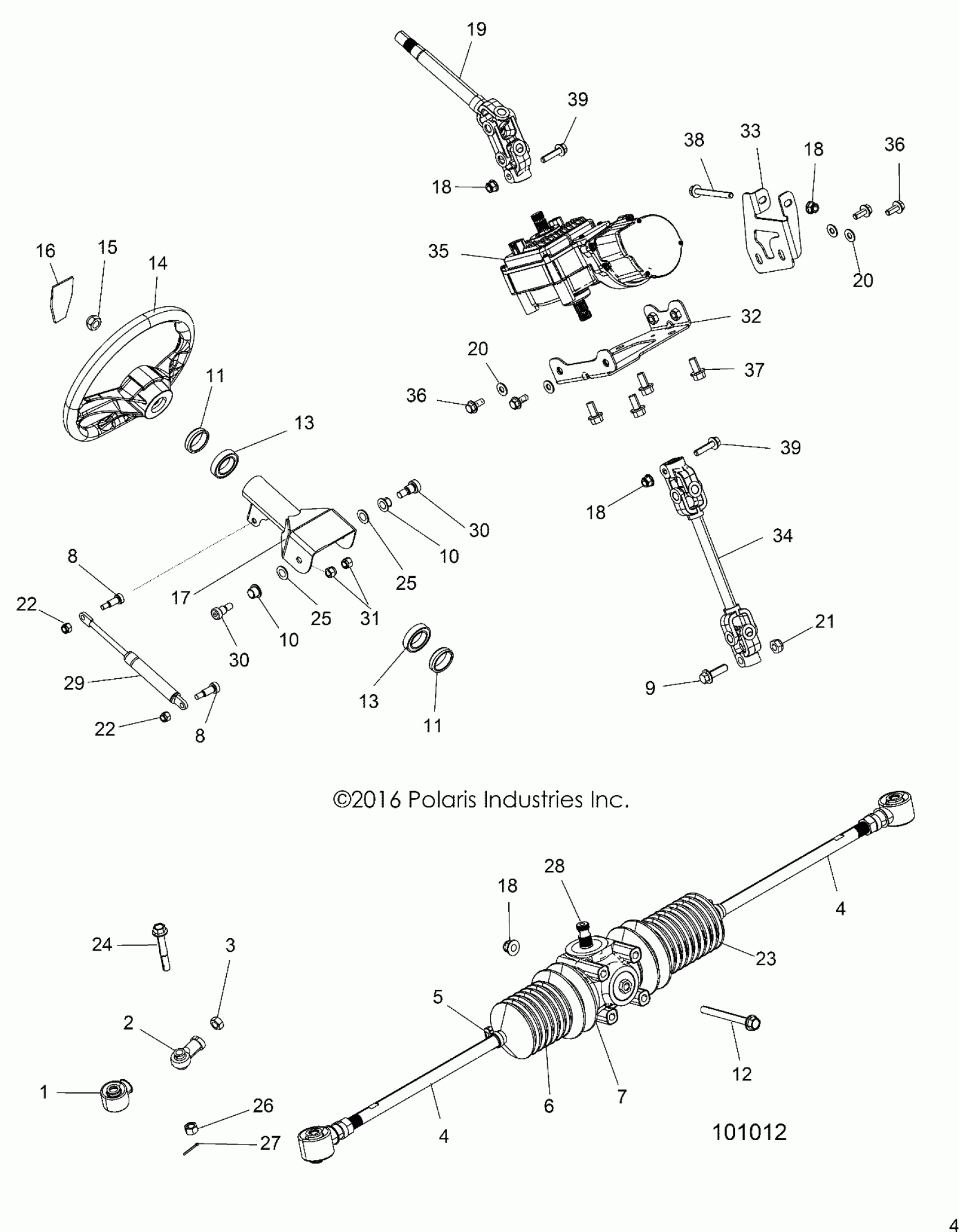

Polaris ACE 570 SP (R11) - A17DAE57AM STEERING, STEERING ASM. - A17DAE57AM (101012) Diagram

#

Description
Price

1

BOOT, SEAL, ROD END

-------

Unavailable

2

ROD END

7061189

$67.99

3

NUT, JAM, LH

2205058

$23.99

4

TIE ROD, INNER

-------

Unavailable

4

TIE ROD, INNER

-------

Unavailable

5

CLAMP, BOOT, SMALL

7080978

$2.39

6

BOOT, STEERING RACK

5412012

$59.99

7

CLAMP, BOOT, LARGE

7080979

$5.59

8

BOLT, SHOULDER

7518786

$2.39

8

BOLT, SHOULDER

7518786

$2.39

9

SCREW

7518644

$4.79

10

BUSHING, TILT STEERING

5439154

$3.19

10

BUSHING, TILT STEERING

5439154

$3.19

11

BUSHING-STEERING

7556675

$14.95

11

BUSHING-STEERING

7556675

$14.95

12

SCREW

7519217

$1.59

13

BEARING-STEERING

3514686

$9.59

13

BEARING-STEERING

3514686

$9.59

14

WHEEL, STEERING

1824014

Unavailable

15

NUT

7547506

$4.39

16

CAP-STEERING WHEEL,BLK

5450255-070

$19.99

17

ASM-PIVOT TUBE,M.BLK [INCL. 13]

1022896-458

$47.99

18

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

18

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

18

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

18

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

19

SHAFT, STEERING, EPS, UPPER

1824286

$155.99

20

WASHER

7555960

$3.99

20

WASHER

7555960

$3.99

21

NUT, NYLOK

7547385

$1.49

22

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

22

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

23

BOOT, STEERING RACK

5412012

$59.99

24

SCR-HXFL

7519854

$15.99

25

WASHER

7555919

$4.99

25

WASHER

7555919

$4.99

26

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

27

Pin, Cotter

7661203

$1.49

28

ASM-GEARBOX,STEERING,17T [INCL. 2-7,23]

1824540

$501.59

29

ASM-SHOCK,TILT STEERING,SHORT

7044699

$79.41

30

SCREW

7519355

$10.39

30

SCREW

7519355

$10.39

31

NUT, NYLOK

7547442

$3.99

32

BRACKET, BASE, EPS

1020912-329

$100.31

33

BRACKET, EPS, LH

5260034-329

$39.99

34

SHAFT-STEERING,EPS,LOWER,17T

1824549

$131.99

35

ASM-POWER STEERING

2413701

$1,839.19

36

BOLT

7518450

$1.59

36

BOLT

7518450

$1.59

37

BOLT

7518558

$3.99

38

SCREW

7518955

$3.19

39

SCREW

7519052

$1.59

39

SCREW

7519052

$1.59
