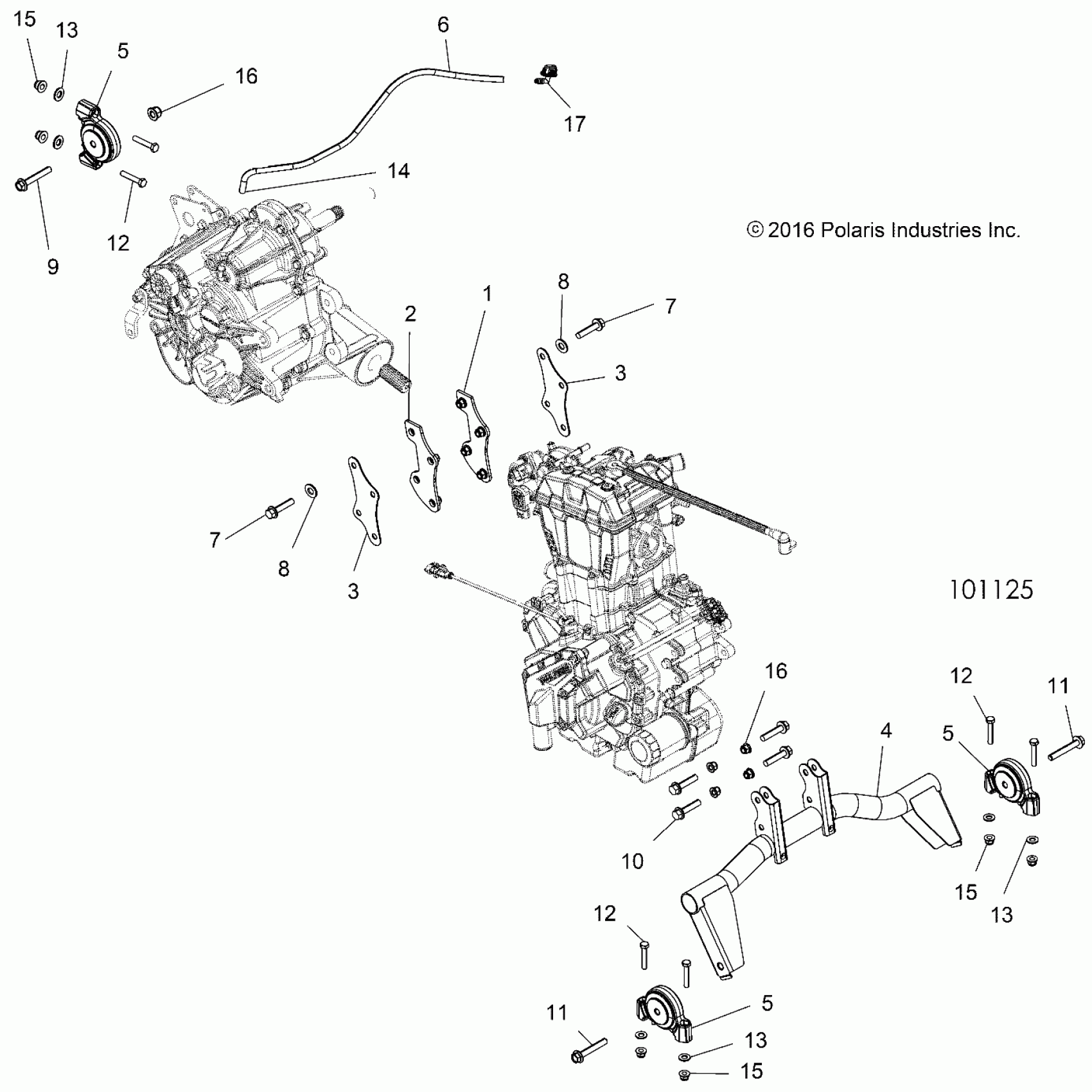

Polaris ACE 570 SP (R11) - A17DAE57AM ENGINE, TRANSMISSION MOUNTING & LONG BLOCK - A17DAE57AM (101125) Diagram

#

Description
Price

-

KIT, ASM. LONG BLOCK [NOTE: THE LONG BLOCK ASSEMBLY CONTAINS A CRANKCASE, BALANCE SHAFT, CYLINDER HEAD, PISTON AND CRANKSHAFT ASSEMBLIES. ALSO INCLUDES THE SEALS, SPARK PLUG, VALVE COVER AND OIL PUM

2205747

$4,597.99

1

TRANSMISSION, INNER, LEFT

1018420

$64.75

2

TRANSMISSION, INNER, RIGHT

1018421

$64.75

3

BRKT-COUPLER,TRANS,OUTER

5255321

$10.51

3

BRKT-COUPLER,TRANS,OUTER

5255321

$10.51

4

MOUNT, ENGINE, FRONT, E-COAT

1021995-329

$159.75

5

MOUNT-ISOLATOR,DRIVELINE

1332955

$72.84

5

MOUNT-ISOLATOR,DRIVELINE

1332955

$72.84

5

MOUNT-ISOLATOR,DRIVELINE

1332955

$72.84

6

FUEL LINE-1/4 ID (SVC),600 CM

8450040-600

Unavailable

6

CLIP-SILENCER BOX-C,98 INDY

7670102

$2.38

7

SCREW

7518971

$6.35

7

SCREW

7518971

$6.35

8

WASHER

7556153

$1.98

8

WASHER

7556153

$1.98

9

BOLT

7518563

$3.17

10

SCREW

7519332

$5.56

11

BOLT

7518826

$4.76

11

BOLT

7518826

$4.76

12

SCREW

7519097

$1.59

12

SCREW

7519097

$1.59

12

SCREW

7519097

$1.59

13

Nut, Pal

7547030

$4.76

13

Nut, Pal

7547030

$4.76

13

Nut, Pal

7547030

$4.76

14

CLAMP-HOSE, 17/32, GREEN

7081432

$3.97

15

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

15

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

15

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

16

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

16

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

17

FITTING-VENT LINE,90

5453464

$5.56
