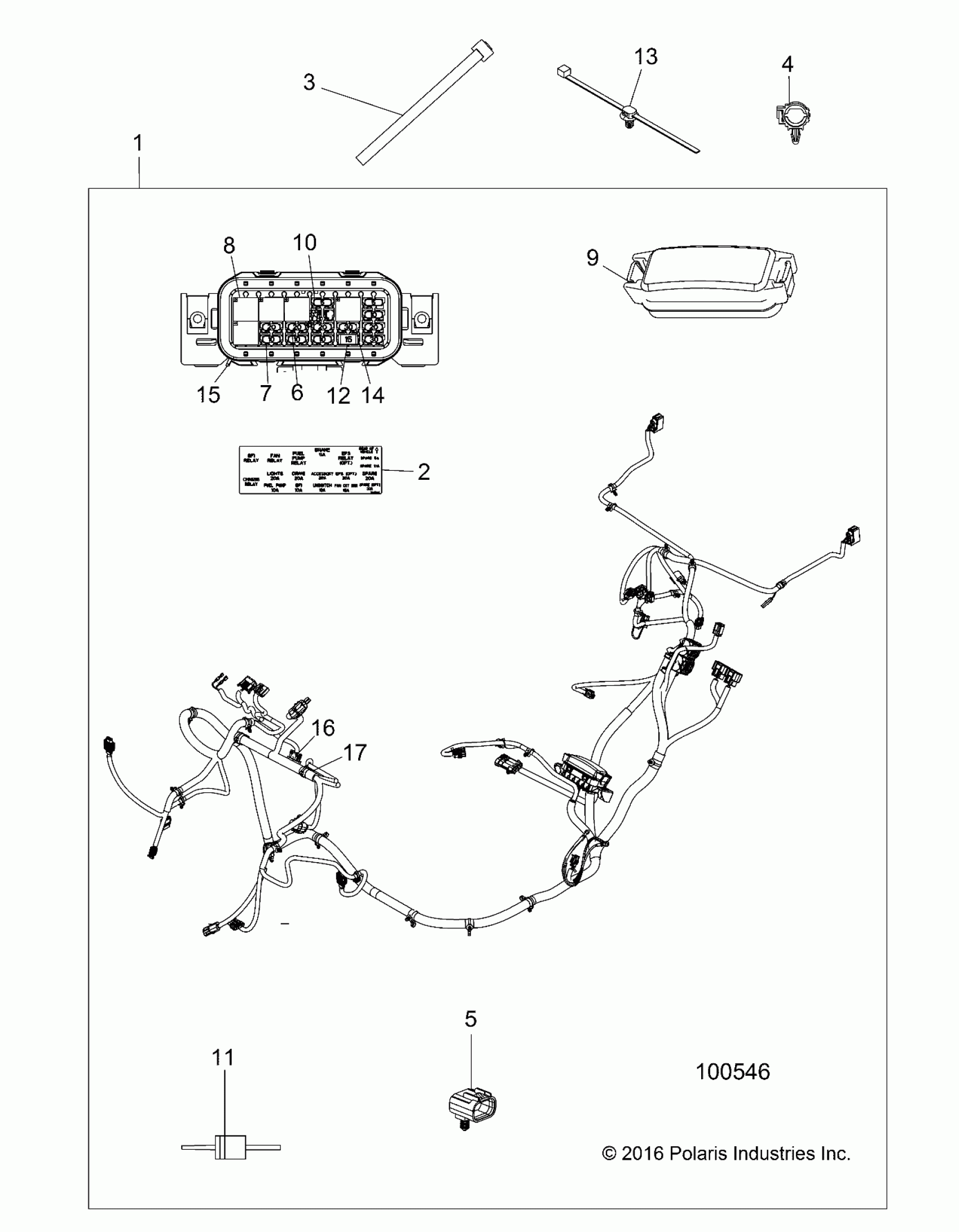

Polaris ACE 570 SP (R11) - A17DAE57AM ELECTRICAL, WIRE HARNESS - A17DAE57AM (100546) Diagram

#

Description
Price

1

HARNESS-CHASSIS,ACE ETC PS [TO 10/17/16]

2413028

$919.59

1

HARNESS-CHASSIS,ACE ETC PS [FROM 10/17/16]

2413861

$919.59

2

LABEL-FUSE BOX

7182082

Unavailable

3

CABLE-TIE,DIA12-50MM,WTHR-RES. 7"

7080138

$2.41

3

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

4

Clip, Rosebud

4020149

$6.39

5

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

6

FUSE-PARK,20 AMP

2434017

Unavailable

7

FUSE-IGNITION,10 AMP

2434016

$4.79

8

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

9

COVER, FUSEBOX

4015011

$55.99

9

SEAL, FUSE CENTER

5415598

$8.79

10

FUSE-5A,MINI BLADE

4011652

Unavailable

11

DIODE, 6 AMP W/TERMINALS

2411035

$51.99

12

BREAKER, 15 AMP

4011406

$63.99

13

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

14

FUSE-MAIN,30 AMP

2434015

$7.19

15

FUSEBOX

4015056

$35.99

16

CAP, EPS POWER

4014236

$9.59

17

CAP, EPS SIGNAL

4014235

$7.99
