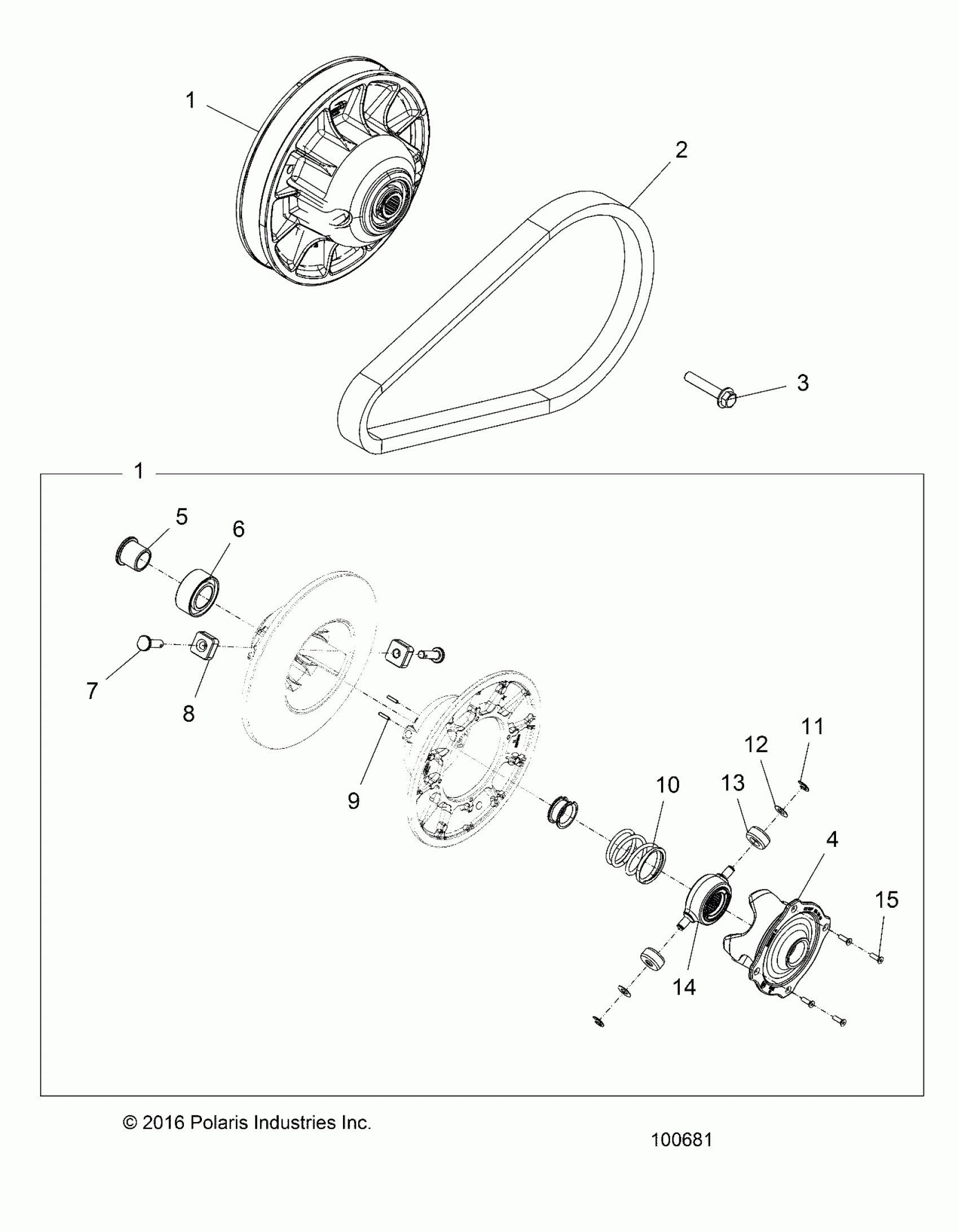

Polaris ACE 570 SP (R11) - A17DAE57AM DRIVE TRAIN, SECONDARY CLUTCH - A17DAE57AM (100681) Diagram

#

Description
Price

1

ASM-DRIVEN 30MM,BTD,BASIC [DOES NOT INCLUDE 4 & 10]

1323403

$603.24

1

ASM-DRIVEN 30MM,BTD,BASIC [DOES NOT INCLUDE 4 & 10]

1323403

$603.24

2

BELT-DRIVE

3211149

$161.49

2

BELT-DRIVE,10.5CD,HDY [HD OPTION]

3212359

$246.99

3

SCR-HXFL-M10X1.25X60 10.9 ZOD

7519306

$5.56

4

ASM-CAM

3236036

Unavailable

5

BUSHING-CLUTCH,4140,TOPHAT

3235999

$44.99

6

BRNG-BALL ANGULAR,OIL,30X55X23

3514925

$37.99

7

PIN

3234201

$15.87

8

PUCK, SQUARE

3514926

$12.94

9

PIN,SPRING SLOTTED .125X.625

3234202

$3.97

10

SPRING

7044505

$12.94

11

RET.E-RING-E T.375-TEAM#130059

7710523

$3.49

12

WASHER

7556226

$5.65

13

ROLLER

3514929

$28.32

14

SPIDER-BTD,25T,MACH

5140135

$79.99

15

SCREW-HELIX, PATCH

3234754

$5.56
