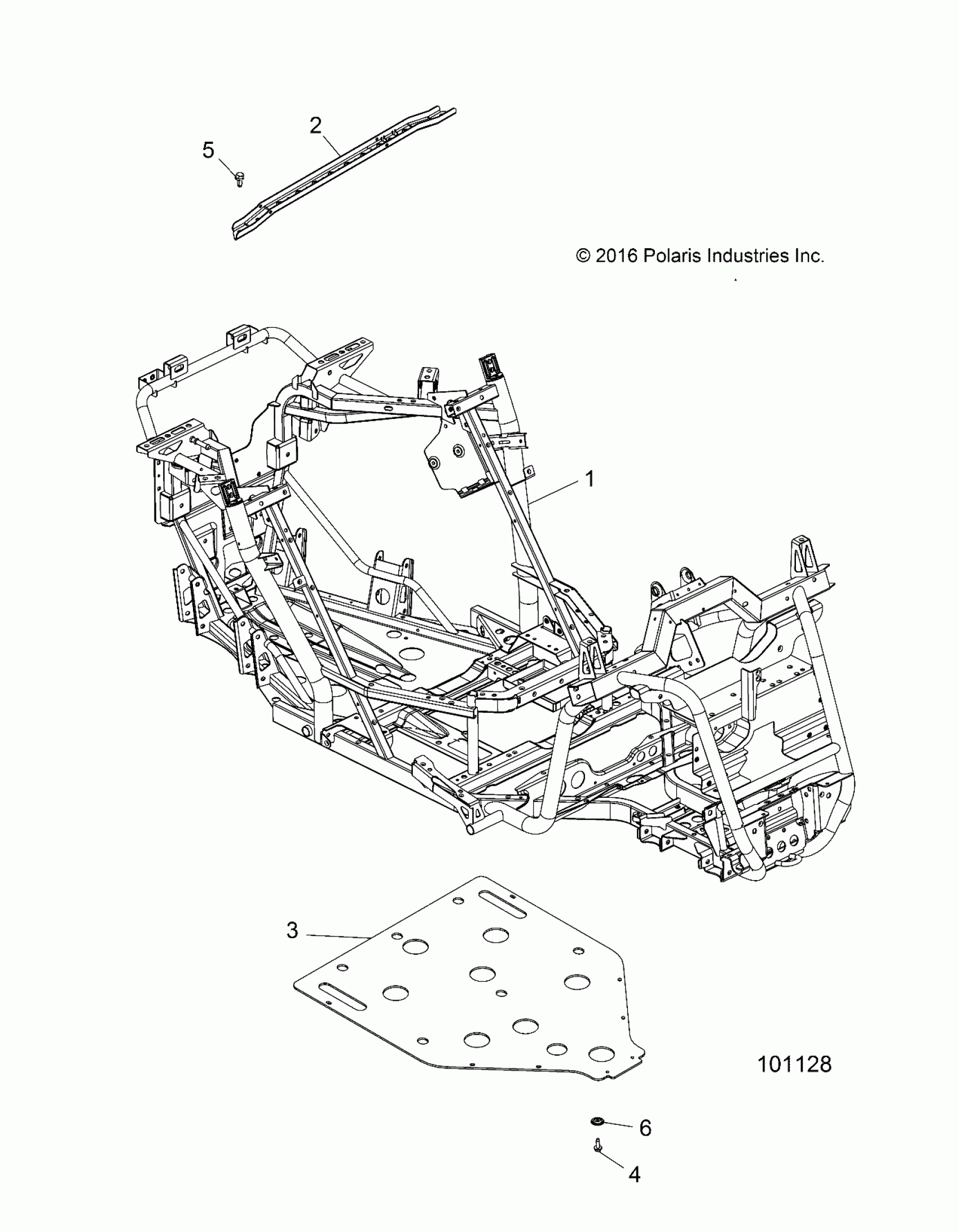

Polaris ACE 570 SP (R11) - A17DAE57AM CHASSIS, MAIN FRAME AND SKID PLATE - A17DAE57AM (101128) Diagram

#

Description

Price

1

WELD-MAIN FRAME,M.BLK

1022423-458

$2,527.49

2

BRKT-REAR,BRACE,E-COAT

5263745-329

$48.40

3

PLATE, SKID

5813900

$107.14

4

SCREW

7518936

$3.97

5

BOLT

7518555

$2.38

6

WASHER-SKID PLATE

7556065

$4.76
