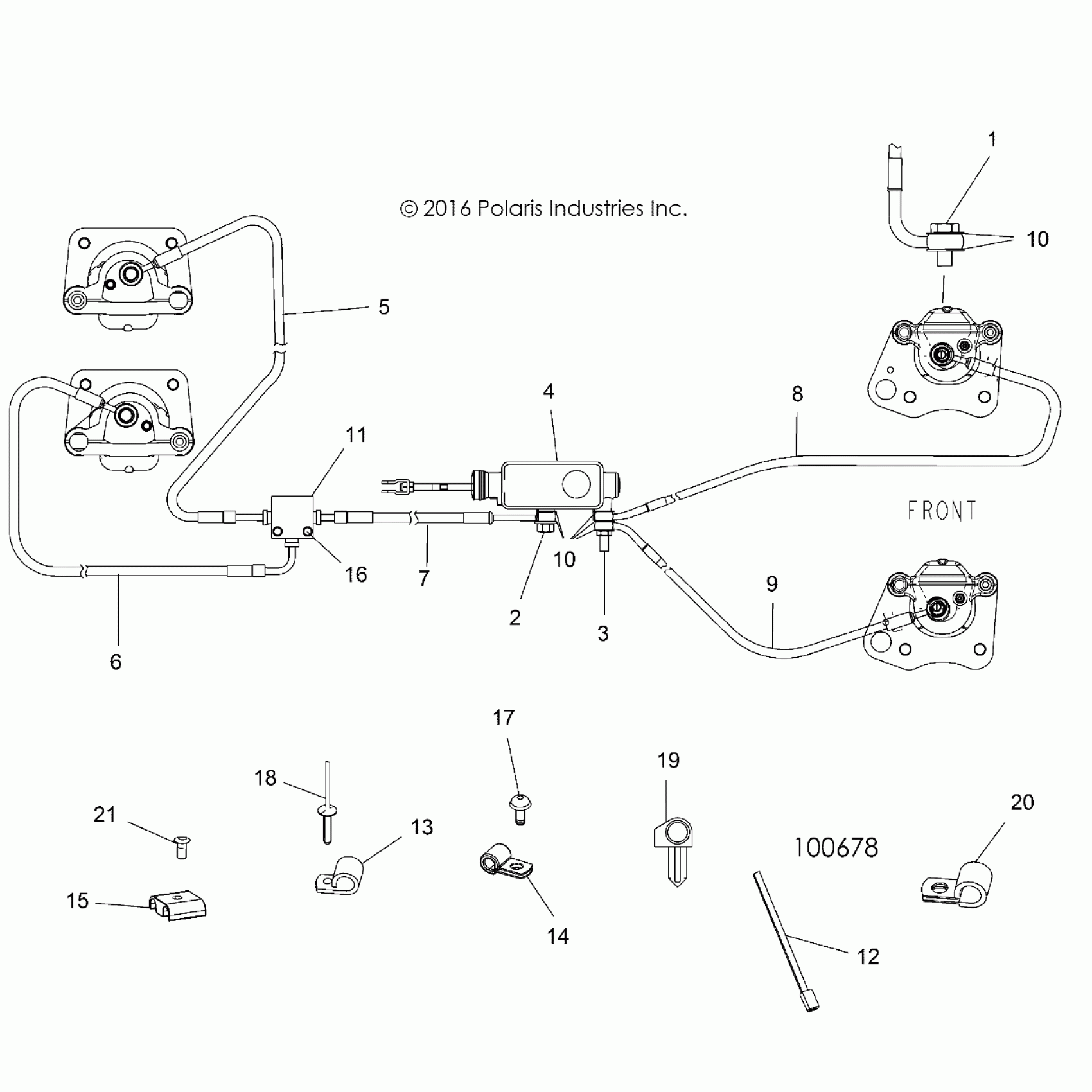

Polaris ACE 570 SP (R11) - A17DAE57AM BRAKES, BRAKE LINES AND MASTER CYLINDER - A17DAE57AM (100678) Diagram

#

Description
Price

1

BOLT, BANJO

1910499

$5.59

2

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.99

3

SWITCH-BRK,M10X1.25,DBL,SEALED

4014225

$87.99

4

ASM-M/CYL,TANDEM,5/8,SHORT,FLG

1912656

$123.99

5

LINE-BRK,RL,36,20F,70B,225,JF

1912679

$51.99

6

LINE-BRK,RR,43,90F,70B,45,JF

1912680

$59.99

7

LINE-BRK,MCT,68,20SB,20F,45,JF

1912681

$75.99

8

LINE-BRK,FL,34,70B,45B,140,JF

1912712

$87.99

9

LINE-BRK,FR,31,70B,45B,50,JF

1912713

$67.99

10

SEAL

5413212

$4.79

10

SEAL

5413212

$4.79

11

FITTING-TEE,BRAKE

7052293

$59.99

12

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

13

CLAMP, CABLE

7080499

$5.59

14

CLAMP-WIRE/TUBE .25 DIA

7081246

$1.49

15

CLIP, RETAINING, DUEL

7670126

$4.79

16

SCREW

7512025

$4.79

17

Screw

7512084

$1.49

18

Rivet

7621323

$1.49

19

Clip

7670102

$2.39

20

CLAMP-HOSE,.312DIA,VINYL COAT

7080683

$2.39

21

Screw

7517756

$1.49
