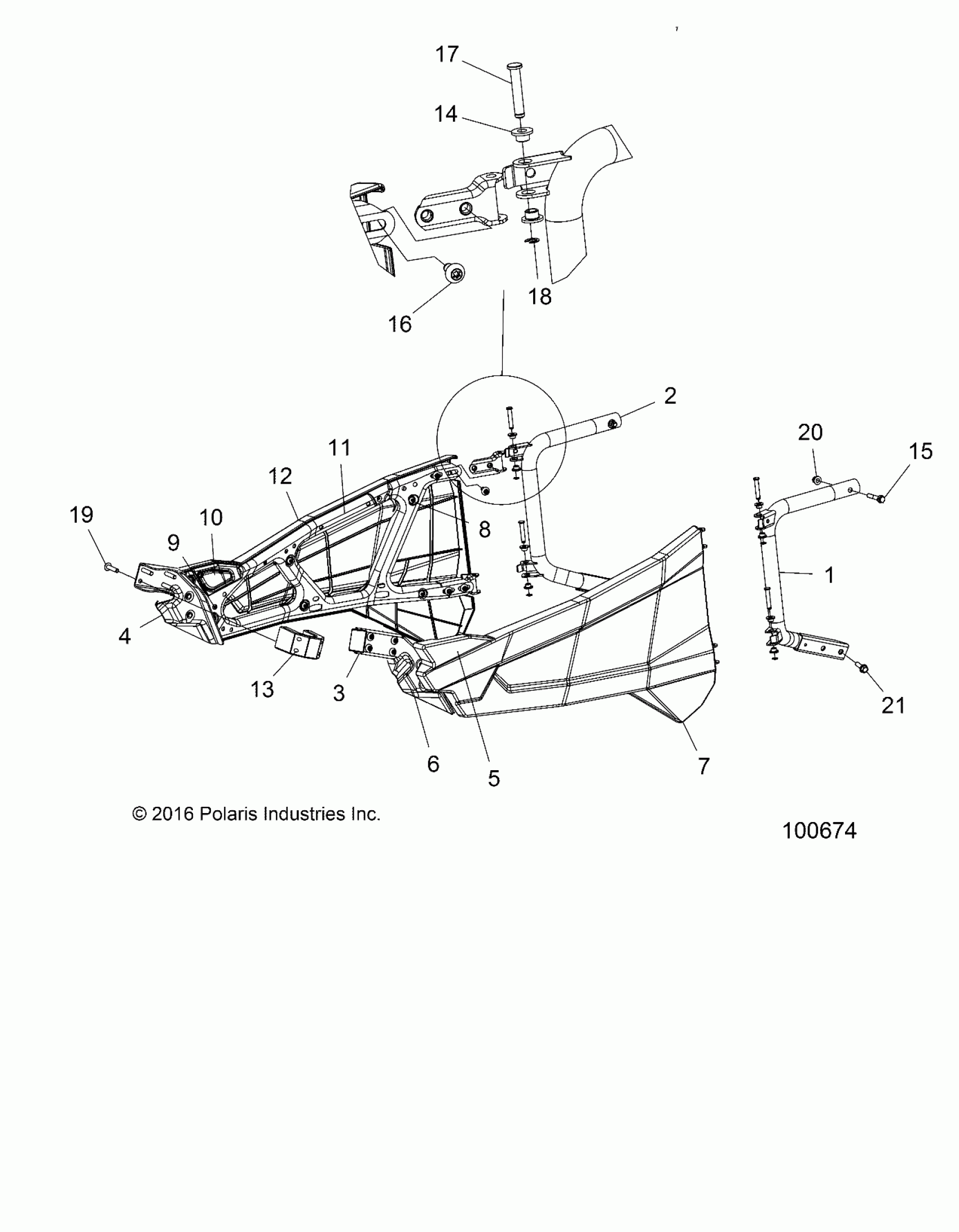

Polaris ACE 570 SP (R11) - A17DAE57AM BODY, DOORS - A17DAE57AM (100674) Diagram

#

Description
Price

1

WELD-BOLSTER,LH,ACE,BLK

1022810

$153.79

2

WELD-BOLSTER,RH,ACE,BLK

1022811

$153.79

3

WELD-BRKT,MT,DR LTCH,LH,ACE

1022817

$43.56

4

WELD-BRKT,MT,DR LTCH,RH,ACE

1022818

$43.56

5

ASM-LATCH,DOOR,LH

2636270

$90.24

6

STAMPING DOOR FRAME,LH,BLK

5257929-458

$157.84

7

DOOR SKIN, LH

5450636

$151.99

8

SCR-TX TRUSS-#14X3/4,HI/LO ZBK

7519045

$3.17

9

SCR-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

10

ASM-LATCH,DOOR,RH

2636271

$90.24

11

STAMPING DOOR FRAME,RH,BLK

5257930-458

$157.84

12

DOOR SKIN,RH

5450638

$151.99

13

MACH-CLAMP,DOOR,ACE

5140136

$61.89

13

MACH-CLAMP,DOOR,ACE

5140310

$61.89

14

BUSHING-DOOR PIVOT

5450592

$2.38

15

SCR-SH-M8X1.25X30 8.8 ZPC

7516732

$1.59

16

SCR-TXTH-M8X1.25X20 8.8 ZB3 P3

7519997

$3.97

17

PIN-DOOR HINGE

7662138

$4.76

18

E-CLIP,M6, DIN 6799

7710466

$3.17

19

SCREW

7520367

$4.76

20

Nut, Flange

7547317

$2.38

21

SCREW

7519243

$3.97
