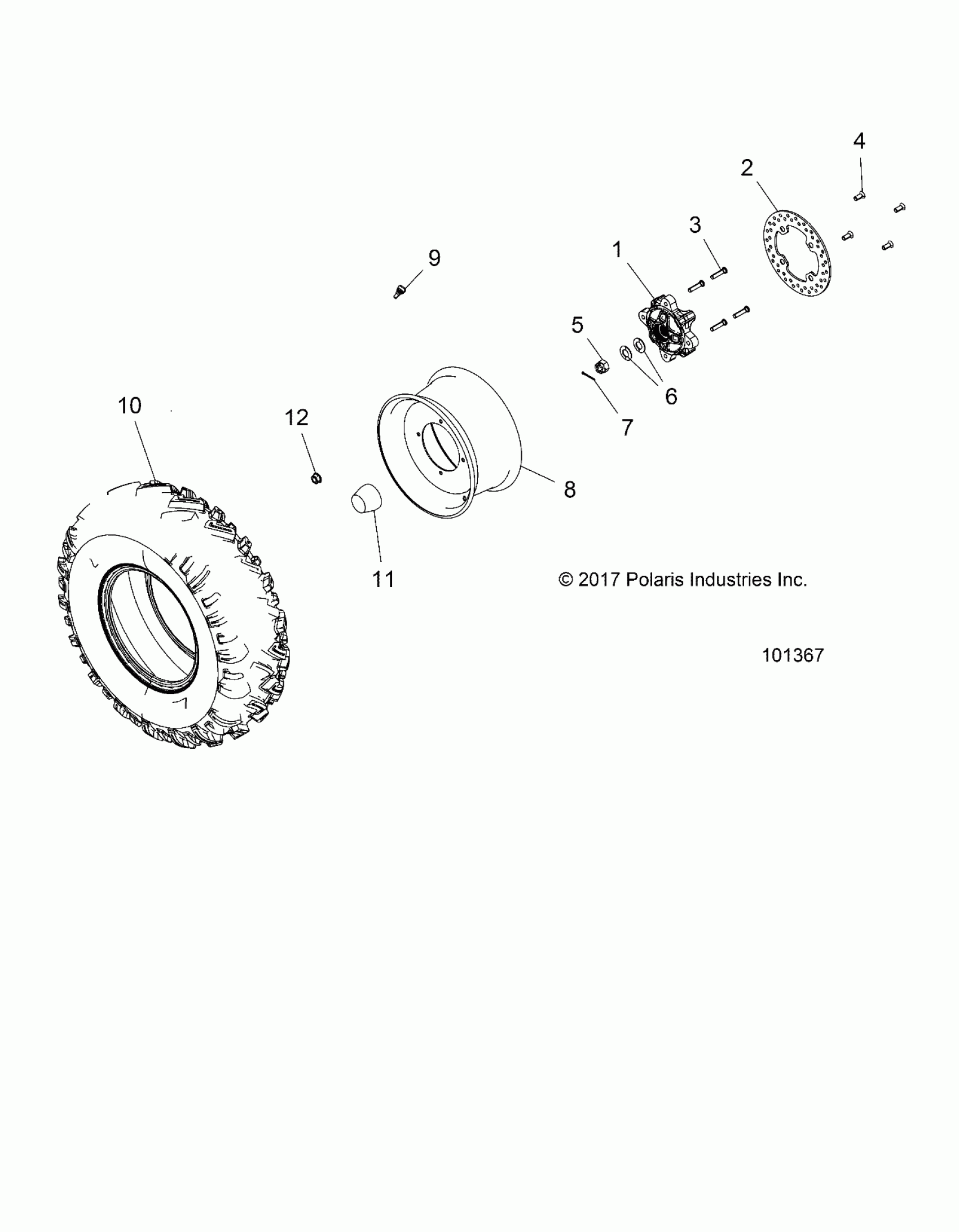

Polaris ACE 570 (R08) - A18DAE57B2 WHEELS, FRONT TIRE and BRAKE DISC - A18DAE57B2 (101367) Diagram

#

Description

Price

1

HUB-WHEEL,FRONT(MACH),BLK

5137659-067

$109.27

2

DISC-BRAKE, FRONT

5254999

$68.79

3

STUD-3/8-24X1.73,PRS FIT-2

7517871

$1.59

4

SCR-M10X1.5X20 8.8 TXCS FL ZOD

7518978

$3.97

5

NUT-M18X1.5,CASTLE,ZINC/YELLOW

7547337

$1.98

6

WASHER-CONE.755X1.5X.072-.107P

7555796

$7.94

7

PIN-COTTER 1/8X1 1/2-Y

7661404

$4.76

8

WELD-RIM,FRONT,10 GA,BLK

1520263-067

$90.87

9

VALVE-RIM

1525017

$6.46

10

TIRE-25X8-12 NHS,489

5413994

$99.74

11

CAP-HUB,DUST

5413976

$4.03

12

NUT-FLANGE,TWO PIECE,3/8-24

7547237

$2.38
