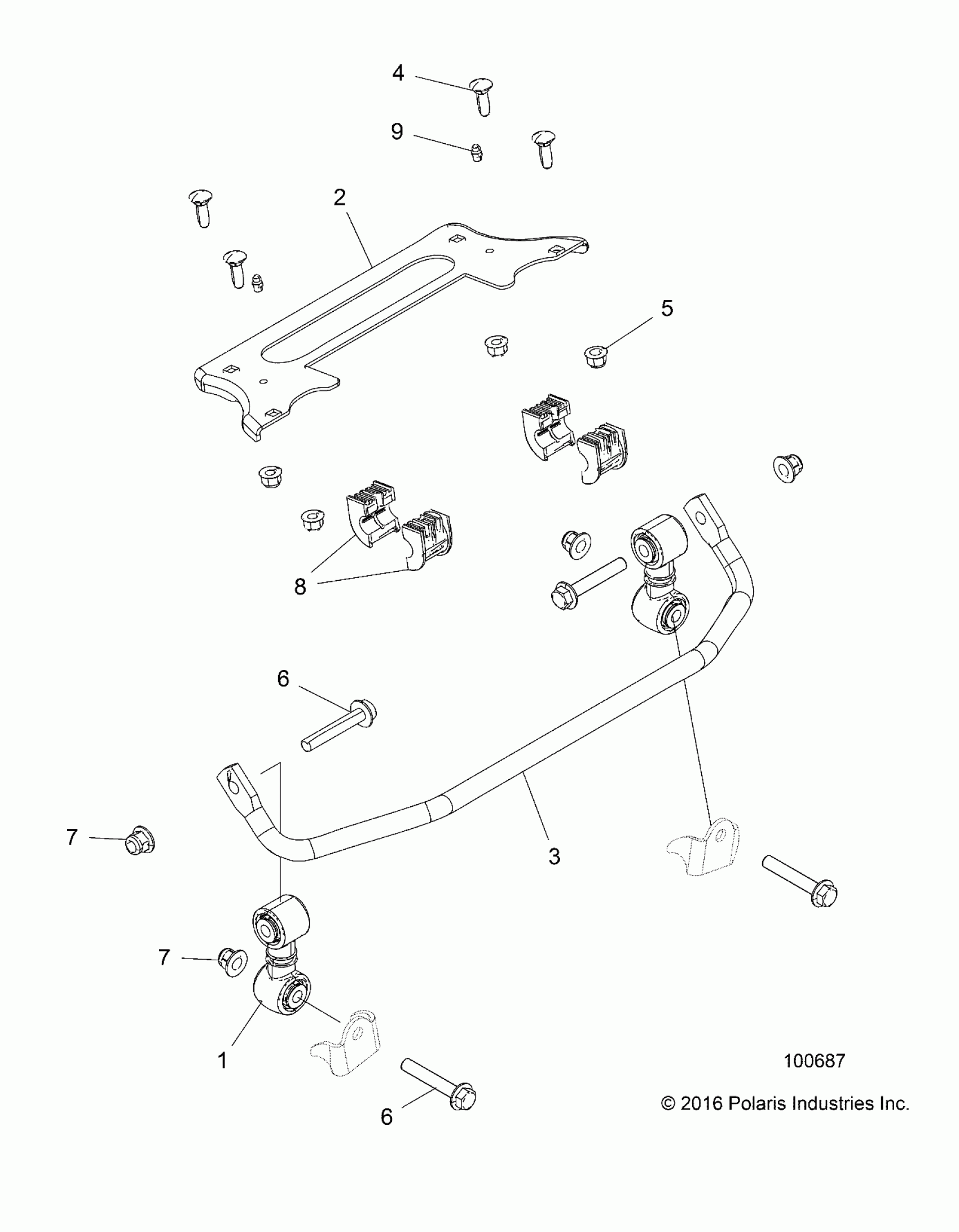

Polaris ACE 570 (R08) - A18DAE57B2 SUSPENSION, STABILIZER BAR, FRONT - A18DAE57B2 (100687) Diagram

#

Description

Price

1

ASM-LINK STABILIZER BAR,Y4MM

1543406

$113.99

2

SUPPORT-STABILIZER,ECOAT

5262805

$32.37

3

BAR-STABILIZER,FRONT,M.BLK

5339792-458

Unavailable

4

BOLT-CARR M8X1.25X25-8.8-ZOD

7518920

$4.84

5

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

6

SCR-HXFL-M10X1.25X60 10.9 ZOD

7519306

$5.56

6

SCR-HXFL-M10X1.25X60 10.9 ZOD

7519306

$5.56

7

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

7

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

8

BUSHING-STABILIZER

5452817

$4.76

9

FITTING-LUB,1/4-28-STR/1792-Y

7080433

$1.19
