Description

Price

1

BOOT, SEAL, ROD END

-------

Unavailable

2

ROD END

7061189

$67.99

3

NUT, JAM, LH

2205058

$23.99

4

TIE ROD, INNER

-------

Unavailable

4

TIE ROD, INNER

-------

Unavailable

5

CLAMP, BOOT, SMALL

7080978

$2.39

6

BOOT, STEERING RACK

5412012

$59.99

7

CLAMP, BOOT, LARGE

7080979

$5.59

8

BOLT, SHOULDER

7518786

$2.39

8

BOLT, SHOULDER

7518786

$2.39

9

SCREW

7518644

$4.79

10

BUSHING, TILT STEERING

5439154

$3.19

10

BUSHING, TILT STEERING

5439154

$3.19

11

BUSHING-STEERING

7556675

$14.95

11

BUSHING-STEERING

7556675

$14.95

12

SCREW

7519217

$1.59

13

BEARING-STEERING

3514686

$9.59

13

BEARING-STEERING

3514686

$9.59

14

WHEEL-STEERING, 14"

1823623

$123.99

15

NUT

7547506

$4.39

16

CAP-STEERING WHEEL

5436536

$31.99

17

ASM-PIVOT TUBE,M.BLK [INCL. 13]

1022896-458

$47.99

18

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

18

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

18

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

18

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

19

SHAFT, STEERING, EPS, UPPER

1824286

$155.99

20

WASHER

7555960

$3.99

20

WASHER

7555960

$3.99

21

NUT, NYLOK

7547385

$1.49

22

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

22

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

23

BOOT, STEERING RACK

5412012

$59.99

24

SCR-HXFL

7519854

$15.99

25

WASHER

7555919

$4.99

25

WASHER

7555919

$4.99

26

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

27

Pin, Cotter

7661203

$1.49

28

ASM-GEARBOX,STEERING,17T [INCL. 2-7,23]

1824540

$501.59

29

ASM-SHOCK,TILT STEERING,SHORT

7044699

$79.41

30

SCREW

7519355

$10.39

31

NUT, NYLOK

7547442

$3.99

32

BRACKET, BASE, EPS

1020912-329

$100.31

33

BRACKET, EPS, LH

5260034-329

$39.99

34

SHAFT-STEERING,EPS,LOWER,17T

1824549

$131.99

35

ASM-POWER STEERING,ACE

2414493

$2,089.99

36

BOLT

7518450

$1.59

36

BOLT

7518450

$1.59

37

BOLT

7518558

$3.99

38

SCREW

7518955

$3.19

39

SCREW

7519052

$1.59

39

SCREW

7519052

$1.59

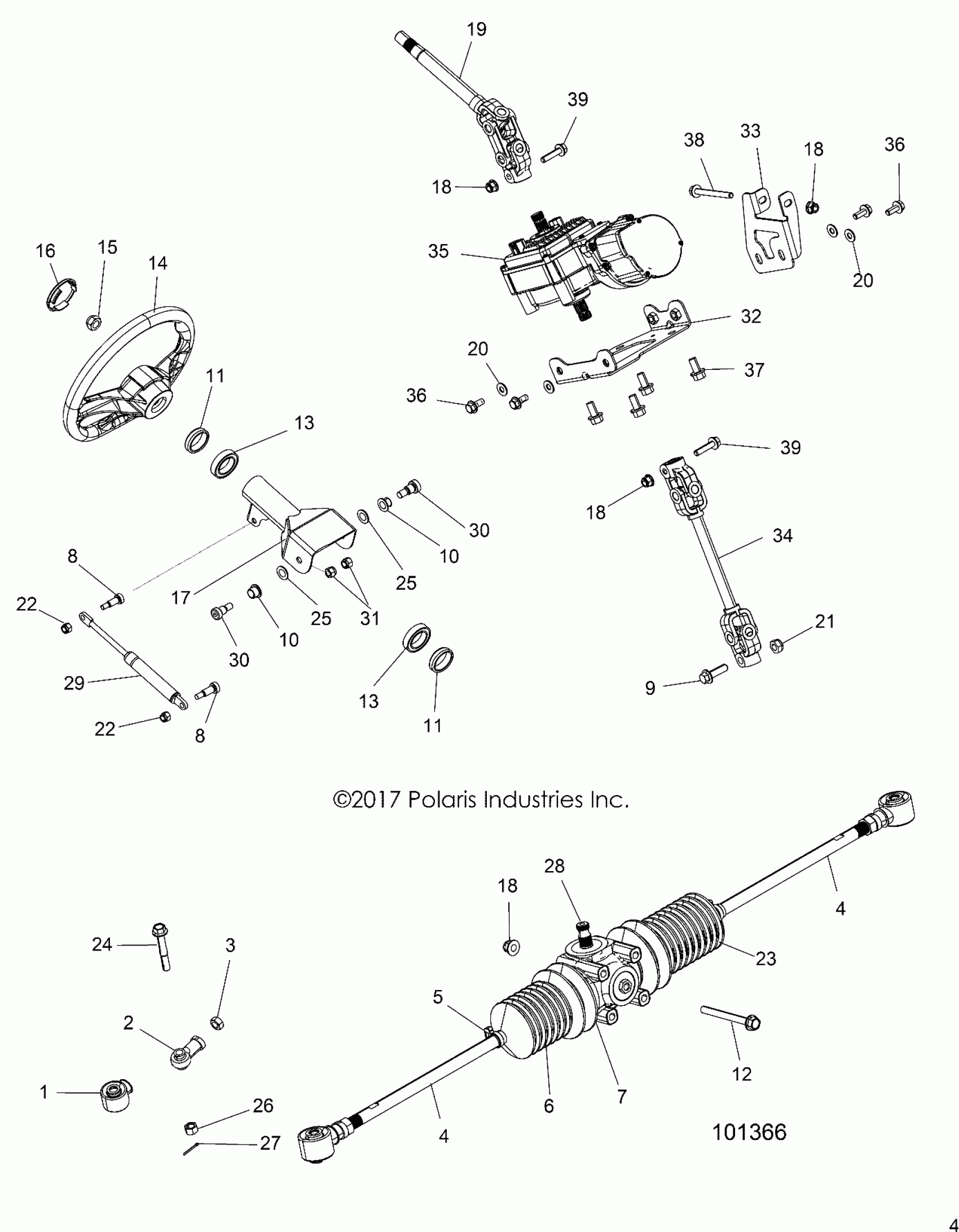

Polaris ACE 570 (R08) - A18DAE57B2 STEERING, STEERING ASM. - A18DAE57B2 (101366) Diagram

BOOT, SEAL, ROD END

ROD END

NUT, JAM, LH

TIE ROD, INNER

TIE ROD, INNER

CLAMP, BOOT, SMALL

BOOT, STEERING RACK

CLAMP, BOOT, LARGE

BOLT, SHOULDER

BOLT, SHOULDER

SCREW

BUSHING, TILT STEERING

BUSHING, TILT STEERING

BUSHING-STEERING

BUSHING-STEERING

SCREW

BEARING-STEERING

BEARING-STEERING

WHEEL-STEERING, 14"

NUT

CAP-STEERING WHEEL

ASM-PIVOT TUBE,M.BLK [INCL. 13]

NUT- M8X1.25, FLG, NYLOC-OLIVE D

NUT- M8X1.25, FLG, NYLOC-OLIVE D

NUT- M8X1.25, FLG, NYLOC-OLIVE D

NUT- M8X1.25, FLG, NYLOC-OLIVE D

SHAFT, STEERING, EPS, UPPER

WASHER

WASHER

NUT, NYLOK

NUT-6MM X 1 NYLOK-Z

NUT-6MM X 1 NYLOK-Z

BOOT, STEERING RACK

SCR-HXFL

WASHER

WASHER

NUT-HXFL M10X1.25 8 ZTB NYL

Pin, Cotter

ASM-GEARBOX,STEERING,17T [INCL. 2-7,23]

ASM-SHOCK,TILT STEERING,SHORT

SCREW

NUT, NYLOK

BRACKET, BASE, EPS

BRACKET, EPS, LH

SHAFT-STEERING,EPS,LOWER,17T

ASM-POWER STEERING,ACE

BOLT

BOLT

BOLT

SCREW

SCREW

SCREW
