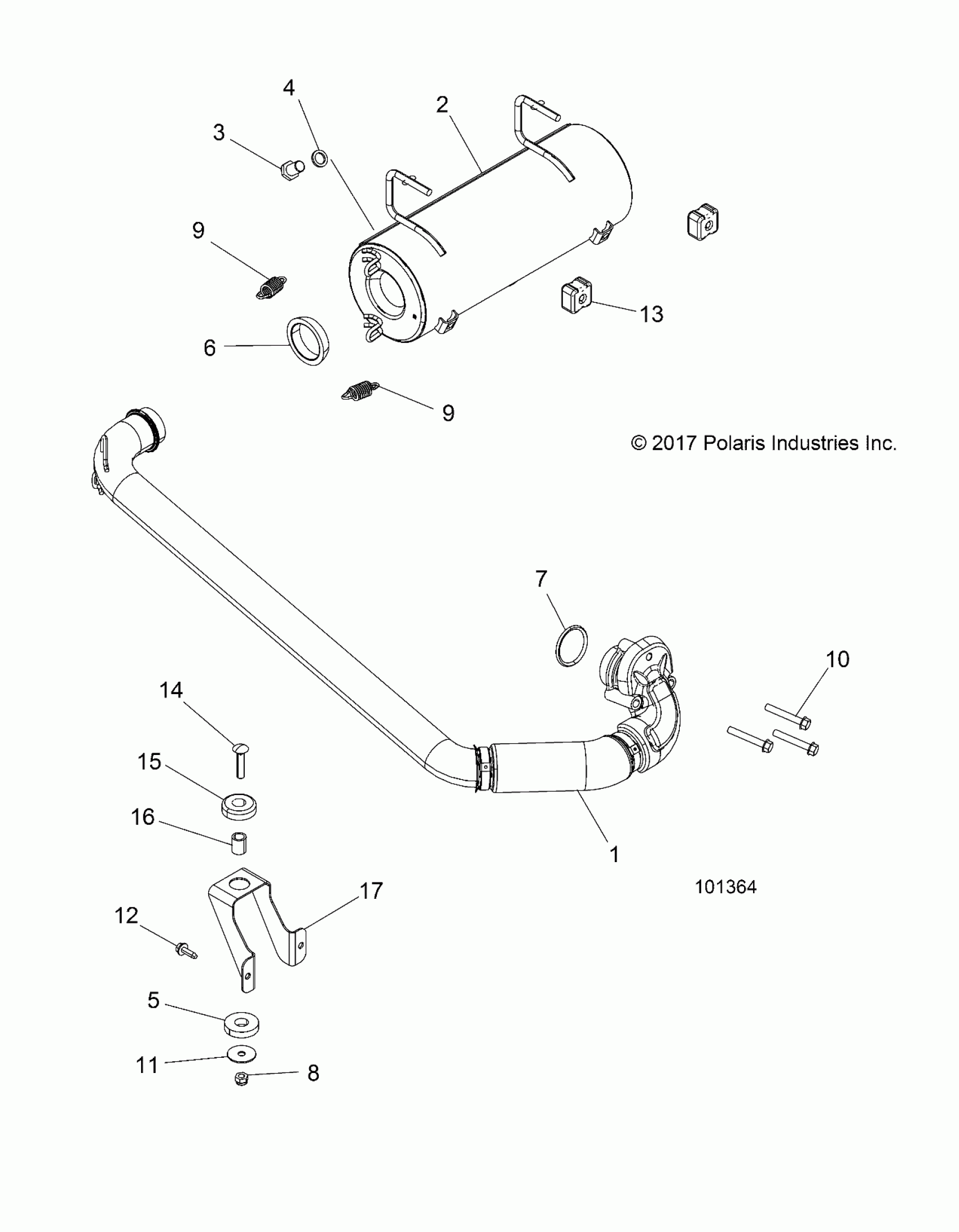

Polaris ACE 570 (R08) - A18DAE57B2 ENGINE, EXHAUST SYSTEM - A18DAE57B2 Diagram

#

Description
Price

1

ASM-EXHAUST PIPE

1263115

$409.99

2

WELD-EXHAUST SILENCER [INCL. 2,3]

1263118

$529.99

3

BOLT-1/2-20X5/8 HXHDCAP-GR5-P

7520756

$5.56

4

WASHER-CLEAN OUT .51X75X.09

7557077

$9.99

5

WSHR-15.4X38.1X7.9 RUBBER

5414945

$4.76

6

SEAL

3610181

$32.37

7

GASKET-EXHAUST SEALING

5253989

$28.32

8

NUT-5/16-18 NYLOK-Y

7542324

$0.79

9

SPRING-EXHAUST

7041789

$8.89

9

SPRING-EXHAUST

7041789

$8.89

10

M8X60 HEX FLANGE BOLT

7520828

$8.99

11

WASHER

7555716

$1.59

12

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

13

GROMMET

5413383

$4.76

14

BOLT, CARRIAGE

7515316

$2.38

15

DAMPER-VIBRATION

5414946

$4.84

16

BUSHING

5010192

$6.35

17

MOUNT, EXHAUST, LOWER

5258177

$32.37
