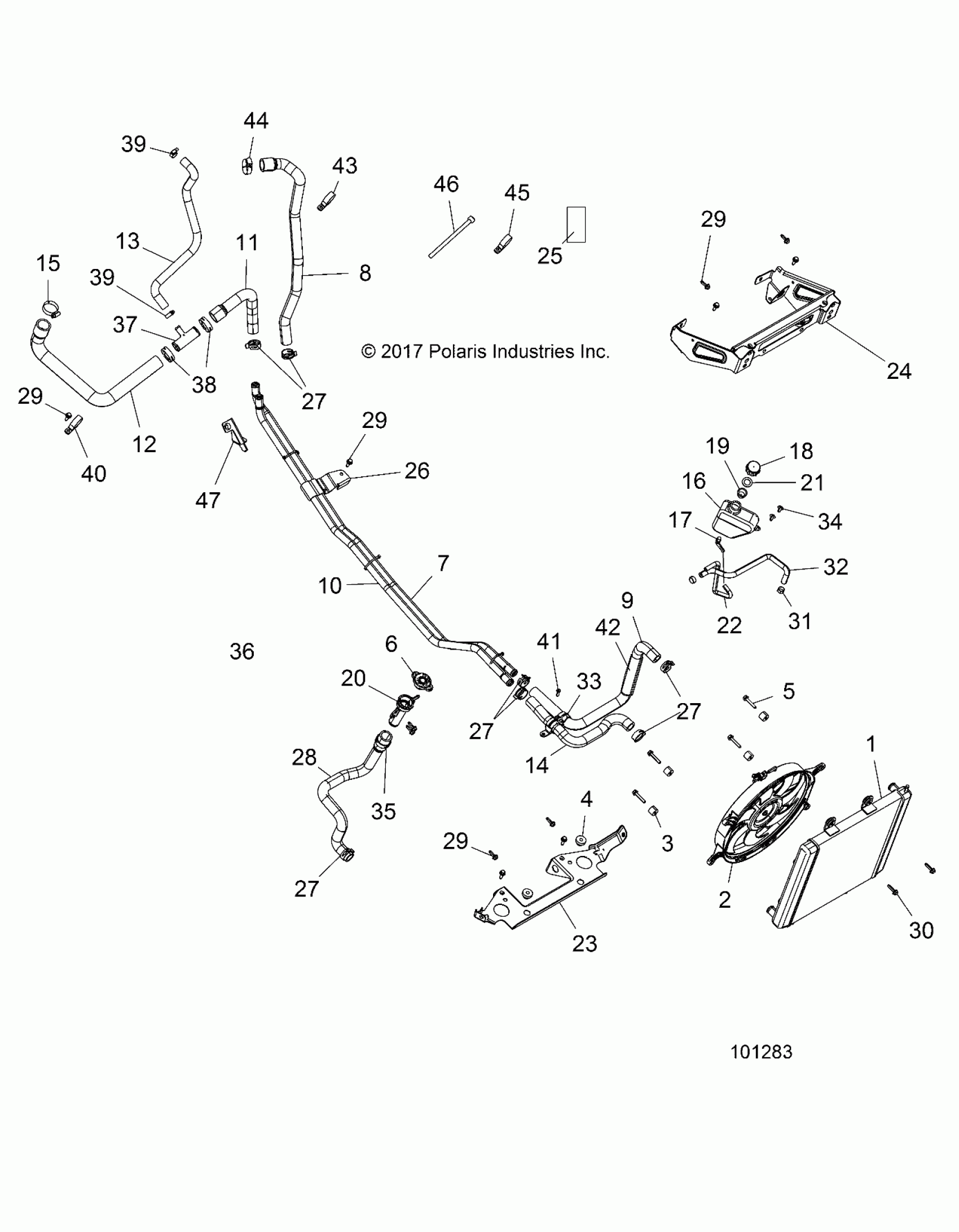

Polaris ACE 570 (R08) - A18DAE57B2 ENGINE, COOLING SYSTEM - A18DAE57B2 (101283) Diagram

#

Description
Price

1

ASM-RADIATOR,CORE

1241012

$580.94

2

ASM-FAN AND MOTOR,TRIPAC,SGL

2411330

$188.10

3

SPACER-6.6IDX19ODX15 NYL BLK

5137361

$5.56

4

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.56

5

SCR-M6X1.0X35,HX/FL-Y/D

7516827

$6.35

6

CAP-PRESSURE

1240300

$40.46

7

TUBE-COOLANT,3/4,ENG OUT

5140811

Unavailable

8

HOSE-COOLANT,REAR,ENG OUT

5416035

$36.41

9

HOSE-COOLANT

5415709

$36.41

10

TUBE-COOLANT,3/4,ENG IN

5140812

Unavailable

11

HOSE-COOLANT,REAR,ENG IN

5416033

$36.41

12

HOSE-COOLANT,ENGINE INLET

5415129

$40.46

13

HOSE-COOLANT,BYPASS

5415447

$53.24

14

HOSE-RADIATOR,ACE 570

5416034

$32.37

15

CLAMP, HOSE

7081174

$7.14

16

TANK-SURGE

5436936

$80.94

17

FITTING, BARBED

7052065

$7.14

18

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

19

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

20

FILLER, REMOTE, COOLANT

5439079

$32.37

21

GASKET-OVERFLOW CAP

5810279

$2.41

22

Line, Fuel

8450003-1525

Unavailable

23

MNT-RADIATOR,M.BLK

5262753-329

$97.76

24

MNT-RADIATOR,UPPER,E-COAT

5262754-329

$97.76

25

PAD-BATTERY

5810290

$7.27

26

CLAMP-COOLANT LINES

5258169

$11.11

27

CLAMP, SPRINGBAND

7080841

$7.14

27

CLAMP, SPRINGBAND

7080841

$7.14

27

CLAMP, SPRINGBAND

7080841

$7.14

27

CLAMP, SPRINGBAND

7080841

$7.14

28

HOSE-COOLANT,FRONT

5415876

$40.46

29

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

29

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

29

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

29

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

30

SCREW

7519342

$1.99

31

HOSE CLAMP, RED

7080003

$1.19

32

HOSE

8450120-600

Unavailable

33

BRACKET-COOLANT TUBE

5451221

$8.89

34

Screw

7512084

$1.19

35

Clamp, Springband

7080843

$3.97

36

CLIP-FIR TREE,DART,6.35MM

7670090

$1.19

37

CONNECTOR, TEE

7052530

$5.56

38

SPRINGBAND, CLAMP

7080844

$10.32

39

CLAMP-HOSE,.875-SS

7080474

$8.54

39

CLAMP-HOSE,.875-SS

7080474

$8.54

40

CLAMP-HOSE,1.312 VINYL COATED

7080851

Unavailable

41

SCR-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.19

42

CONDUIT-FLEX,1.00 ID,PE,10CM

5521793-10

$7.27

43

CLAMP-HOSE

7080807

$9.52

44

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.94

45

CLAMP-VINYL COATED,1.00IN ID

7081854

$5.56

46

TIEWRAP-EVAP

7080924

$7.94

47

BRKT-HOSE,COOLANT

5264570

$10.51
