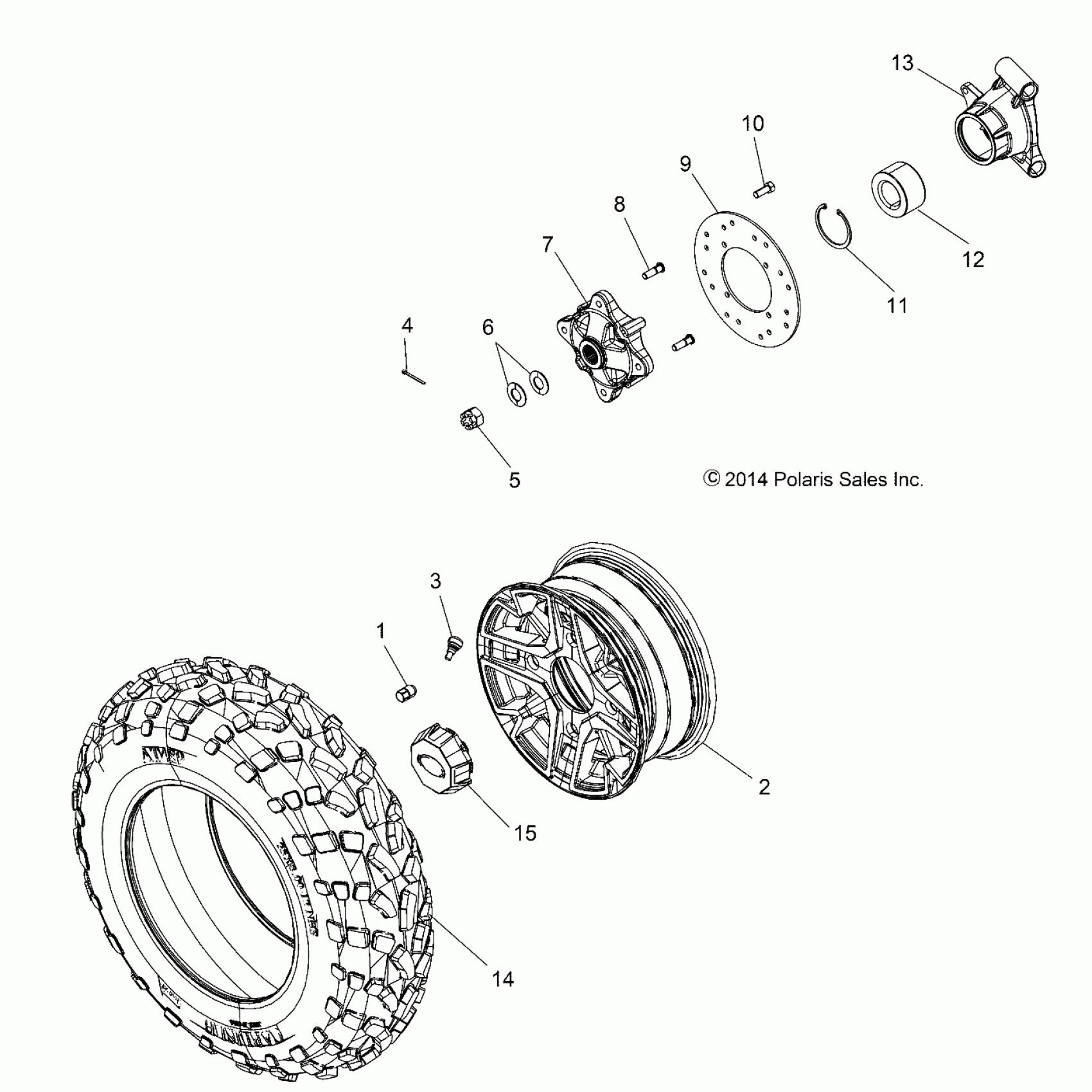

Polaris ACE 570 (R04) - A19DAE57A4 WHEELS, REAR - A19DAE57A4 (49ATVWHEELRR15ACE570) Diagram

#

Description
Price

1

NUT, WHEEL

7547309

$3.59

2

RIM, REAR, CAST, BLACK

1522362-067

$121.99

3

VALVE-RIM

1525017

$5.59

4

PIN, COTTER

7661404

$4.79

5

NUT, CASTLE

7547337

$1.99

6

WASHER, CONE

7555796

$7.99

7

HUB, WHEEL, REAR

5135113

Unavailable

8

STUD

7518378

$1.59

9

DISC, BRAKE, REAR

5248250

$75.99

10

BOLT

7518903

$3.99

11

RING, RETAINING

7710440

$10.39

12

BEARING-WHEEL,40X74X40MM

3514917

$39.99

12

BEARING-WHEEL,HD,40X74X40MM [OPTIONAL]

3515087

$63.99

13

CARRIER, BEARING, LH

5138501

$251.73

13

CARRIER, BEARING, RH

5138502

$251.73

14

TIRE, 25X10-12

5413961

Unavailable

15

CAP-RIM,BLK

1521954-067

$13.19
