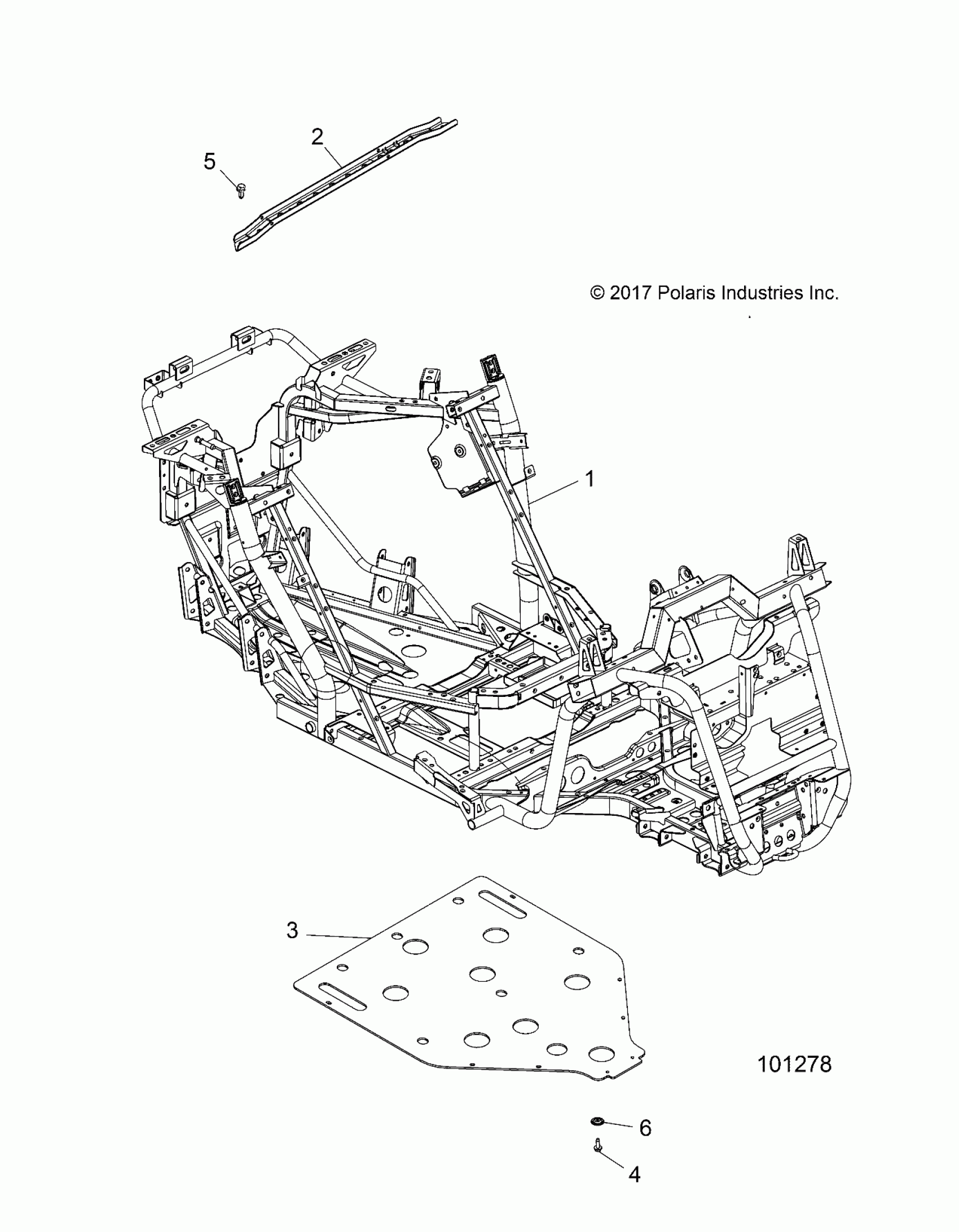

Polaris ACE 570 (R04) - A19DAE57A4 CHASSIS, MAIN FRAME AND SKID PLATE - A19DAE57A4 (101278) Diagram

#

Description

Price

1

WELD-MAIN FRAME,SP,M.BLK

1023342-458

$2,869.99

2

BRKT-REAR,BRACE,E-COAT

5263745-329

$48.40

3

PLATE, SKID

5813900

$107.14

4

SCREW

7518936

$3.97

5

BOLT

7518555

$2.38

6

WASHER-SKID PLATE

7556065

$4.76
