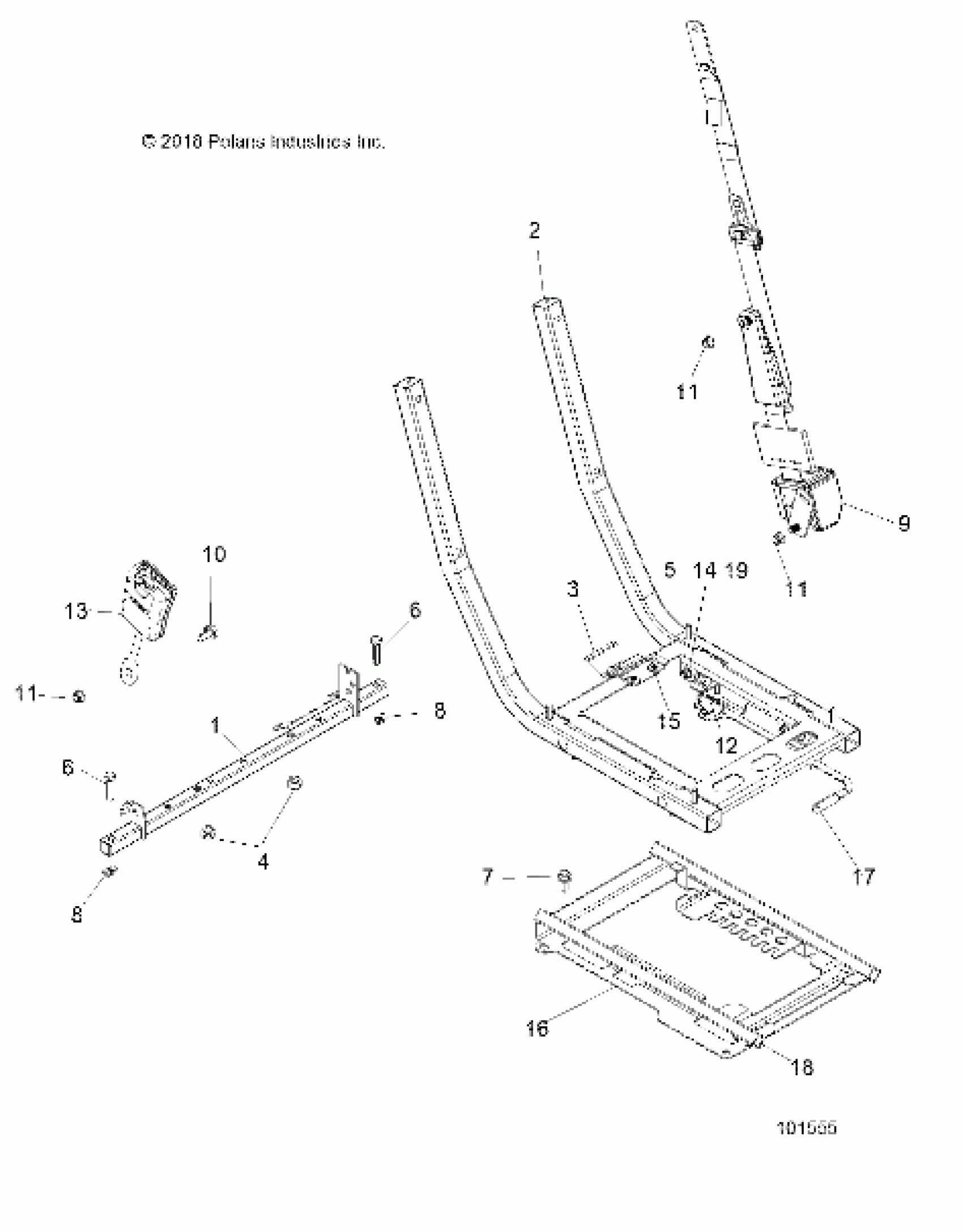

Polaris ACE 570 (R04) - A19DAE57A4 BODY, SEAT MOUNTING AND BELT - A19DAE57A4 (101555) Diagram

#

Description
Price

1

WELD-SEAT BASE,REAR,BACK,M.BLK

1020911-458

Unavailable

2

WELD-SEATBASE ADJUSTER,BLK

1023702-458

$169.43

3

LATCH-SEAT,SPRING

5265087

$54.99

4

BUMPER-RUBBER

5412067

$3.97

5

ROLLER-SEAT

5454929

$14.56

6

SCREW, HXFL

7519906

$4.76

6

SCREW, HXFL

7519906

$4.76

7

BOLT, FLANGE

7518555

$2.38

8

NUT, U

7547748

$4.76

8

NUT, U

7547748

$4.76

9

ASM-SEAT BELT,3PT

2635049

$218.49

10

SCREW

7519072

$5.56

11

NUT

7540000

$3.97

11

NUT

7540000

$3.97

11

NUT

7540000

$3.97

12

CLIP-DART,10.8 (NYL)

5451583

$3.97

13

BUCKLE-SEATBELT,SWITCH

2635937

$44.99

13

CLIP-FIR,HOLE6.35MM

7082134

$3.97

14

NUT-HXFL-M6X1.0 8 ZC NYL

7547487

$2.38

15

RIVET-CHERRY Q-3/16X.325-Z

7621453

Unavailable

16

WELD-SEAT,MNT,E-COAT

1024441-329

$84.99

17

CAP-LEVER

5451392

$89.99

18

CAP PLUG

5454698

$4.03

19

SCR-SHS-M6X1.0-M8X30

7520838

$12.99
