Description

Price

1

WELD-BOLSTER,LH,ACE,BLK

1022810

$143.99

2

WELD-BOLSTER,RH,ACE,BLK

1022811

$143.99

3

WELD-BRKT,MT,DR LTCH,LH,ACE

1022817

$35.99

4

WELD-BRKT,MT,DR LTCH,RH,ACE

1022818

$35.99

5

ASM-LATCH,DOOR,LH

2637180

Unavailable

5

ASM-DOOR,LH [INCL. LATCH, 6-9]

2635400

Unavailable

6

STAMPING DOOR FRAME,LH,BLK

5257929-458

$147.99

7

DOOR SKIN, LH

5450636

$119.99

8

SCR-TX TRUSS-#14X3/4,HI/LO ZBK

7519045

$3.19

9

SCR-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

10

ASM-LATCH,DOOR,RH

2637181

Unavailable

10

ASM-DOOR,RH [INCL. LATCH, 6-9]

2635401

Unavailable

11

STAMPING DOOR FRAME,RH,BLK

5257930-458

$147.99

12

DOOR SKIN,RH

5450638

$119.99

13

MACH-CLAMP,DOOR,ACE

5140136

$51.99

13

MACH-CLAMP,DOOR,ACE

5140310

$51.99

14

BUSHING-DOOR PIVOT

5450592

$2.39

15

SCR-SH-M8X1.25X30 8.8 ZPC

7516732

$1.59

16

SCR-TXTH-M8X1.25X20 8.8 ZB3 P3

7519997

$3.99

17

PIN-DOOR HINGE

7662138

$4.79

18

E-CLIP,M6, DIN 6799

7710466

$3.19

19

SCREW

7520367

$4.79

20

Nut, Flange

7547317

Unavailable

21

SCREW

7519243

$3.99

22

BRKT-DOOR HINGE

5258008

Unavailable

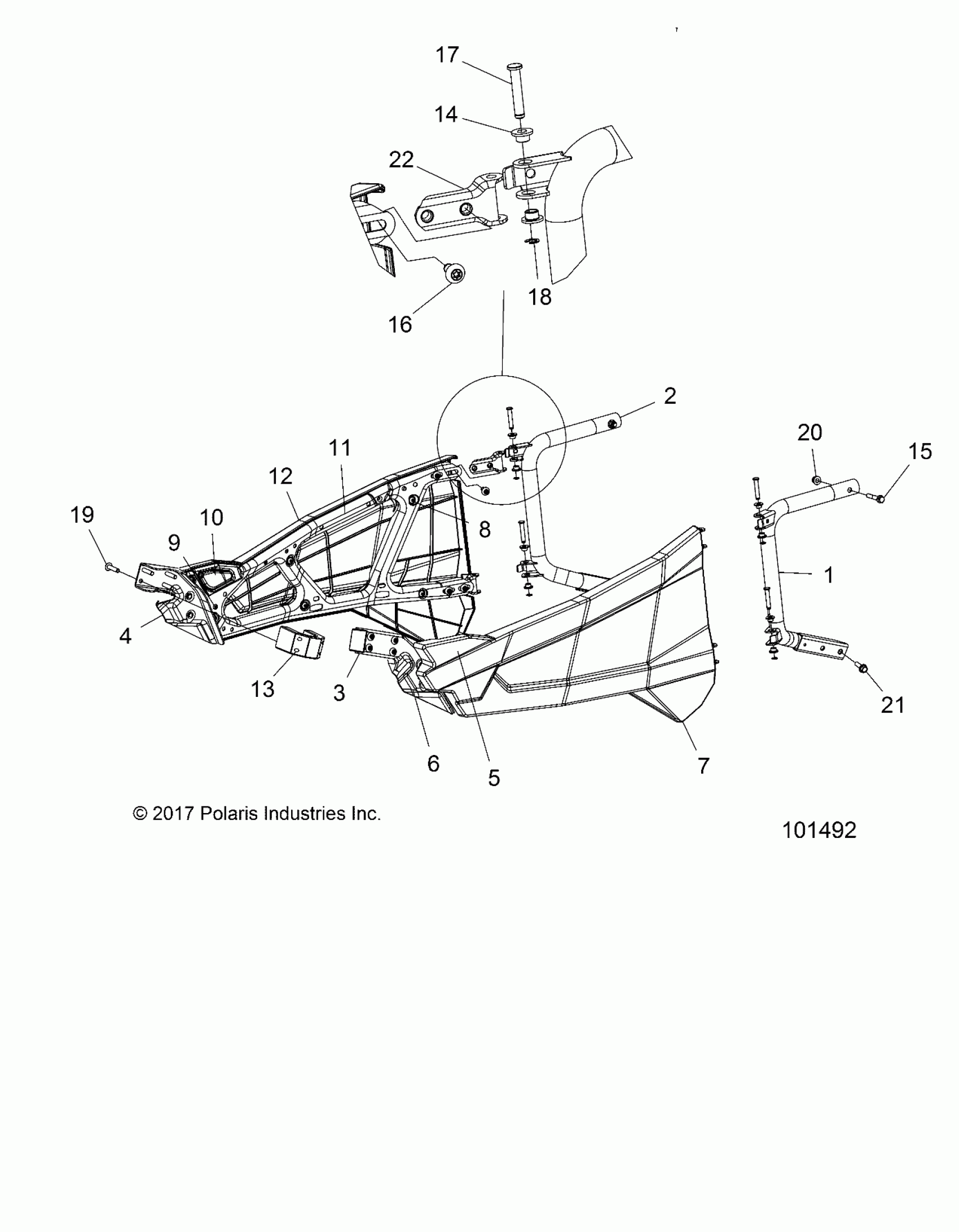

Polaris ACE 570 (R04) - A19DAE57A4 BODY, DOORS - A19DAE57A4 (101492) Diagram

WELD-BOLSTER,LH,ACE,BLK

WELD-BOLSTER,RH,ACE,BLK

WELD-BRKT,MT,DR LTCH,LH,ACE

WELD-BRKT,MT,DR LTCH,RH,ACE

ASM-LATCH,DOOR,LH

ASM-DOOR,LH [INCL. LATCH, 6-9]

STAMPING DOOR FRAME,LH,BLK

DOOR SKIN, LH

SCR-TX TRUSS-#14X3/4,HI/LO ZBK

SCR-TXBH-M6X1.0X12 8.8 ZPB D20

ASM-LATCH,DOOR,RH

ASM-DOOR,RH [INCL. LATCH, 6-9]

STAMPING DOOR FRAME,RH,BLK

DOOR SKIN,RH

MACH-CLAMP,DOOR,ACE

MACH-CLAMP,DOOR,ACE

BUSHING-DOOR PIVOT

SCR-SH-M8X1.25X30 8.8 ZPC

SCR-TXTH-M8X1.25X20 8.8 ZB3 P3

PIN-DOOR HINGE

E-CLIP,M6, DIN 6799

SCREW

Nut, Flange

SCREW

BRKT-DOOR HINGE
