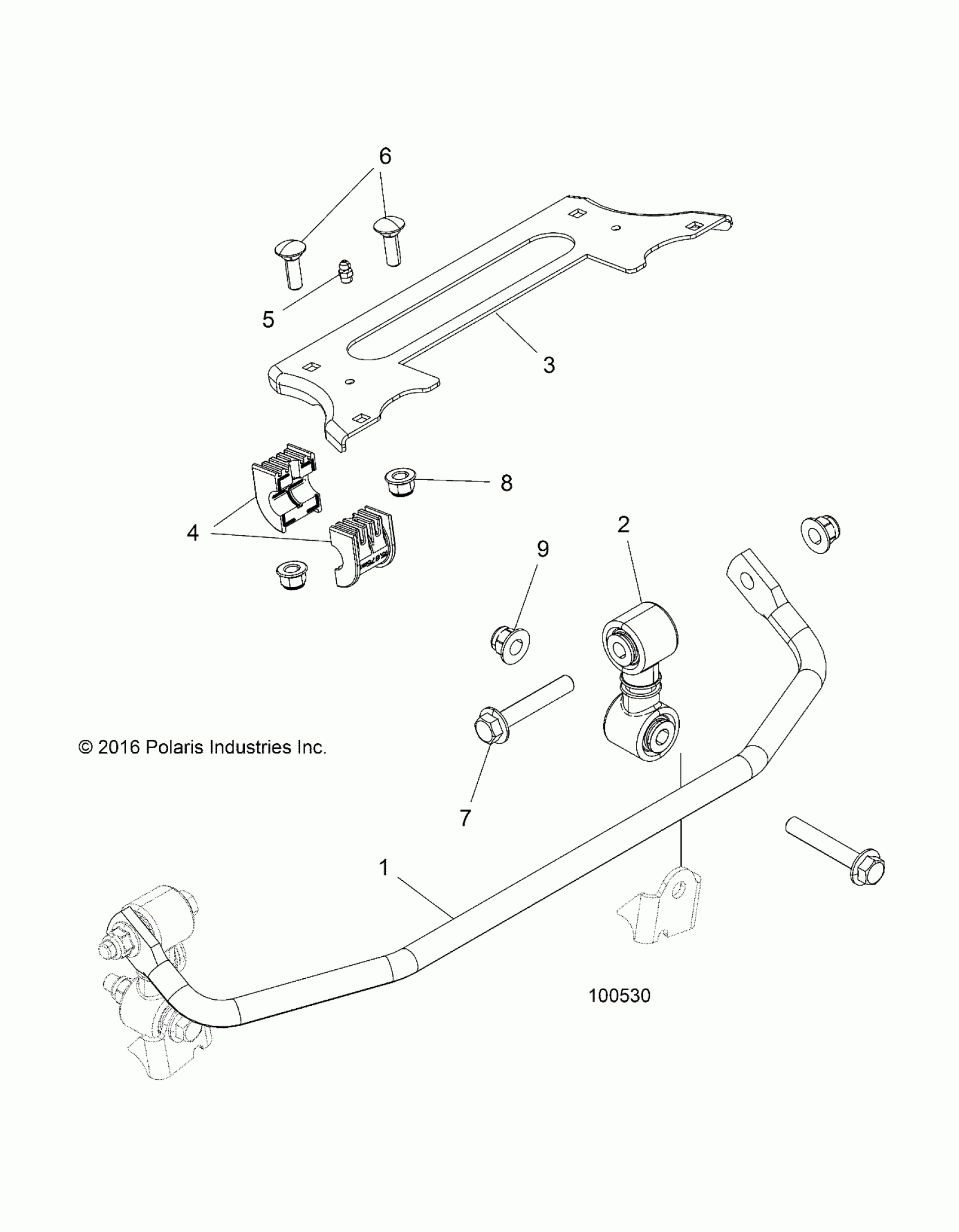

Polaris ACE 570 EFI (R15) - A17DAA57A5 SUSPENSION, STABILIZER BAR, FRONT - A17DAA57A5 (100530) Diagram

#

Description

Price

1

BAR-STABILIZER,FRONT,M.BLK

5339428-458

$79.99

2

ASM-LINK STABILIZER BAR,Y4MM

1543406

$113.99

3

SUPPORT-STABILIZER, ECOAT

5262805-329

$44.43

4

BUSHING-STABILIZER

5452817

$4.76

5

FITTING-LUB,1/4-28-STR/1792-Y

7080433

$1.19

6

BOLT-CARR M8X1.25X25-8.8-ZOD

7518920

$4.84

7

SCR-HXFL-M10X1.25X60 10.9 ZOD

7519306

$5.56

8

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

9

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59
