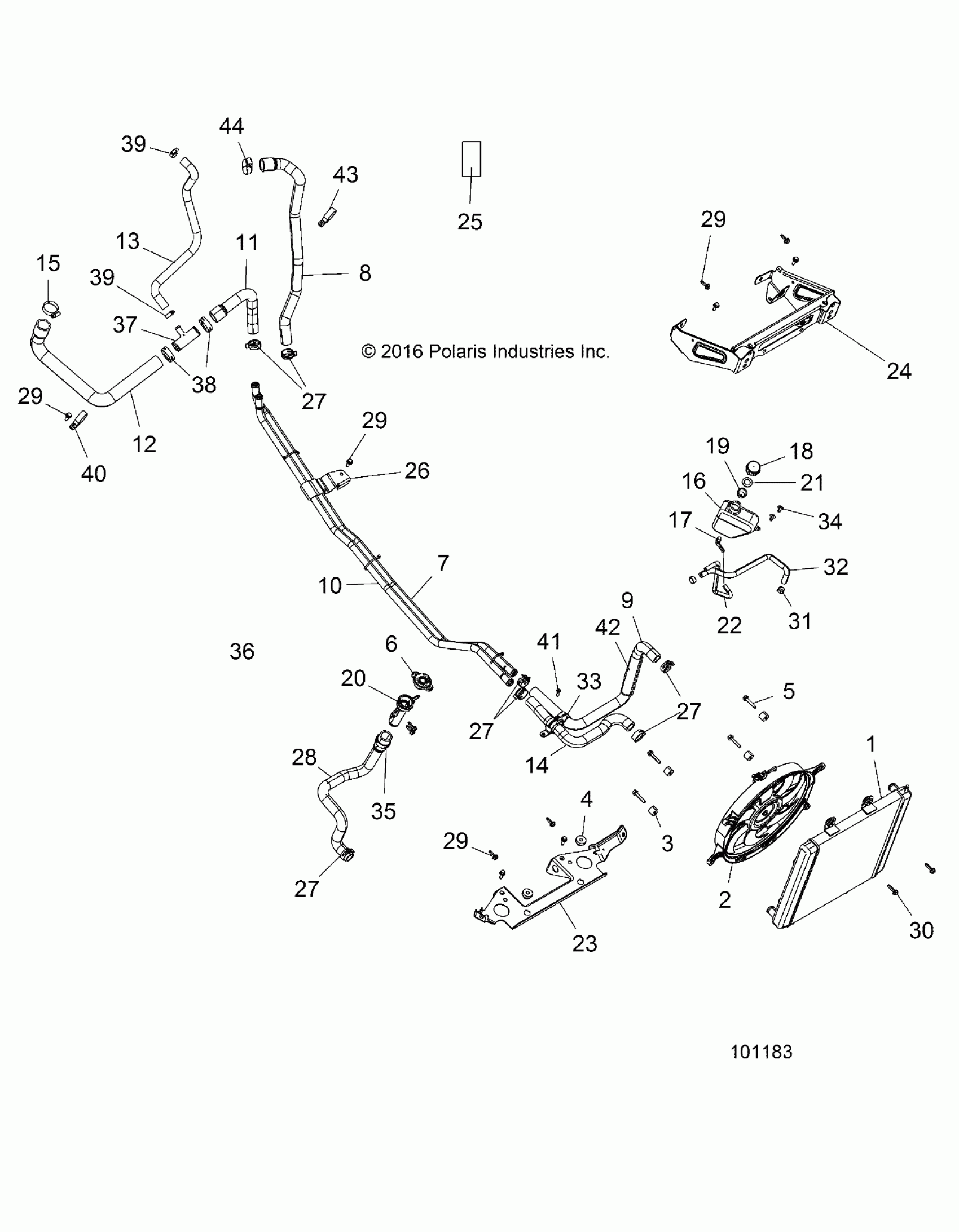

Polaris ACE 570 EFI (R15) - A17DAA57A5 ENGINE, COOLING SYSTEM - A17DAA57A5 (101183) Diagram

#

Description
Price

1

ASM-RADIATOR,CORE

1241012

$440.69

2

ASM-FAN AND MOTOR,TRIPAC,SGL

2411330

$189.59

3

SPACER-6.6IDX19ODX15 NYL BLK

5137361

$5.59

4

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

5

SCR-M6X1.0X35,HX/FL-Y/D

7516827

$6.39

6

CAP-PRESSURE

1240300

$40.46

7

CABLE-TIE,DIA6-38MM,DUAL-LOOP [TO HOLD COOLANT TUBES FROM STEERING SHAFT]

7081916

$4.79

7

TUBE-COOLANT,3/4,ENG OUT

5140811

$39.99

8

HOSE-COOLANT,REAR,ENG OUT

5416035

$31.99

9

HOSE-COOLANT

5415709

$31.99

10

TUBE-COOLANT,3/4,ENG IN

5140812

$39.99

11

HOSE-COOLANT,REAR,ENG IN

5416033

$31.99

12

HOSE-COOLANT,ENGINE INLET

5415129

$35.99

13

HOSE-COOLANT,BYPASS

5415447

$43.99

14

HOSE-RADIATOR,ACE 570

5416034

$27.99

15

CLAMP, HOSE

7081174

$7.19

16

TANK-SURGE

5436936

$75.99

17

FITTING, BARBED

7052065

$7.19

18

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

19

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

20

FILLER, REMOTE, COOLANT

5439079

$27.99

21

GASKET-OVERFLOW CAP

5810279

$2.41

22

Line, Fuel

8450003-1525

Unavailable

23

MNT-RADIATOR,M.BLK

5262753-329

$87.99

24

MNT-RADIATOR,UPPER,E-COAT

5262754-329

$87.99

25

PAD-BATTERY

5810290

$7.27

26

CLAMP-COOLANT LINES

5258169

$11.19

27

CLAMP, SPRINGBAND

7080841

$7.19

27

CLAMP, SPRINGBAND

7080841

$7.19

27

CLAMP, SPRINGBAND

7080841

$7.19

27

CLAMP, SPRINGBAND

7080841

$7.19

28

HOSE-COOLANT,FRONT

5415876

$35.99

29

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

29

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

29

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

29

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

30

SCREW

7519342

$1.86

31

HOSE CLAMP, RED

7080003

$1.49

32

HOSE

8450120-600

Unavailable

33

BRACKET-COOLANT TUBE

5451221

$8.79

34

Screw

7512084

$1.49

35

Clamp, Springband

7080843

$3.99

36

CLIP-FIR TREE,DART,6.35MM

7670090

$1.49

37

CONNECTOR, TEE

7052530

$5.59

38

SPRINGBAND, CLAMP

7080844

$10.39

39

CLAMP-HOSE,.875-SS

7080474

$8.40

39

CLAMP-HOSE,.875-SS

7080474

$8.40

40

CLAMP-HOSE,1.312 VINYL COATED

7080851

Unavailable

41

SCR-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

42

CONDUIT-FLEX,1.00 ID,PE,10CM

5521793-10

$6.39

43

CLAMP-HOSE

7080807

$9.59

44

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99
