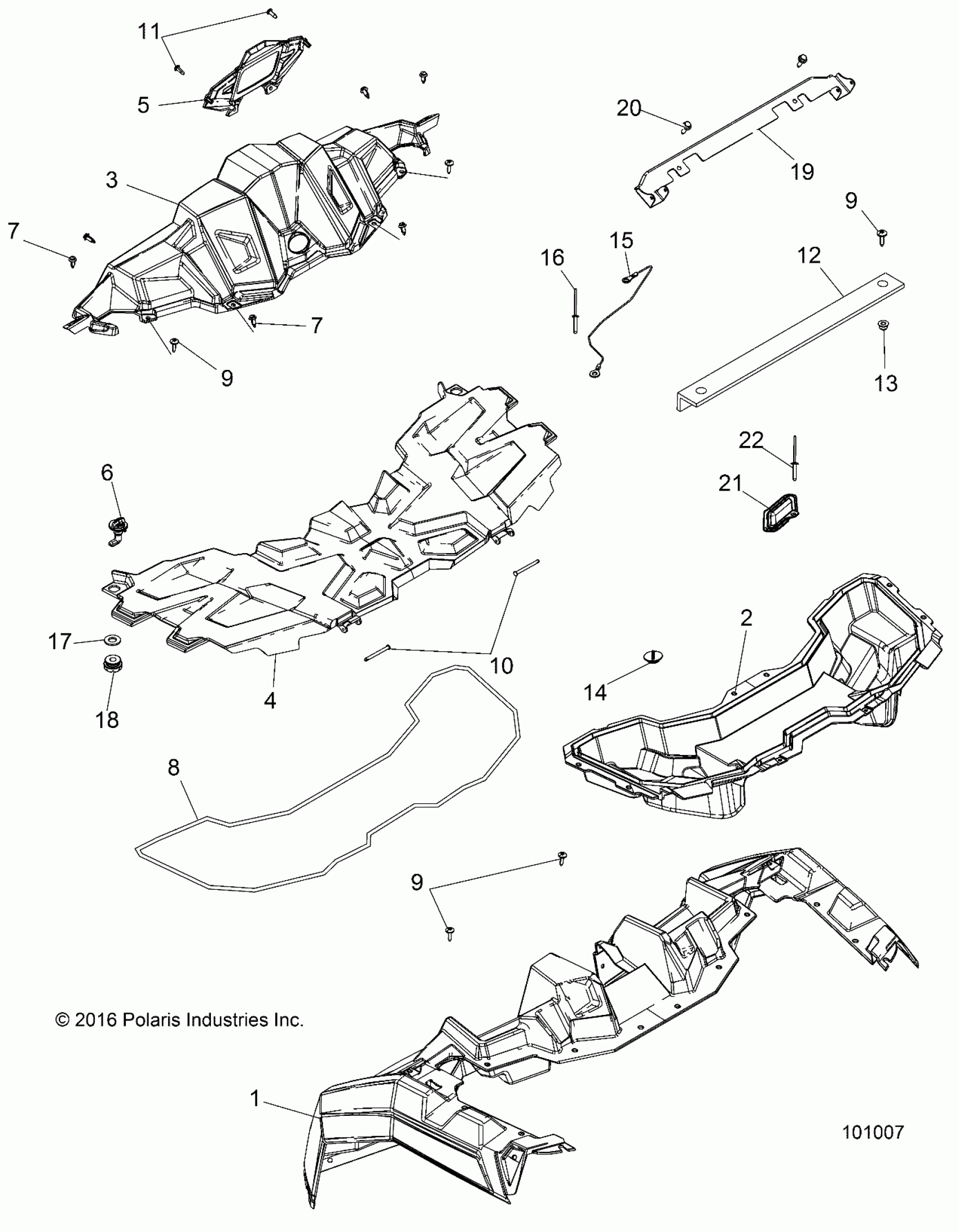

Polaris ACE 570 EFI (R15) - A17DAA57A5 BODY, HOOD AND FRONT BODY WORK - A17DAA57A5 (101007) Diagram

ASM-CAB,FR,SVC,HDPE,VLCTY BLUE [INCL. WARNING DECAL]

2636419-689

$624.79

BIN-STORAGE,FRONT,BLK [TO 2/2/2017]

5453905-070

$95.99

BIN-STORAGE,FRONT,BLK [FROM 2/2/2017]

5454119-070

Unavailable

PANEL, CAB, UPPER, BLACK

5450064-070

$135.99

COVER, BOX, FRONT, BLACK

5450073-070

$139.99

PANEL-DASH,KYSTN,ACE

5451949

$35.99

LATCH-1/4 TURN

5451143

$13.32

Rivet

7661855

$1.49

Rivet

7661855

$1.49

SEAL, BOX, FRONT

5522023

$59.99

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

Pin, Hinge, Front

5134576

$6.39

SCREW

7519045

$3.19

BRACE-ANGLE,625MM,ECOAT

5263628-329

$43.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

PLUG-COMPARTMENT

5412981

Unavailable

CABLE-LID,FRONT,HOOK

7082262

$39.99

RIVET

7621334

$1.49

WASHER-.510X.840X.031 Y

7555919

$4.99

GROMMET-LATCH

5413428

$3.19

BRKT-HINGE,RACK,FRONT,E-COAT

5263090-329

$47.99

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

PLUG-STORAGE BIN,LH,BLK [TO 2/2/2017]

5453921-070

$23.99

PLUG-STORAGE BIN,RH,BLK [TO 2/2/2017]

5453922-070

$11.19

RIVET-PLASTIC,(.236-.394) [TO 2/2/2017]

7661922

$1.49
