- ACE 570 EFI (R09) - A16DAA57A5/A7/L2/E57A9/E57AM
ENGINE, TRANSMISSION MOUNTING & LONG BLOCK - A16DAA57A5/A7/L2/E57A9/E57AM (49ATVENGINEMTG15ACE570)

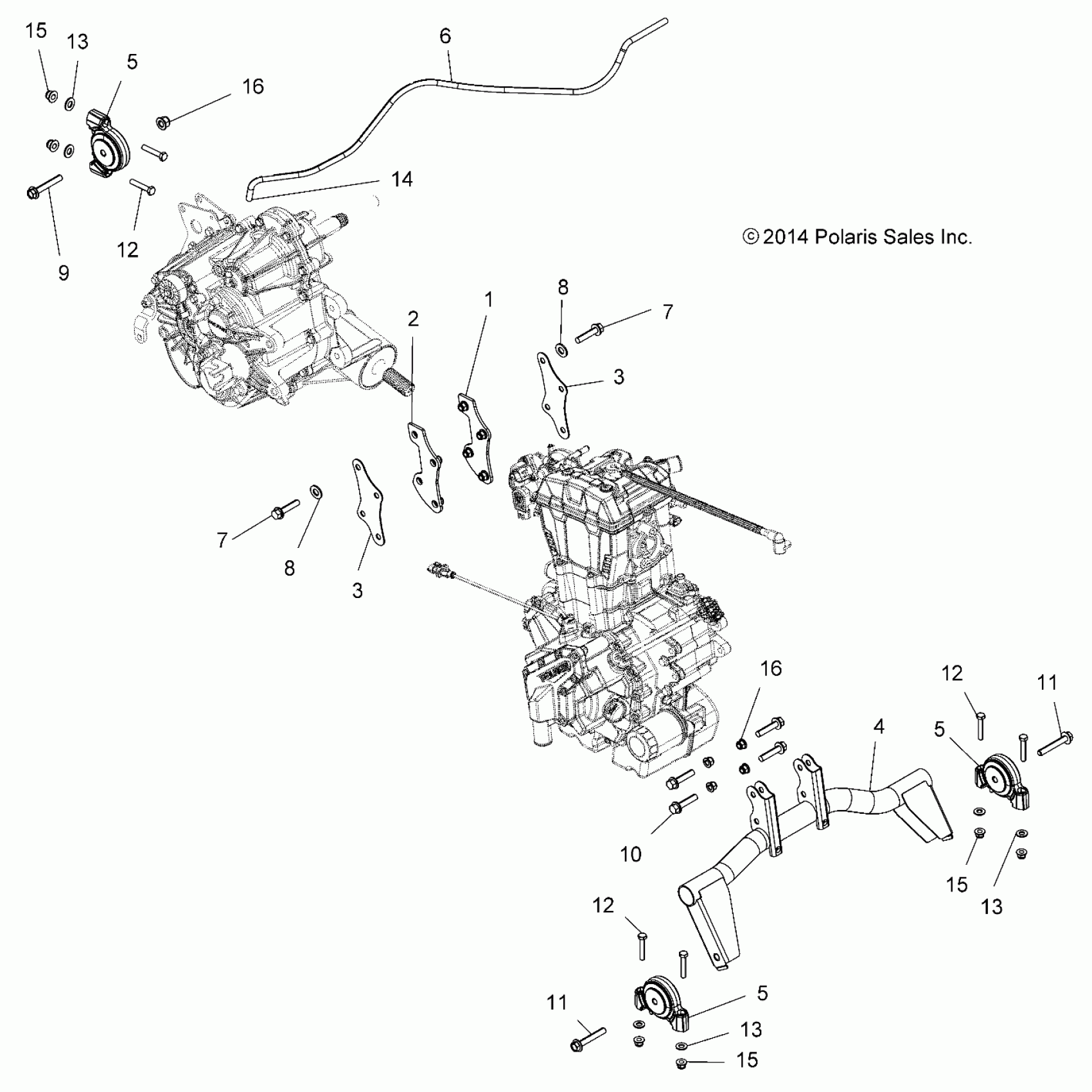

Polaris ACE 570 EFI (R09) - A16DAA57A5/A7/L2/E57A9/E57AM ENGINE, TRANSMISSION MOUNTING & LONG BLOCK - A16DAA57A5/A7/L2/E57A9/E57AM (49ATVENGINEMTG15ACE570) Diagram
#
Description
Price
-
KIT, ASM. LONG BLOCK [NOTE: THE LONG BLOCK ASSEMBLY CONTAINS A CRANKCASE, BALANCE SHAFT, CYLINDER HEAD, PISTON AND CRANKSHAFT ASSEMBLIES. ALSO INCLUDES THE SEALS, SPARK PLUG, VALVE COVER AND OIL PUM
2205747
$4,056.79
1
TRANSMISSION, INNER, LEFT
1018420
Unavailable
2
TRANSMISSION, INNER, RIGHT
1018421
Unavailable
3
BRKT-COUPLER,TRANS,OUTER
5255321
$10.39
3
BRKT-COUPLER,TRANS,OUTER
5255321
$10.39
4
MOUNT, ENGINE, FRONT, E-COAT
1021995-329
$131.99
5
MOUNT-ISOLATOR,DRIVELINE
1332955
$71.99
5
MOUNT-ISOLATOR,DRIVELINE
1332955
$71.99
5
MOUNT-ISOLATOR,DRIVELINE
1332955
$71.99
6
Line, Fuel
8450003-1525
Unavailable
7
SCREW
7518971
$6.39
7
SCREW
7518971
$6.39
8
WASHER
7556153
$1.99
8
WASHER
7556153
$1.99
9
BOLT
7518563
$3.19
10
SCREW
7519332
$5.59
11
BOLT
7518826
$4.79
11
BOLT
7518826
$4.79
12
SCREW
7519097
$1.59
12
SCREW
7519097
$1.59
12
SCREW
7519097
$1.59
13
Nut, Pal
7547030
$4.79
13
Nut, Pal
7547030
$4.79
13
Nut, Pal
7547030
$4.79
14
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
15
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
15
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
15
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
16
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
16
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
