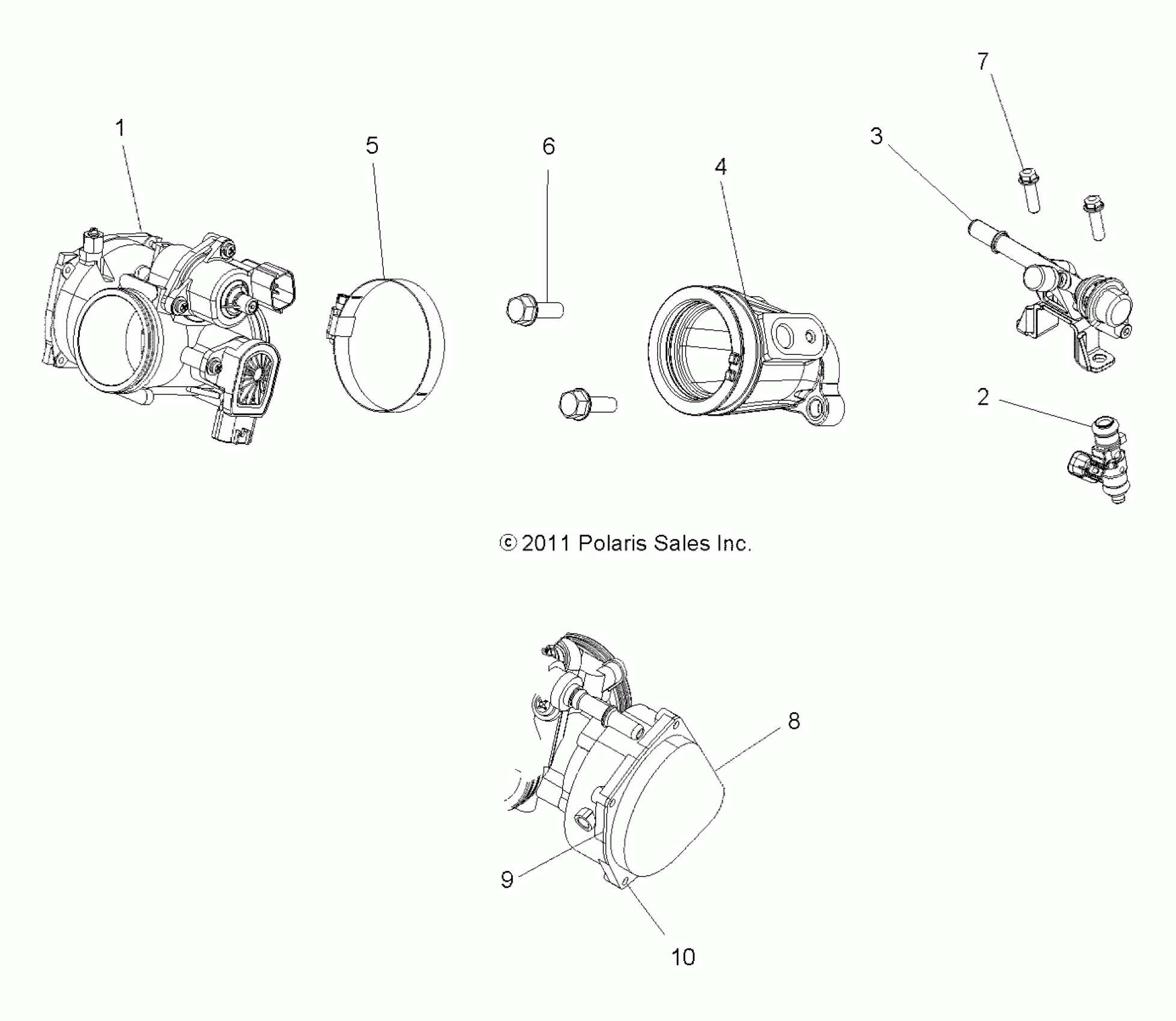

Polaris ACE 570 EFI (R09) - A16DAA57A5/A7/L2/E57A9/E57AM ENGINE, THROTTLE BODY and FUEL RAIL - A16DAA57A5/A7/L2/E57A9/E57AM (49RGRTHROTTLEBODY12RZR570) Diagram

#

Description
Price

1

ASM-THROTTLE BODY,SXS,MIKUNI

1205098

$459.99

2

INJECTOR, FUEL

2521068

$101.17

3

RAIL, FUEL

2521403

$130.16

4

ADAPTER, THROTTLE BODY

5414317

$94.99

5

CLAMP-WORM GEAR,44-70MM,HOSE

7081623

$3.17

6

SCREW

7516734

$3.17

7

SCREW

7518576

$3.17

8

COVER-THROTTLE BODY

5259059

$6.46

9

GASKET-TB HOUSING

5415104

$1.60

10

SCREW

7519292

$0.79
