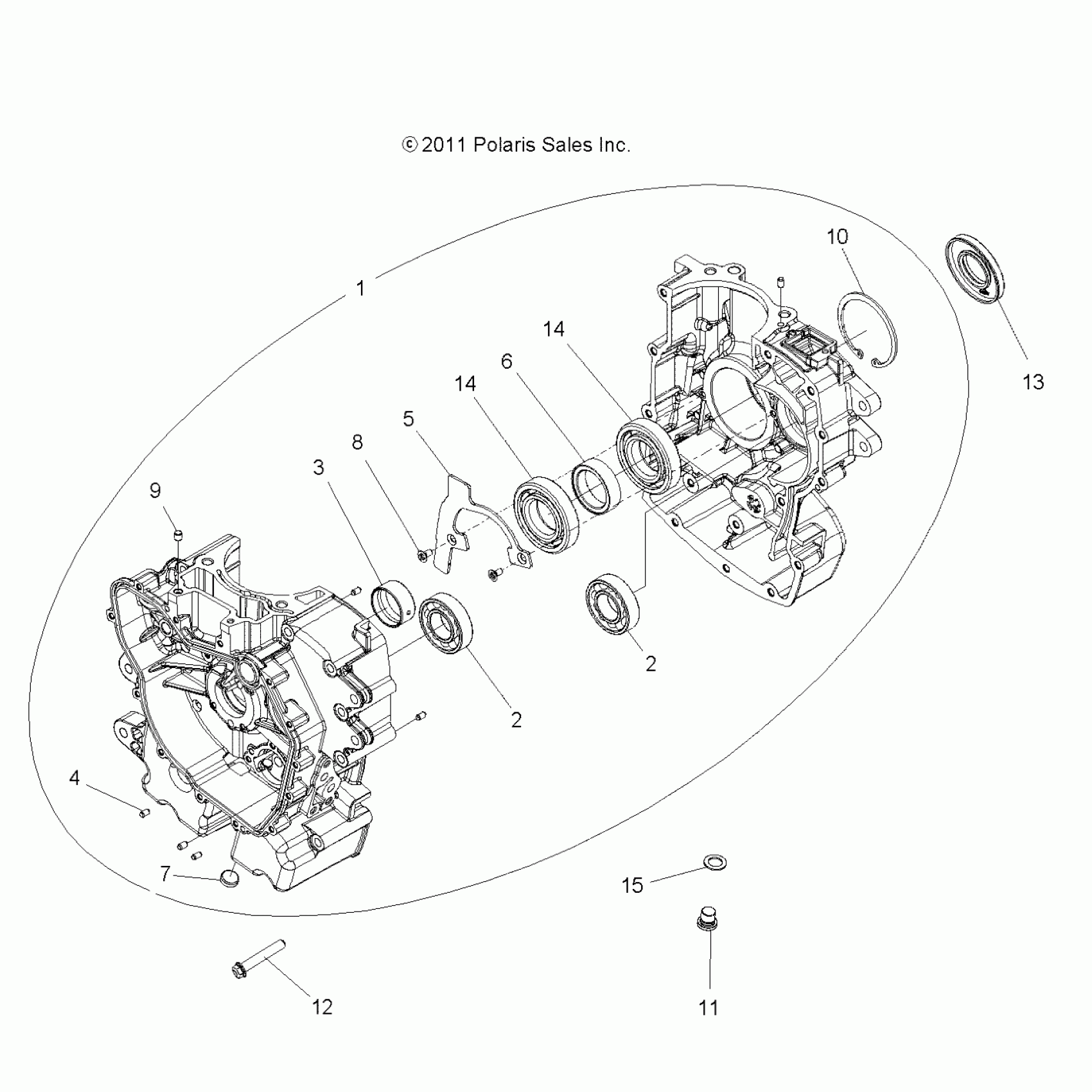

Polaris ACE 570 EFI (R09) - A16DAA57A5/A7/L2/E57A9/E57AM ENGINE, CRANKCASE - A16DAA57A5/A7/L2/E57A9/E57AM (49RGRCRANKCASE12RZR570) Diagram

#

Description
Price

1

KIT, CRANKCASE [INCL. 1-10,12,14]

2205248

$1,062.59

2

BEARING, BALL

3514426

$19.99

2

BEARING, BALL

3514426

$19.99

3

BEARING, MAIN

-------

Unavailable

4

PIN-DOWEL,M6X10

5136879

Unavailable

5

PLATE, BEARING RETAINER

5256603

$29.99

6

SPACER, BEARING

5137838

$39.99

7

PLUG-EXPANSION,19MM

7051530

$7.19

8

SCREW

7517598

$11.33

9

DWL-HOL,M8X8

7661977

$7.19

10

RING-SNAP,80X2.5

7710660

$3.99

11

PLUG, SOCKET

7052306

$15.37

12

SCREW

7520104

$5.59

13

SEAL-CRANKSHAFT

3610171

$47.99

14

BEARING, BALL

3514389

Unavailable

14

BEARING, BALL

3514389

Unavailable

15

WASHER, COPPER

5812232

$1.59
