- ACE 570 EFI (R09) - A16DAA57A5/A7/L2/E57A9/E57AM
ENGINE, COOLING SYSTEM - A16DAA57A5/A7/L2/E57A9/E57AM (49ATVCOOL15ACE570)

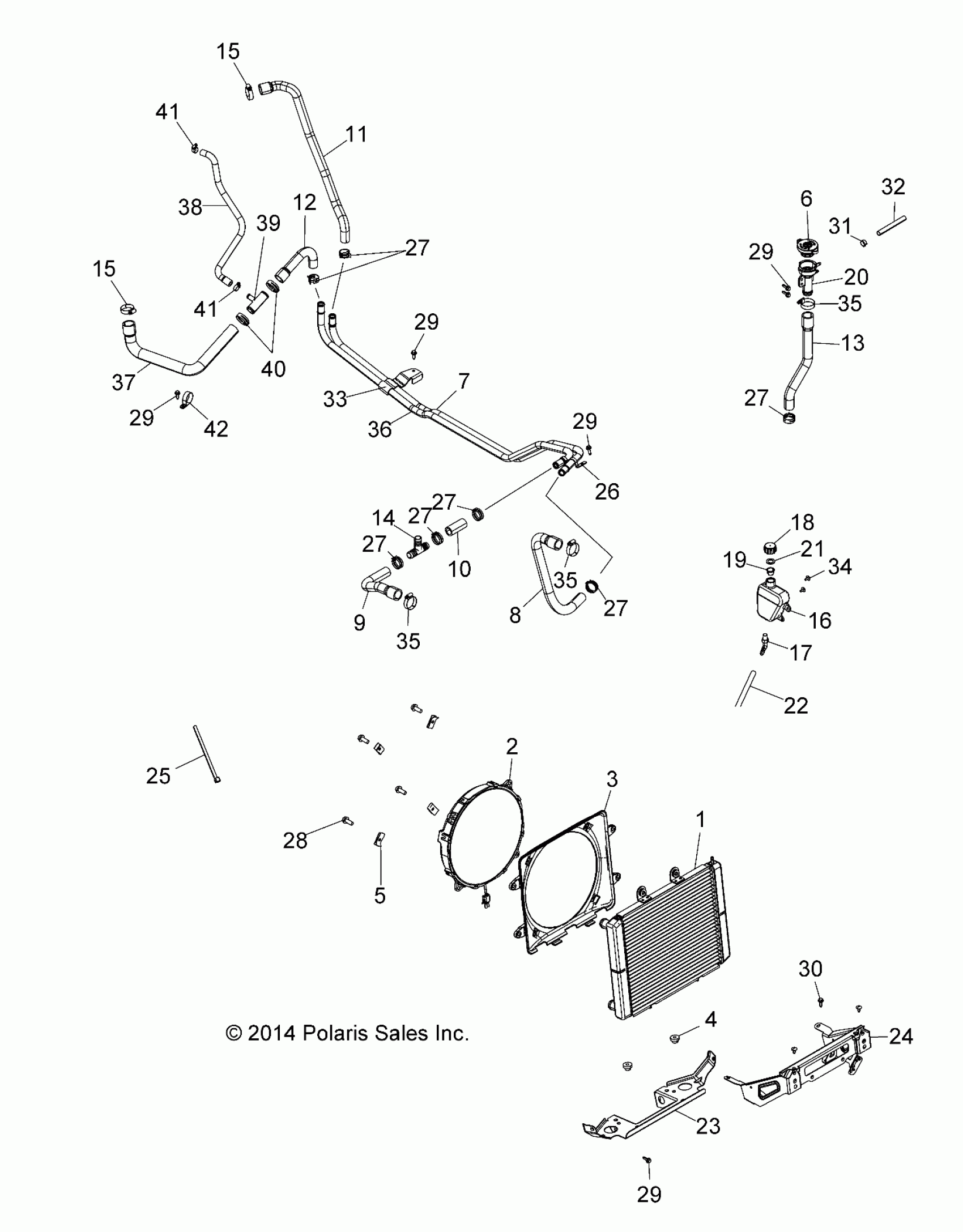

Polaris ACE 570 EFI (R09) - A16DAA57A5/A7/L2/E57A9/E57AM ENGINE, COOLING SYSTEM - A16DAA57A5/A7/L2/E57A9/E57AM (49ATVCOOL15ACE570) Diagram
#
1
Asm., Radiator, Core
1240444
Unavailable
2
ASM., FAN
2410413
$251.99
3
SHROUD, FAN
5437845
$47.99
4
BUSHING-MOUNT,LOWER RADIATOR
5410584
$5.59
5
CLIP-"U",M6.0X1.0
7547366
$5.99
6
CAP-PRESSURE
1240300
$40.46
7
TUBE, COOLANT, ENGINE OUT
5138389
Unavailable
8
HOSE, COOLANT, FLARED
5414632
$51.99
9
HOSE, COOLANT, FLARED
5414633
$39.99
10
HOSE, COOLANT, FRONT
5414634
$14.39
11
HOSE, COOLANT, REAR, OUT
5414707
Unavailable
12
HOSE, COOLANT, REAR, IN
5414708
$31.99
13
HOSE, COOLANT, FRONT
5414637
$35.99
14
TEE, CONNECTOR
7052093
$8.79
15
CLAMP, HOSE
7081174
$7.19
15
CLAMP, HOSE
7081174
$7.19
16
TANK-SURGE
5436936
$75.99
17
FITTING, BARBED
7052065
$7.19
18
CAP-OVER FLOW BOTTLE,DRILLED
5430743
$5.65
19
PLUG-CAP 9X(GREEN) FLEX TEMP
5433774
$5.65
20
FILLER, REMOTE, COOLANT
5439079
$27.99
21
GASKET-OVERFLOW CAP
5810279
$2.41
22
Line, Fuel
8450003-1525
Unavailable
23
MOUNT, RADIATOR, MATTE BLACK
5256171-458
$91.99
24
MOUNT, RADIATOR, UPPER, BLACK
5260310-329
$171.59
25
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
$2.39
26
CLAMP, COOLANT LINES
5258642
Unavailable
27
CLAMP, SPRINGBAND
7080841
$7.19
27
CLAMP, SPRINGBAND
7080841
$7.19
27
CLAMP, SPRINGBAND
7080841
$7.19
27
CLAMP, SPRINGBAND
7080841
$7.19
27
CLAMP, SPRINGBAND
7080841
$7.19
27
CLAMP, SPRINGBAND
7080841
$7.19
28
SCREW
7516822
$2.39
29
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
$1.49
29
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
$1.49
29
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
$1.49
29
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
$1.49
29
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
$1.49
30
SCREW
7519342
$1.86
31
HOSE CLAMP, RED
7080003
$1.49
32
HOSE
8450120-600
Unavailable
33
CLAMP, COOLANT LINES
5258169
$11.19
34
Screw
7512084
$1.49
35
Clamp, Springband
7080843
$3.99
35
Clamp, Springband
7080843
$3.99
35
Clamp, Springband
7080843
$3.99
36
TUBE, COOLANT, ENGINE IN
5138390
Unavailable
37
HOSE, COOLANT, INLET
5415129
$35.99
38
HOSE, COOLANT, BYPASS
5415447
$43.99
39
CONNECTOR, TEE
7052530
$5.59
40
SPRINGBAND, CLAMP
7080844
$10.39
41
CLAMP-HOSE,.875-SS
7080474
$8.40
41
CLAMP-HOSE,.875-SS
7080474
$8.40
42
CLAMP-HOSE,1.312 VINYL COATED
7080851
Unavailable
