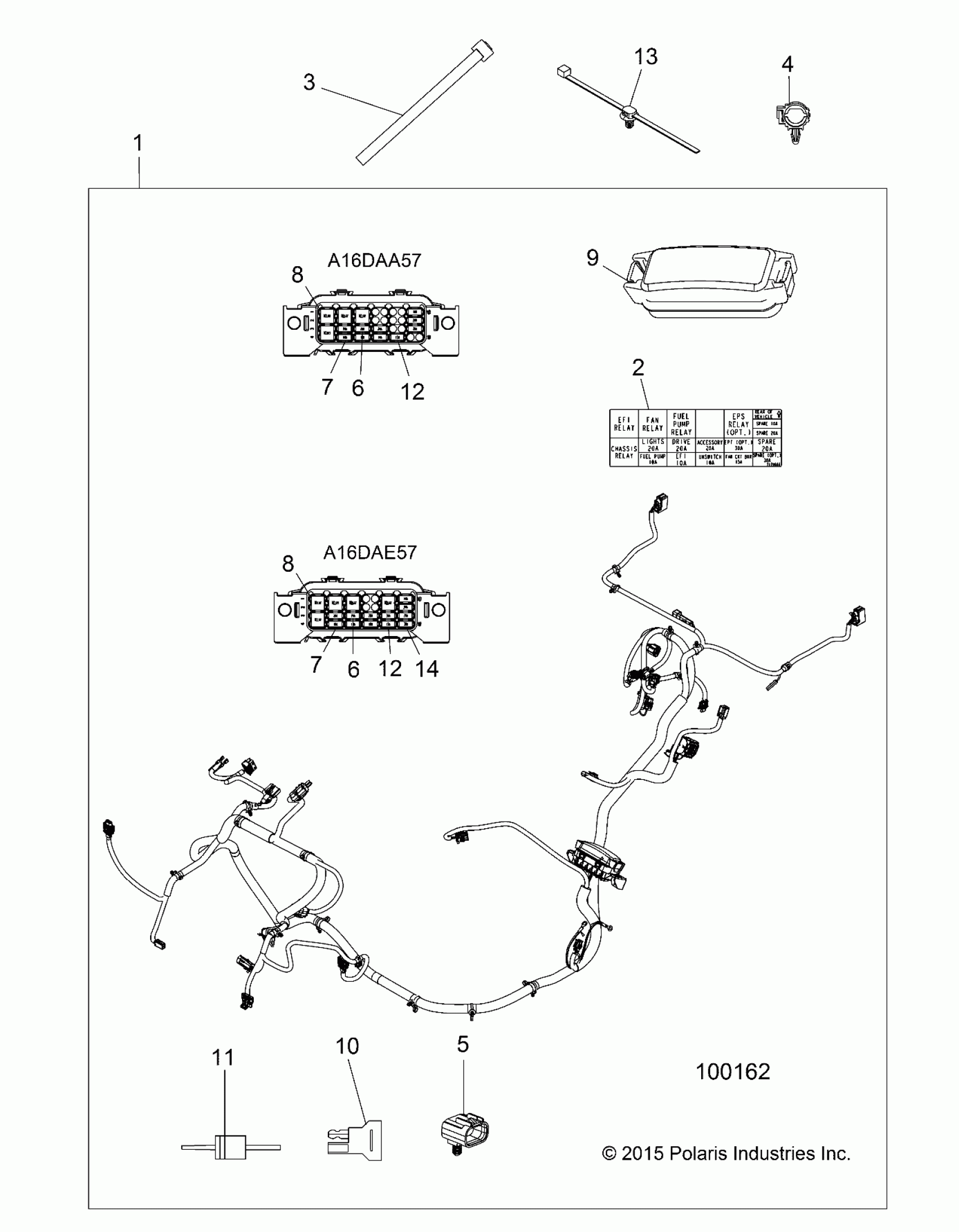

Polaris ACE 570 EFI (R09) - A16DAA57A5/A7/L2/E57A9/E57AM ELECTRICAL, WIRE HARNESS - A16DAA57A5/A7/L2/E57A9/E57AM (100162) Diagram

HARNESS, CHASSIS [A7][A5][L2]

2413250

$906.39

HARNESS, CHASSIS, EPS [A9][AM]

2413251

$923.99

LABEL, FUSE BOX

7179666

Unavailable

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

Clip, Rosebud

4020149

$6.39

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

FUSE-PARK,20 AMP

2434017

Unavailable

FUSE-PARK,20 AMP

2434017

Unavailable

FUSE-IGNITION,10 AMP

2434016

$4.79

FUSE-IGNITION,10 AMP

2434016

$4.79

RELAY-SPST,SERIES 303,SEALED [A7][A5][L2]

4011283

Unavailable

RELAY-SPST,SERIES 303,SEALED [A9][AM]

4011283

Unavailable

RELAY-SPST,SERIES 303,SEALED [A7][A5][L2]

4011283

Unavailable

RELAY-SPST,SERIES 303,SEALED [A9][AM]

4011283

Unavailable

COVER, FUSEBOX

4015011

$55.99

SEAL, FUSE CENTER

5415598

$8.79

DIODE, 6 AMP

2410000

$35.99

DIODE, 6 AMP W/TERMINALS

2411035

$51.99

BREAKER, 15 AMP

4011406

$63.99

BREAKER, 15 AMP

4011406

$63.99

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

FUSE-MAIN,30 AMP [A9][AM]

2434015

$7.19
